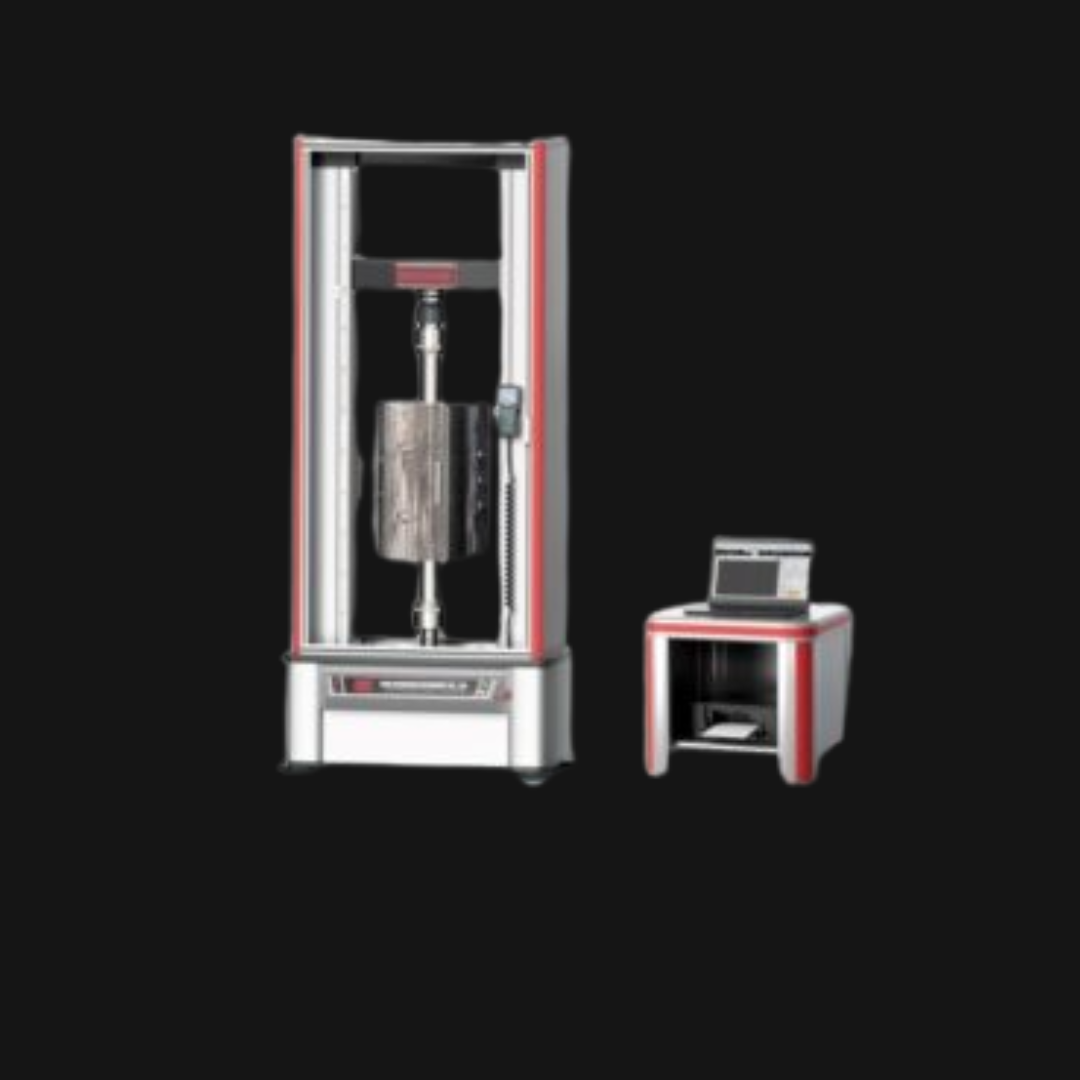

WDW-H High Temperature Tensile Testing Machine (300～1200℃)
Specificatios
| Model | WDW-10, 20H | WDW-50 | WDW-100 | WDW-200,300 |
| Max. Load(kN) | 10,20 | 30,50 | 100 | 200,300 |
| Control method | Computer control | |||
| Load accuracy | Class 0.5 | |||
| Load range | 0.2%～100%F·S | |||
| Resolution of displacement | 0.01mm | |||
| Test speed(mm/min) | 0.05-1000 | 0.05-1000 | 0.05-500 | 0.05-500 |
| Tensile space(mm) | 800 | 700 | 700 | 550 |
| Compression space(mm) | 800 | 700 | 700 | 550 |
| Test width | 400 | 500 | 550 | 600 |
| Temperature ranage | 300～1200℃(furnac) | |||
| Power supply | AC220V±10%,50Hz/60Hz(can be customized) | |||
| Grips | according to customer’s requirement | |||
High Temperature Electric Furnace
Temperature range: 200-1100℃/ 1200℃/1400℃
Heating method:
Three sections of electric wire heating, Segment control
Thermometric Element：
K Type Temperature Measuring Thermocouple
Dimension：Φ300*420mm
Heath Inner Diameter：Φ80mm*360mm
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
