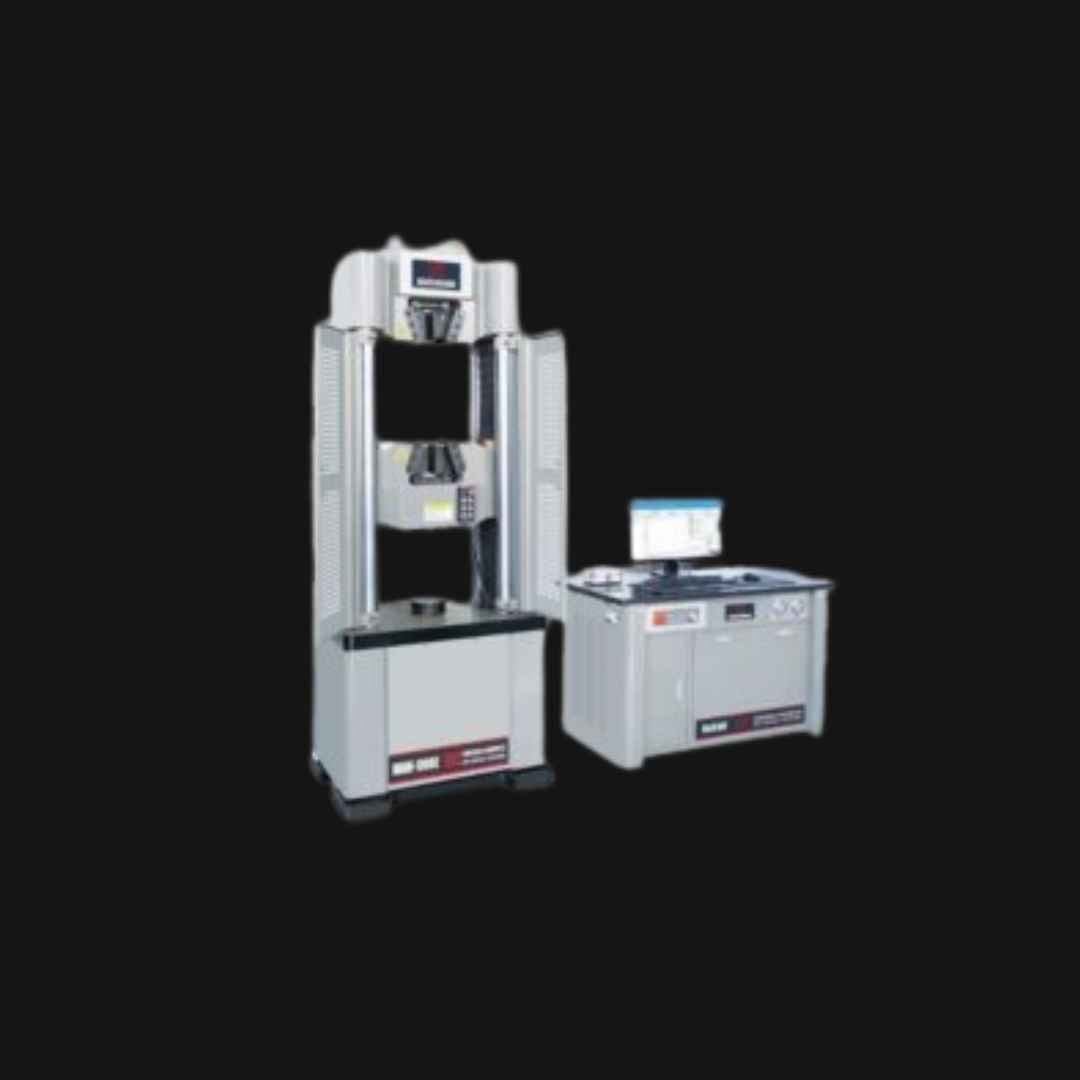

WAW-1000D 1000KN 1000Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine
Application
This machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.
Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications
| Model | WAW-1000D |
| Structure | 6 Column (Four Columns Two Ball Screws) |
| Max. Load(KN) | 1000 |
| Load Accuracy | ≤± 1%/ ≤± 0.5% |
| Load Range | 2%~100%FS/ / 1％～100％ |
| Displacement Resolution | 0.01mm |
| Max. Tension Test Space(mm) | 950 |
| Max.Compression Test Space(mm) | 700 |
| Column Effective Spacing(mm) | 560 |
| Max. Piston Stroke(mm) | 250 |
| Clamping Method | Hydraulic Clamping |
| Round Specimen Clamping Range(mm) | Φ13-Φ26,Φ26-Φ45 |
| Flat Specimen Clamping Range(mm) | 0-20 |
| Flat Specimen Clamping Width(mm) | 100*100 |
| Power Supply | 3-phase,AC380V, 50Hz  (Can Be Customized) |
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
Â
