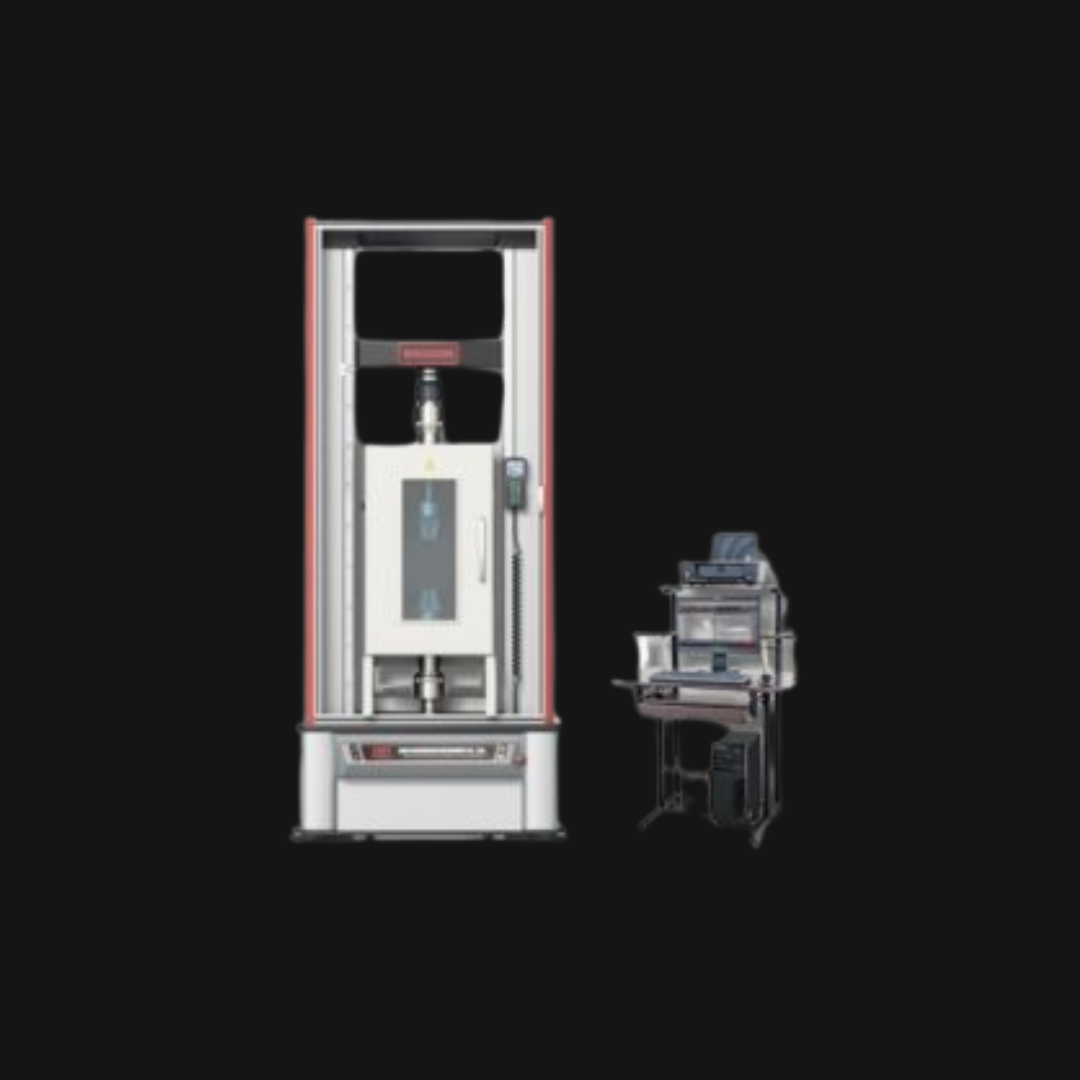

Multi-station high and low temperature tensile testing machine
Main technical parameter about the high temperature part:
| Model | WDW-10GD | WDW-20GD | WDW-30GD | WDW-50GD | WDW-100GD |
| Max. Load(kN) | 10 | 20 | 30 | 50 | 100 |
| Load accuracy | Class 0.5 | ||||
| Load range | 0.2%～100%F·S | ||||
| Load resolution | 1/500000 | ||||
| Resolution of deformation | 0.04um | ||||
| Accuracy of displacement | Within±0.5%of indicating load | ||||
| Resolution of displacement | 0.01mm | ||||
| Test speed(mm/min) | 0.05-1000Â stepless arbitrary setting | ||||
| Speed accuracy | within ±1% / ±0.5% of set speed | ||||
| E-Tensile space(mm) | 670 | 670 | 770 | 770 | 650 |
| E-Compression space(mm) | 900 | 900 | 900 | 1000 | 1000 |
| D-Test width(mm) | 450 | 450 | 450 | 450 | 550 |
| F-Beam travel distance(mm) | 1000 | 1000 | 1100 | 1100 | 1100 |
| Power supply | AC220V±10%，50Hz/60Hz (can be customized) | ||||
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
Â
Related products
Fabric Tensile strength tester
Fabric Tensile strength tester is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Fabric Tensile strength tester Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
HST-EDG Series High Temperature Tensile Testing Machine(-60-300℃）
Table Type 5kN 10kN 20kN computer control electronic universal testing Machine with pneumatic side wedge grip
WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)
WDS Rubber Tensile Testing Machine
WDS Series Double Column Digital Display Universal Testing Machine(10KN,20KN,50KN,100KN)
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
WDW-ET Touch Screen Electromechanical Universal testing machine
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
