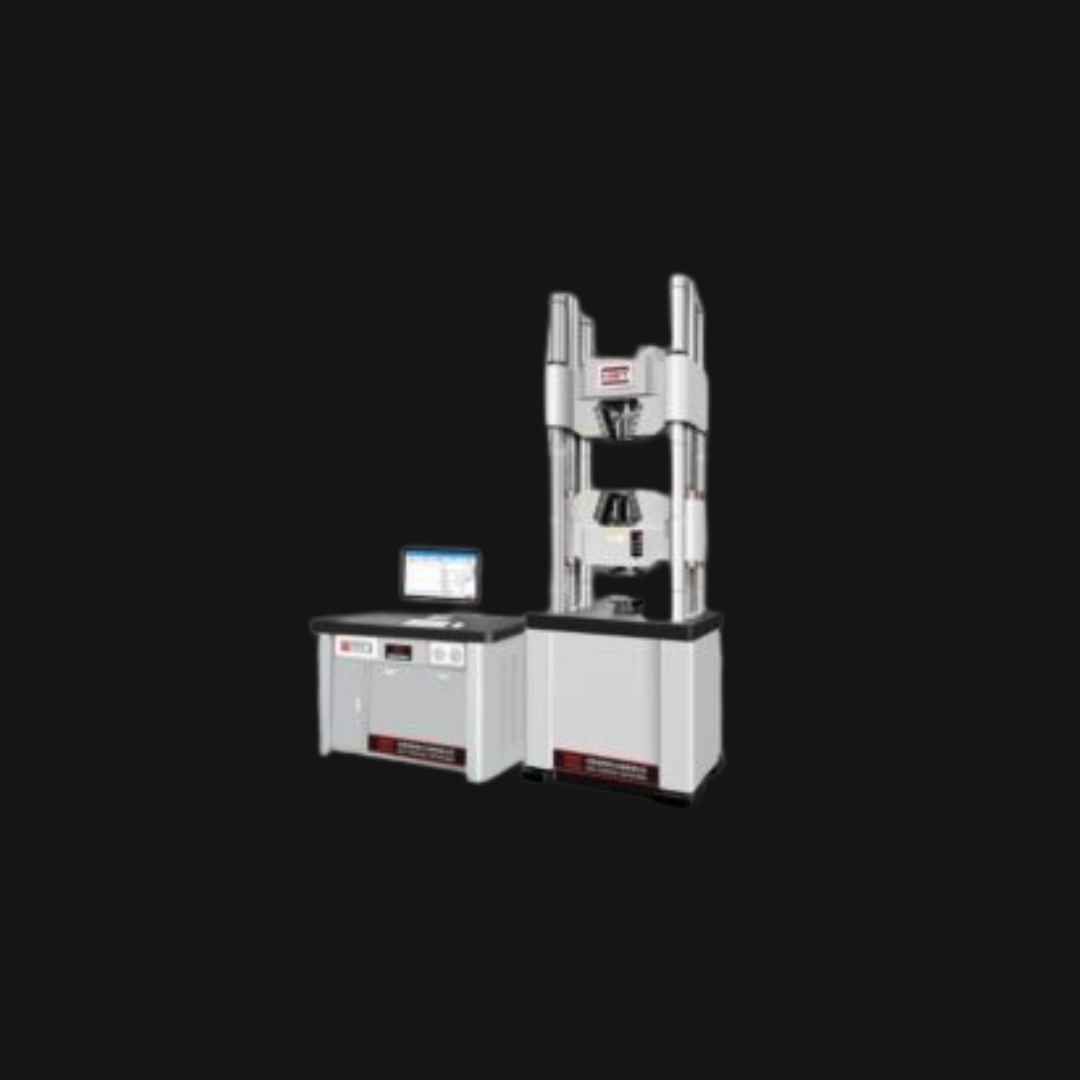

WAW-2000D 2000kN 200Ton Computer Control Electro-hydraulic Servo Universal Testing Machine
Specifications:
| MODEL | WAW-2000D |
| Max. Load(kN) | 2000 |
| Load accuracy | Class 0.5 |
| Measuring range | 2％～100％ |
| Displacement Resolution | 0.01mm |
| Load resolution | Capacity/500,000 |
| Tensile space(mm) | 850 |
| Compression space(mm) | 850 |
| Distance berween two columns | 800 |
| Piston stroke(mm) | 250 |
| Clamping Method | Hydraulic Automatic Clamp |
| Power Supply | 3-phase, AC380V, 50Hz   (Can Be Customized) |
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
Â
Related products
HST-EDG Series High Temperature Tensile Testing Machine(-60-300℃）
Mesin Uji Tarik Logam Universal Elektronik 200/300KN dengan Hydraulic Flat Push Grip
WAW-1000D 1000KN 1000Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine
Application
This machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.
Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)
WAW-Q Electro-hydraulic Servo Rebar Tension Testing Machine(600KN,1000KN)
WDW-E 500KN, 600KN, 50ToN, 60Ton Electronic Universal Testing Machine
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
