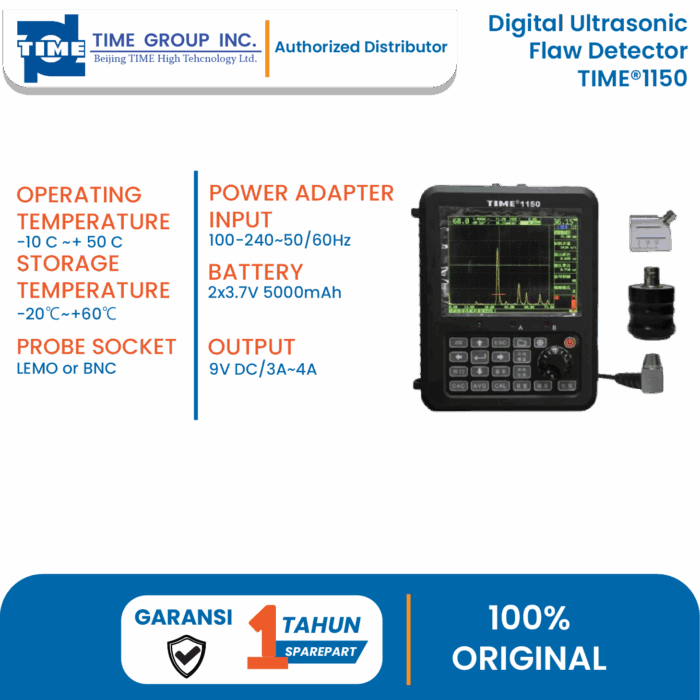

Digital Ultrasonic Flaw Detector TIMEĀ®1150
TIME1150 adalah detektor alat uji cacat material ultrasonik digital terbaik yang diproduksi oleh TIME Group Inc.
Fitur
āĀ 5,7 inci, layar TFT warna VGA dan konektor probe LEMO/BNC.
āĀ Rentang pengukuran lebar dari 1-10000 mm.
āĀ Linieritas horizontal dan vertikal yang presisi dan stabil dengan linearitas horizontal 0,1% dan linearitas vertikal 2%.
āĀ Kurva DAC, AVG, DGS dan gema cacat membantu mengevaluasi perhitungan setara cacat.
āĀ Tampilan simultan dari bentuk gelombang A-scan dan B-scan resolusi tinggi.
āĀ Empat cara untuk menyajikan bentuk gelombang: setengah gelombang positif, setengah gelombang negatif, gelombang penuh dan frekuensi radio.
āĀ Penyesuaian penguatan otomatis, penghitungan setara cacat, dan fungsi memori puncak.
āĀ Dua pengaturan gerbang individu dan fungsi yang mengkhawatirkan.
āĀ Pengukuran gerbang mencakup amplitudo gema, jalur pancaran, kedalaman, proyeksi, dan sebagainya.
āĀ Pembekuan bentuk gelombang tersediaļ¼ secara penuh, puncak, komparatif, dan amplop.
āĀ 50 saluran pendeteksi tersedia dengan parameter pendeteksian terpisah dan kurva DAC (Distance Amplitude Correction) di setiap saluran.
āĀ Generator pulsa gelombang persegi kinerja tinggi yang dapat disesuaikan
āĀ Tiga mode pendeteksian (probe tunggal, probe kristal ganda dan transmisi) dengan fungsi kalibrasi otomatis.
āĀ Terhubung ke PC melalui antarmuka USB dengan perangkat lunak canggih untuk analisis dan manajemen data.
āĀ Memori super besar, 1000 bentuk gelombang, dan diagram bentuk gelombang dinamis bingkai 4X2000 dapat disimpan, dengan fungsi penyimpanan, pembayaran, dan peninjauan saluran, bentuk gelombang, catatan dinamis.
āĀ Laporan deteksi cacat dapat dicetak.
| Pengiriman Standar | |
| Unit utama | 1 |
| baterai lithium | 2 |
| Adaptor daya (3A/9V) | 1 |
| Kabel penghubung LEMO-Q9 Probe | 1 |
| Kabel penghubung LEMO-Q6 Probe | 1 |
| Probe sinar lurus (Ļ20 2.5MHz) | 1 |
| Probe sinar sudut (Ļ20 2.5MHz) | 1 |
| Agen kopling | 1 |
| sabuk kalung | 1 |
| sabuk pergelangan tangan | 1 |
| Sertifikat Waktu | 1 |
| Kartu garansi | 1 |
| Instruksi manual | 1 |
Specifications
|
Operating temperature |
-10ā~+50ā |
|
Storage temperature |
-20ā~+60ā |
|
Language |
English/Chinese/Spanish selectable |
|
Probe socket |
LEMO or BNC |
|
Battery (mAh) |
2×3.7V 5000mAh |
|
Battery working time |
>8h |
|
Charging time (h) |
<8h |
|
Power adapter Input |
100-240~50/60Hz |
|
Output |
9V DC/3A~4A |
|
LCD |
Color transmission TFT, 640×480 |
|
Dimension (mm) |
177X255X51 |
|
Weight (g) |
1200 |
| Basic |
Receiver |
||
| Measuring unit |
mm/inch/Ī¼s |
Gain (dB) |
0~110 |
| Scanning range (mm) |
0-10000 |
Bandwidth (MHz) |
0.5~15 |
| Sound velocity (m/s) |
600-16000 |
Rectify |
Positive half wave, negative half wave, full and RF |
| P-delay (Ī¼s) |
-1.000~750.000 |
Vertical linearity accuracy |
Ā±2% |
| D-delay (Ī¼s) |
-20~+3400 |
Amplifier resolution (dB) |
Ā±1 |
| Test mode |
Pulse-echo, dual and through transmission |
Rejection (1%) |
Linear, 0~80% of the full screen |
| Scanning mode |
A scan and B scan, displaying both simultaneously |
Sampling frequency (MHz) |
80 |
| Pulse generator |
Crosstalk rejection (dB) |
ā„80 |
|
| Pulser (V) |
Square pulse |
Dead zone (Ī¼s) |
ā¤10 (related with transmitting) |
| Transmitting voltage |
100~400(V) variable in steps of 10V |
Dynamic range (dB) |
ā„40 |
| Transmitting pulse width (ns) |
75/100~500 variable in steps of 50ns |
Instant resolution (dB) |
ā„32 |
| Damping (Ī©) |
50/100/200/500 |
Time base linearity |
<Ā±0.2% full screen |
| Pulse repetitionĀ frequency (Hz) |
10~1000 |
Sensitivity leavings (dB) |
ā„62 |
|
Measurements and others |
Data management, communication and print |
||
|
Gate |
2 indepent gates |
Data storage |
50 channels |
|
Testing position |
Edge, Peak value |
1000 wave images (including 980 A scan images and 20 B scan images) |
|
|
Gate measurements |
Echo amplitude, Sound path, depth, projection etc. |
4×2000 dynamic wave image |
|
|
Freeze |
Freeze waveform, peak value, comparative and envelope |
Store, review or replay the channels, waves |
|
|
AVG equivalent calculate |
Calculate the flaw equivalent according to the flaw echo and AVG curve |
All the data can be stored to PC or flash disk |
|
|
DAC flaw evaluating |
Make flaw evaluation according to flaw echo and DAC curve |
Communication |
Communicate with PC via USB interface |
|
Gate logic |
Off, measurement, gate positive wave alarm, gate negative wave alarm |
Printing |
Print report |
|
Gate alarm |
off, anytime, hold for 0.2s, 0.5s, 1s and 2s, lock |
Outout port |
|
|
Alarm |
on/off |
USB OTG port |
USB 2.0 device connected with PC |
