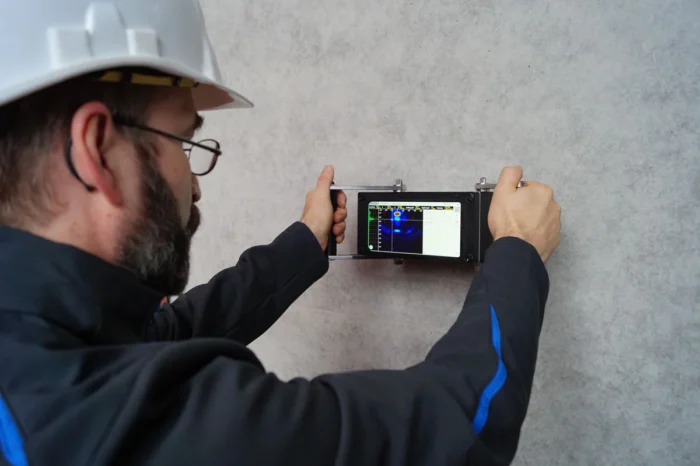

Alat Pendeteksi Rebar dan Kecacatan Beton A1040 MIRA 3D
Alat uji kualitas struktur beton dengan ultrasonic tomograf : Dapat mengukur ketebalan beton, Mendeteksi lokasi rebar, dan Deteksi kecacatan Beton.

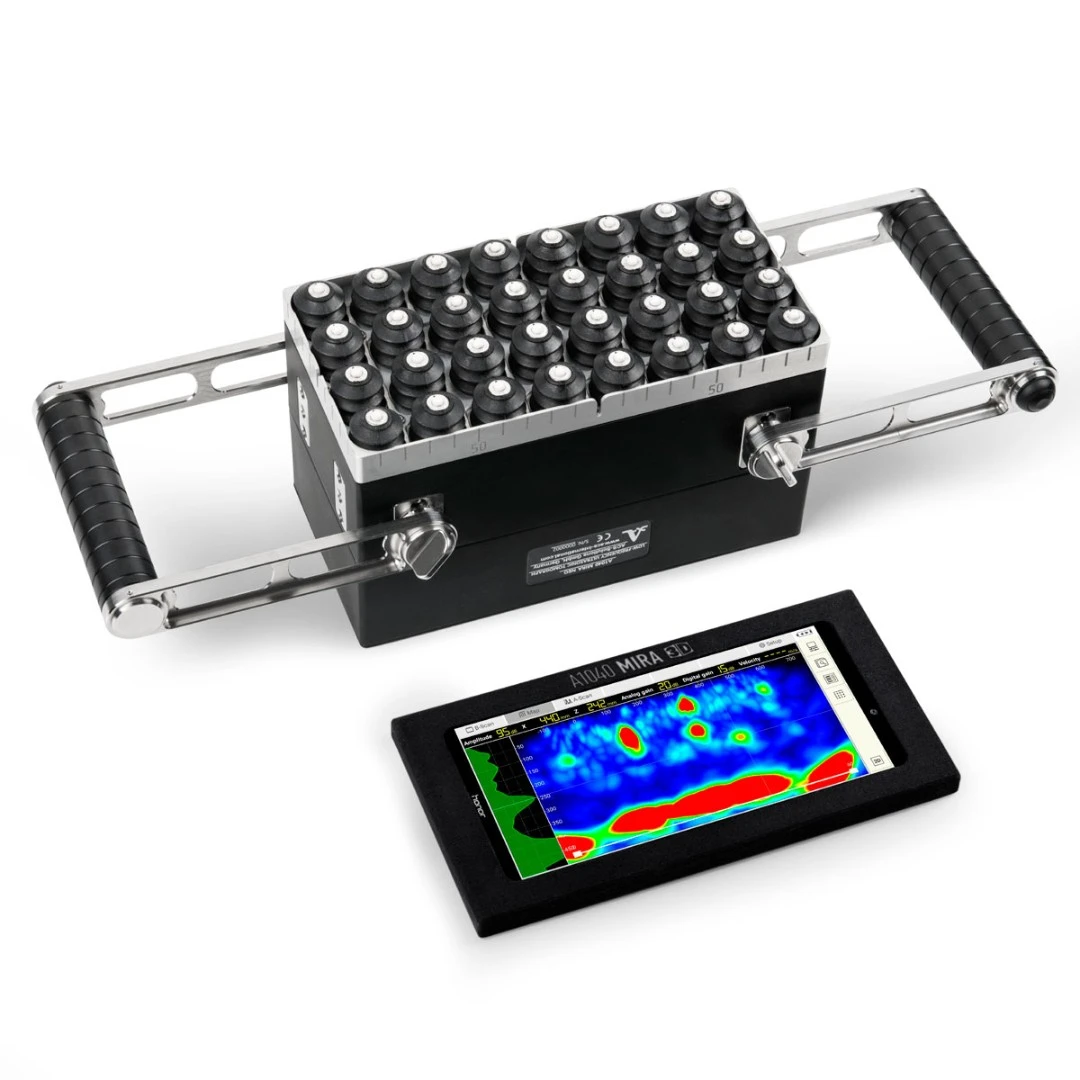

Alat pendeteksi rebar dan flaw detector A1040 MIRA 3D menggunakan sistem low-frequency ultrasonic tomograph. Sangat cocok untuk mengevaluasi struktur beton secara manual dan otomatis. Dengan teknologi novel A-DPC® sensor, MIRA memberikan kedalaman penetrasi, sensitivitas evaluasi, dan imaging resolution dengan menerapkan FMC / TFM tiga dimensi di setiap posisi instrumen.
Software MIRA NEO DESKTOP yang berfungsi untuk kontrol unit jarak jauh, visualisasi 3D, dan analisis big data. Software ini menjadi bagian penting dari instrumen. Sudah termasuk dalam set.
Ultrasonic tomoraph A1040 MIRA adalah solusi terbaik untuk pengujian ultrasonik pada beton, beton bertulang, batu, batu komposit, keramik, kayu, epoxy, dan material tahan panas.
Fitur utama pada instrumen ini yaitu :
- Mendeteksi lokasi / posisi rebar dan elemen lain (tendon duct, jangkar, pipa berongga, kabel)
- Deteksi rongga material, estimasi posisi dan ukurannya dalam 3D: rongga, inklusi, honeycomb, retakan
- Pengukuran ketebalan dengan akses satu sisi.
- Deteksi cacat grouting pada saluran tendon dan coupler grouting
- evaluasi terhadap firproof stones (batu tahan api)
| Parameter | Value |
| Instrument type | Multi-channel ultrasonic pulse echo tomograph with built-in matrix transducer array |
| Number of channels | 32 (extendable to 64, 96 etc.) |
| Number of independent elements in the matrix transducer aperture | 32 (extendable to 64, 96 etc.) |
| Type of the ultrasonic transducers | Active dry point contact (A-DPC) transducers with ceramic wear proof tips and integrated pulser-receiver electronics |
| Bandwidth | from 10 to 100 kHz |
| Material sound velocity range | from 1.000 to 4.000 m/s (from 40 to 157 inches / s) |
| Maximum penetration depth in reinforced concrete | up to 3.000 mm (118 inch) |
| Power supply | Exchangeable Li-Ion battery 18650 |
| Battery operation time | up to 10 hours |
| Maximum dimensions of one unit without handles: | 200x125x100 mm (7,9 x 4,9 x 3,9 inch) |
| Maximum weight of the electronic unit with the batteries, handles and tablet PC mounted | 3.5 kg |
| Operating conditions: | |
| air temperature range | from -10 to + 50 С (from 14 to 122F) |
| relative air humidity at +35С / 95F, max. | 95 % |
| Average service life, min. | 5 years |

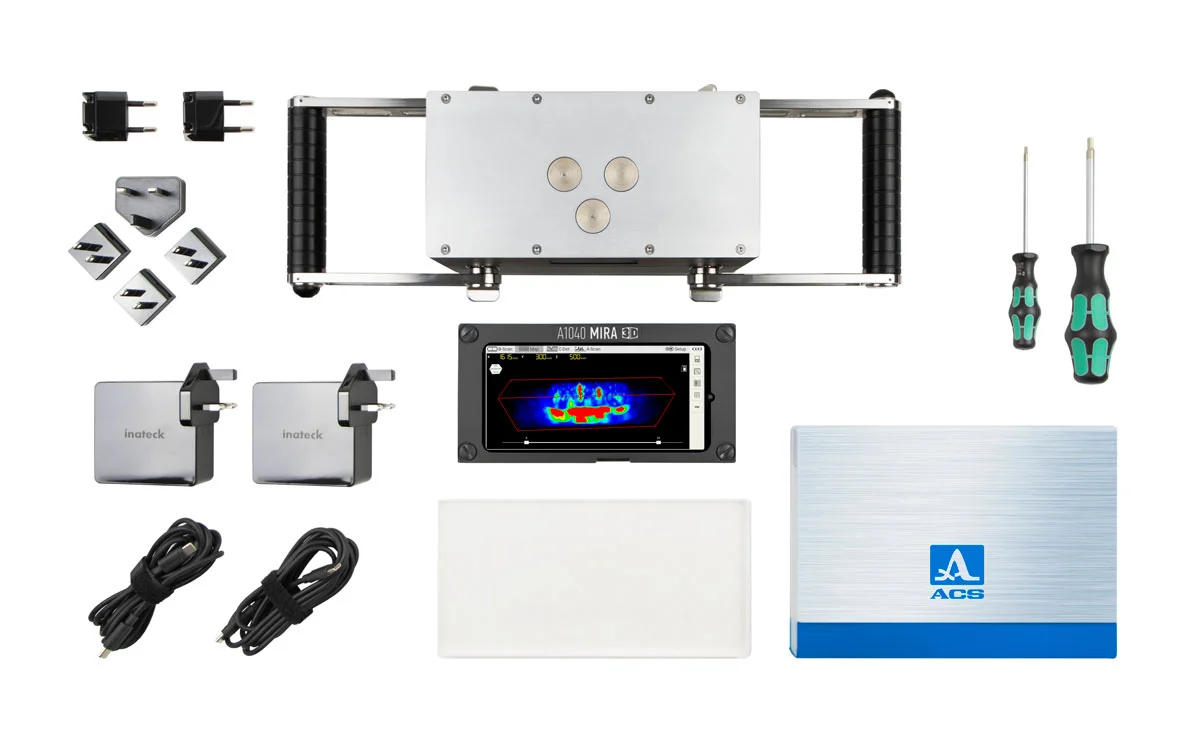

| Item | Quantity, pcs. |
| Electronic unit A1040 MIRA 3D with 32 x A-DPC® transducers | 1 |
| Tablet-PC with protective case | 1 |
| Reference block for regular functional tests | 1 |
| Exchangeable Li-Ion battery 18650 | 6 |
| Type C power supply | 2 |
| Data cable USB Type C | 2 |
| INTROVIEW® Pro Software with 12 Months Update & Support service | 1 |

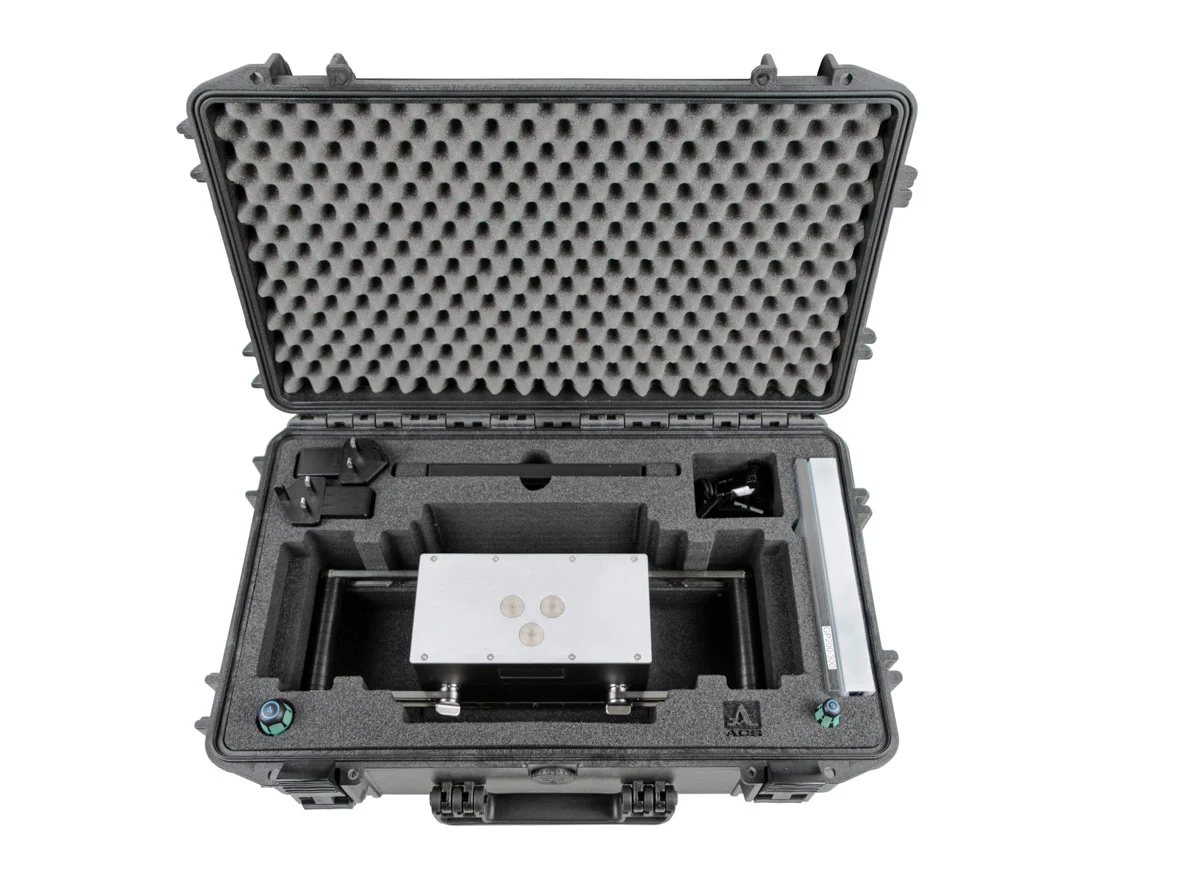

| Hard case | 1 |
| Warranty certificate | 1 |
| Operating Manual | 1 |
| Screwdriver for battery exchange | 2 |
