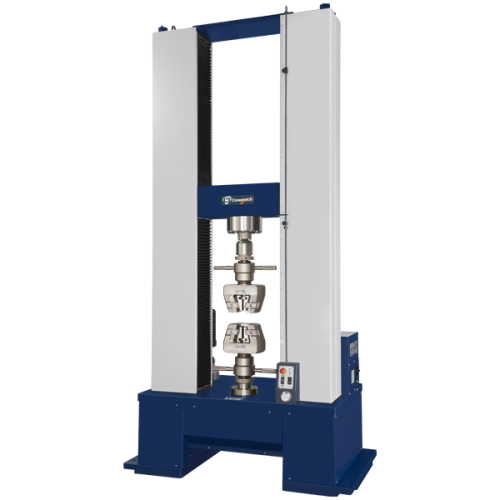

Alat Uji Universal Product Serial : QC-50AM2F & 500M2F (500 ~ 600kN)QC-50AM2F & 500M2F Computerized Tensile (compression) testing machine Confirm to ISO 7500-1, JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2,BS1610,GB228 Standard
Model serial ini mampu melakukan uji kapasitas di atas 500KN. Model ini dirancang untuk uji tarik, uji kompresi, uji tekuk, dan segala jenis pengujian. UTM dengan motor servo torsi tinggi dan kekakuan tinggi, kekuatan tinggi memberikan gerak dan tenaga. Secara efektif mengurangi biaya perawatan, juga memperpanjang umur mesin. Sangat cocok untuk industri Logam dan Arsitektur. Juga menyediakan lingkungan pengujian yang tenang dan hasil pengujian akurasi tinggi.
Gunakan perangkat lunak pengujian M2 spesialis Cometech yang menggunakan komputer Windows 7/8 Person. Dapat melakukan uji tarik, uji kompresi, uji tekuk dan segala jenis pengujian. Perangkat lunak dengan multi-bahasa ini sangat mudah dioperasikan. Ia juga memiliki semua jenis satuan metrik, grafik waktu nyata dan juga menyediakan data uji analisis lengkap yang tes akhir dapat melakukan berbagai analisis material.
Standar dilengkapi dengan roda tangan canggih yang posisinya dapat presisi. Sinyal eksternal dapat menghubungkan fungsi sinyal uji eksternal untuk memperluas ke mode pengoperasian alat berat.
Industri：Plastik、 Tekstil、Logam dan Arsitektur.
Spesifikasi
Aksesori Opsional
Fungsi Perangkat Lunak
Antarmuka Perangkat Lunak
Spesifikasi
| Model | QC-50AM2F | QC-500M2F |
|---|---|---|
| Max. Capacity | 600kN | 500kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Force Resolution | 1/100,000 (31 bits) | |
| Load cell accuracy | ±1% under the range 2-100% of the load cell capacity (There are optional load cells with higher accuracy) |
|
| Test stroke(w/o grip) | 1500mm | |
| Stroke resolution | 0.0001mm | |
| Space between columns | 550mm | |
| Speed accuracy | ±1% | |
| Speed range | High speed mode | |
| 0.02 ~ 330 mm/min | ||
| Low speed mode | ||
| 0.0002~2 mm/min | ||
| PC-Port | RJ45(TCP/IP) | |
| Data sampling rate | 1200Hz (Max.) | |
| Hardware safety protection | upper limit, lower limit, emergency stop button | |
| Motor type | Servo Motor | |
| Feature | ※Automatic reading of load cell feature information ※Automatic reading ofdisplacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
|
| Power Supply | 3 phase 200V-240 V, 5A | |
| Dimension of Machine | 155 x 85 x 295 cm | |
| Weight of Machine | Around 2350kg | |
Aksesori Opsional
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell
(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
 |
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer Suitable for samples with over 20% elongation |
|||
Fungsi Perangkat Lunak
1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection
15.Variety of test actions, ex.reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
16.Modularization of specimen setting, providing easy to set specimen.
17.Modularization of test conditions to reduce artificial settingnegligence and error.
18.Key data capture, can set the upper and lower limits of test data specifications
19.Support multiple sets of I / O signals, increase testing mechanism
Antarmuka Perangkat Lunak
| (1)Software interface | (2)Report |
 |
 |
*Cometech reserves ultimate modification right of product specification.
