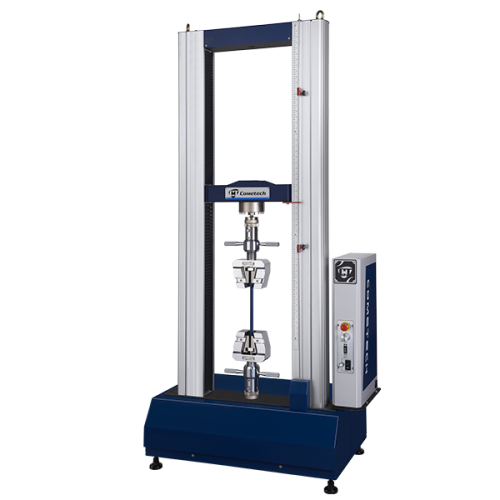

Alat Uji Universal Product Serial : QC-505M1F (50kN)Computerized Tensile (compression) testing machine Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
Mesin tipe meja QC-508M2F memiliki kapasitas hingga 2kN. Ini menawarkan lingkungan pengujian yang tenang dan hasil pengujian yang akurat. Pada mode stand-alone, dapat melakukan uji tarik, uji kompresi, uji tekuk dan sebagainya. Sistem transmisi memerlukan sedikit perawatan bahkan setelah digunakan beberapa saat. Roda tangan yang presisi mengontrol pergerakan genggaman dalam skala kecil. Dengan alat ini, pengguna dapat menggerakkan genggaman ke posisi yang tepat. Sinyal gaya dipancarkan dan diterima secara instan untuk mencegah kelebihan beban. Port dicadangkan untuk sinyal yang berada di luar mesin untuk pengoperasian yang lebih fleksibel.
Industri: Karet, Plastik, Kertas, Tekstil, Logam, Kayu, Tape, Elektron, Paket, Medis, Konstruksi
Spesifikasi
Aksesori Opsional
Fungsi Software
Antarmuka Perangkat Lunak
Spesifikasi
| Model | QC-505M1F |
|---|---|
| Max. capacity | 50 kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
| Force Resolution | 1/50,000 (31 bits) |
| Load cell accuracy | ±1% under the range 2-100% of the load cell capacity (There are optional load cells with higher accuracy) |
| Test stroke(w/o grip) | 1100mm |
| Stroke resolution | 0.0001mm |
| Space between columns | 420mm(550mm、680mm、800mm Optional) |
| Speed range | 0.2~ 600mm/min（Can be set by computer digital） |
| PC-Port | RJ45(TCP/IP)[Software Optional] |
| Data sampling rate | Max. 400Hz |
| Hardware safety protection | upper limit, lower limit, emergency stop button |
| Motor type | Servo Motor |
| Frame Stiffness | 120 kN/mm |
| Feature | ※Automatic reading of load cell feature information ※Automatic reading ofdisplacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
| Power Supply | Single phase 200 ~ 240VAC，8A |
| Dimension of Machine | 90× 60 × 195 cm |
| Weight of Machine | 280 kg |
Aksesori Opsional
(1) Displayer
1. Adopted with 7- inch of TFT Color touch screen.
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time.
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7. Various machine shutdown conditions setting (force, displacement, time, elongation).
8. Can be restored to the original factory state.
9. Unit selection can be Metric unit, Imperial units.
10. Over-travel, overload protection and overtime machine stop.
11. Can store up to 50 data, USB storage data function.
12. Support multiple sets of signal sources.
(2) Extensometer
|
|
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer Suitable for samples with over 20% elongation |
|||
Fungsi Software
1. Data sample rate faster can be set up to 400Hz.
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position.
3. Compatible with Window 7 /8 /10 system.
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display.
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action.
6. Can import multiple test data display simultaneously..
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis.
9. Data name can be self-set and can self-defined formula.
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc.
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions,，Ex. Tensile (compression)、10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism
Antarmuka Perangkat Lunak
| (1)Software interface | (2)Report |
 |
|
*Cometech reserves ultimate modification right of product specification.
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
Related products
Alat Uji Universal Product Serial : QC-501M2F, 502M2F, 503M2F (100 ~300kN)QC-501M2F, 502M2F, 503M2F UNIVERSAL materials testing machine Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard

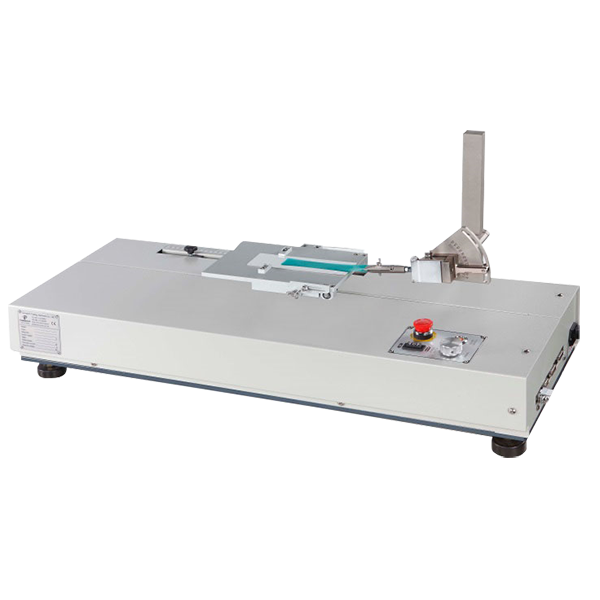

Alat Uji Universal Product Serial : QC-507M1F (100N)QC-507M1F Universal Material Tester Horizontal Type Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN 1002-2, BS1610, GB T228 Standard
