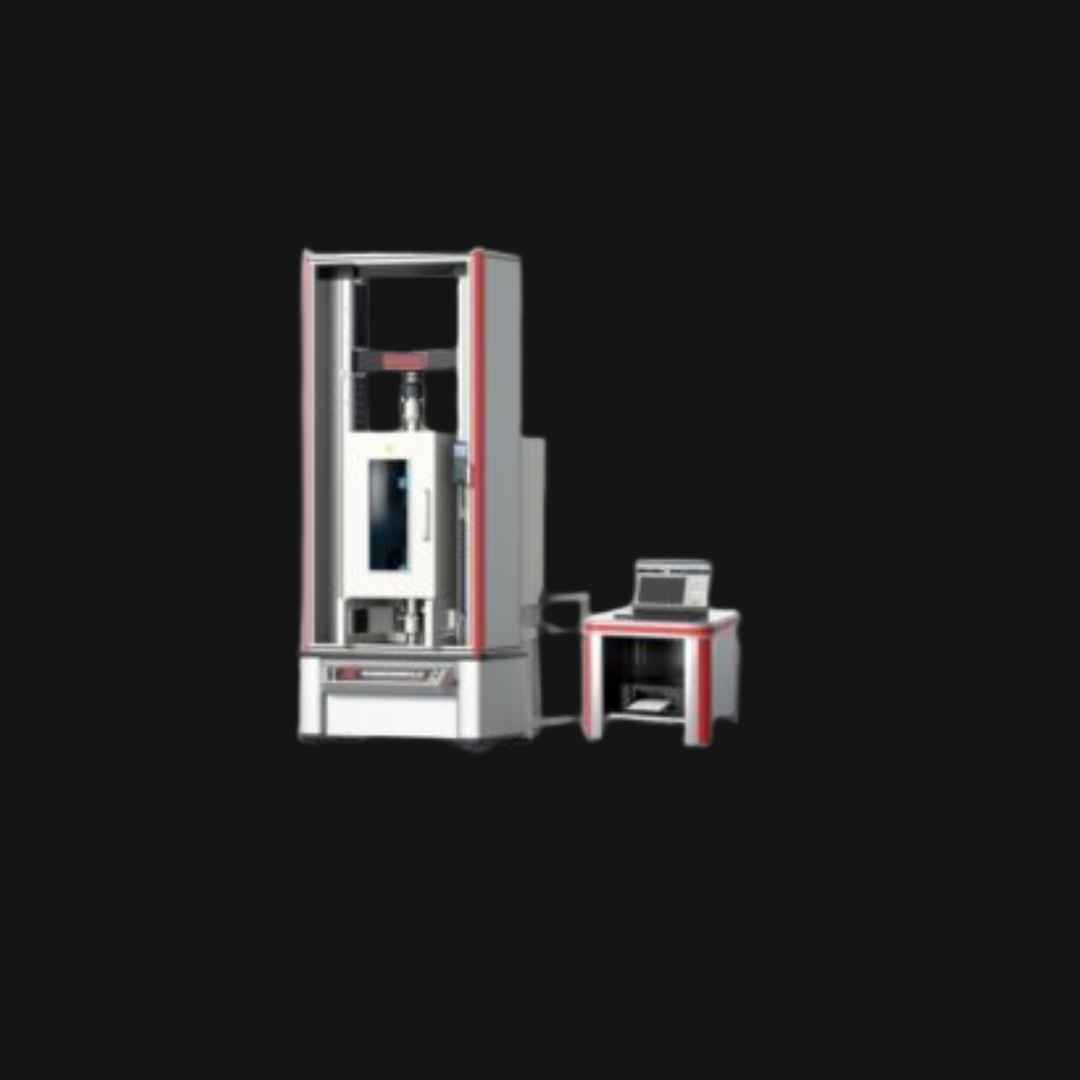

WDW-HLT 200KN 300KN 20T 30T High and Low Temperature Tensile Testing Machine
Application
It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum &Chemical; other industries.
Testig Machine Specificatios
| Model | WDW-200HLT | WDW-300HLT |
| Max. Load(kN) | 200 | 300 |
| Load accuracy | Class 0.5 | |
| Load range | 0.2%～100%F·S | |
| Load resolution | 1/500000 | |
| Resolution of deformation | 0.04um | |
| Accuracy of displacement | Within±0.5%of indicating load | |
| Resolution of displacement | 0.01mm | |
| Test speed(mm/min) | 0.01-500 | 0.01-500 |
| Speed accuracy | ±0.5% of set speed | |
| E-Tensile space(mm) | 700 | 700 |
| E-Compression space(mm) | 1100 | 11000 |
| D-Test width(mm) | 600 | 600 |
| F-Beam travel distance(mm) | 1100 | 1100 |
| Power supply | AC220V±10%，50Hz/60Hz (can be customized) | |
High-low temperature chamber Specificatios
| Model | HST-300GD | HST-430GD | HST-630GD | HST-830GD | HST-1030GD | HST-1930GD |
| Operating temperature range(℃) | RT+10~300 | −40 ~300 | −60 ~300 | −80 ~300 | −100 ~300 | −190 ~300 |
| Cooling system | compressor | liquid nitrogen | ||||
| Temperature uniformity | < 200 ≤±2°C , ≥ 200 ≤±3,5°C | |||||
| Temperature Fluctuation | ≤±1°C | |||||
| Temperature limit | 300℃ | |||||
| Heating rate | 2-3℃/min | |||||
| Power | 220V | |||||
| Material of inner box | stainless steel | |||||
| Outer box material | stainless steel | |||||
| Heating system | Nickel-chromium alloy heating wire heater | |||||
| Insulation Materials | Ultra-fine glass wool or rigid foam | |||||
| Air supply circulation system | a: motor  b: lengthened shaft  c: centrifugal fan | |||||
| Chamber Door | Monolithic door | |||||
| Controller | Temperature Controller | |||||
| Control panel | Rotary switch | |||||
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
Â
Related products
200KN 300KN 20Ton 30Ton Computer Control Electronic Universal Testing Machine
1. Application
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,
GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Fabric Tensile strength tester
Fabric Tensile strength tester is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Fabric Tensile strength tester Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
WAW-1000D 1000KN 1000Ton Computer Control Steel Rebar Hydraulic Universal Testing Machine
Application
This machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.
Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
WAW-F Steel rebar Single Test Space Hydraulic Tensile Testing Machine(600kN, 1000kN)
WDS Rubber Tensile Testing Machine
WDW-1000E 1000KN, 100T Electromechanica universal testing machine
WDW-E 50kN 100kN 5Ton 10Ton electromechanical universal Testing Machine
