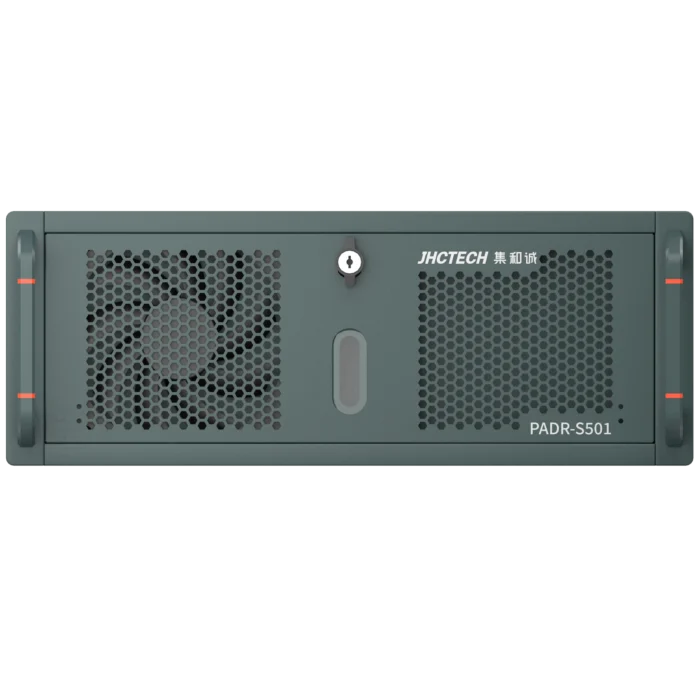

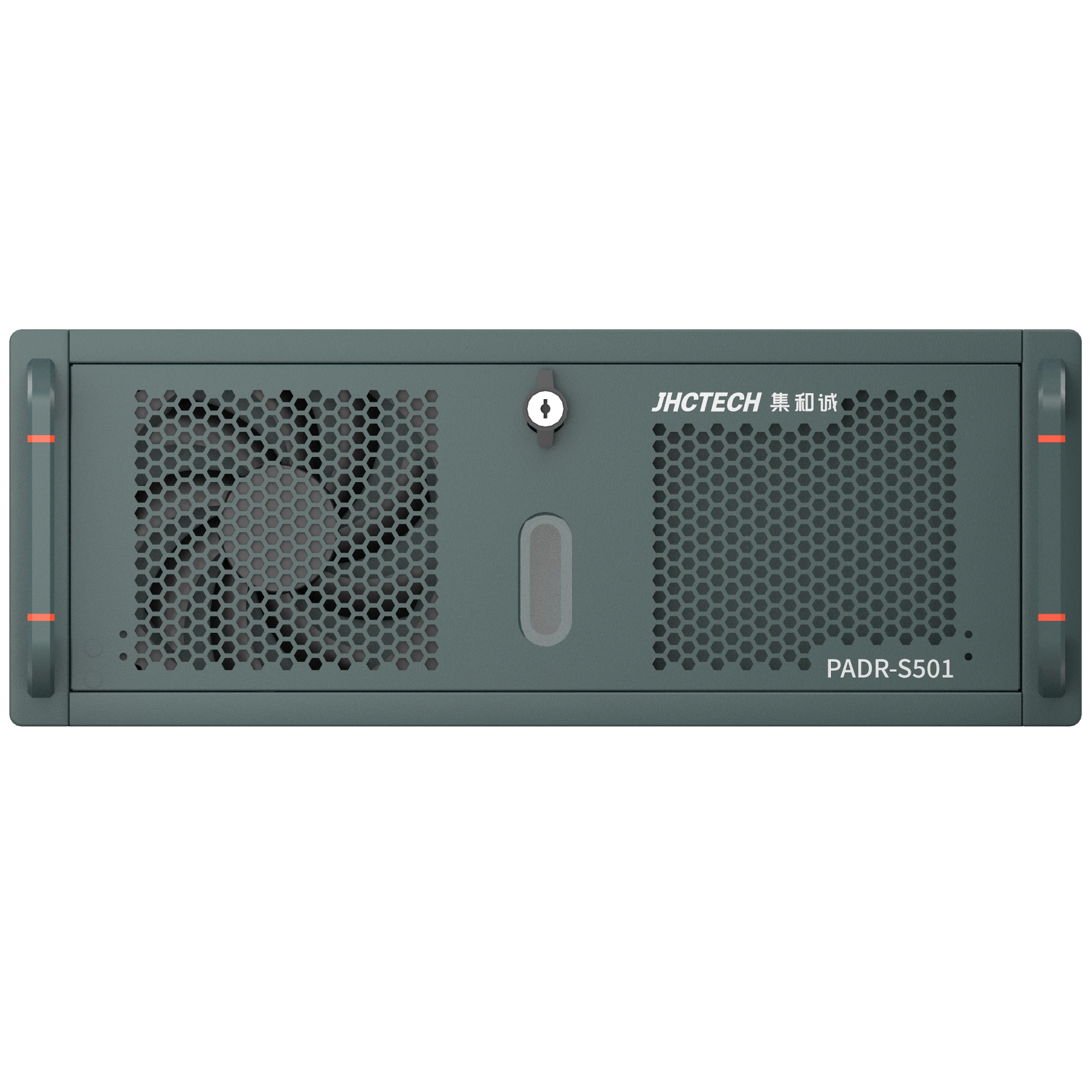

Komputer Industri PADR-S501-I953
Intel® SKL/KBL-S CPU, 2xLAN, VGA+HDMI+DVI, 6xCOM, 4xUSB3.0，5xUSB2.0, 4xPCIe/PCI, 4xSATA Bay, 4U rackmount, ATX power
PADR-S501-953 adalah komputer industri standar rackmount 19″ berukuran 4U dengan chipset Intel H110 yang ditenagai oleh prosesor seri Intel® gen 6/7th SKL/KBL-S LGA1151. Dilengkapi dengan beragam IO fungsional, kemampuan ekspansi 4 PCIe/PCI, desain pendinginan udara yang sangat baik, pilihan sumber daya ATX dengan konsumsi daya yang berbeda, cocok untuk bidang seperti visi mesin, mesin perkakas CNC, dan otomatisasi garis produksi pabrik.
Description
Fitur
Spesifikasi Lengkap
Data Sheet
Fitur
- Intel gen 6/7thSKL/KBL-S LGA1151 CPU+H110 PCH
- Dual channel 2xDDR4 2133/2400MHz UDIMM, up to 32GB
- Intel 9th HD Graphic, VGA+HDMI+DVI-D 3 display
- 1xI219LM Gig. Ethernet+1xI211ATGig. Ethernet
- 4xUSB3.0, 5xUSB2.0 (two front and one built-in), Audio out, and Mic
- 2xRS232/422/485, 4xRS232, optional 1xLPT or 8-bit DIO
- 1xPCIeX16+1xPCI+2xPCIeX4, 1xFull size Mini PCIe
- 4×3.5 “SATA3.0 shock-resistant and anti-vibration hard disk bay
- Standard 19”4U rackmount chassis with high-efficiency air cooling design
- Standard PS2 ATX power supply, 300/500/750W
Spesifikasi Lengkap
System | CPU+PCH | Intel gen 6/7th SKL/KBL-S Core i7/i5/i3/Pentium/Celeron LGA1151 CPU, up to 91W, H110 chipset |
| Memory | 2×288-pin Non-ECC UDIMM , dual channel DDR4 2133/2400MHz, up to 32GB | |
| Expansion | 1xPCIeX16 Gen3.0 slot, 2xPCIeX4 Gen2.0 slot (PCIeX1 signal), 1×32-bit PCI slot 1xFull size Mini PCIe (PCIe X1 signal) | |
| Graphics | Intel HD Graphics, Supports DirectX 12, OpenGL 4.5 AVC/VC1/MPEG2/HEVC/VP8/JPEG.HW HD codec HDMI max. res. 4096*2034@24Hz，VGA max. res. 1920*1200@60Hz, DVI-D max. res. 1920*1200@60Hz | |
| Audio | Realtek ALC897 or ALC662VD controller, Support 5.1 channel | |
| LAN | 1xIntel I211AT，10M/100M/1000M self-adapt，support WOL 1xIntel I219LM，10M/100M/1000M self-adapt，support WOL | |
| Storage | 4xSATA3, 6.0Gbps interface, the box is designed with 4×3.5 “and 2×2.5” 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage | |
| Rear I/O | 2xLAN(RJ45); 1xHDMI+1xVGA+1xDVI-D; 1xLine out+1xMic 2×3.5mm phone jack 4xUSB3.0 Gen2 (5Gb/s, Type A), 2xUSB2.0(Type A)，support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 1xRS232(DB9 male), optional 1xLPT (DB25 female) | |
| Front I/O | 2xUSB2.0(Type A) | |
| Internal I/O | 8bit DIO, 1xUSB2.0(Type A), 1*LPT pin header, 3*RS232 pin header, 1xF_AUDIO, 1xAMP, 1xLPC, the built-in interface can be elicited through an extension window | |
| Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper | |
| Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W and 750W; TDP: TBD | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows 7(SKL-S supports 32-bit and 64-bit, KBL-S supports 64-bit), Windows 10, Linux | |
Mechanical | Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
| Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan | |
| Color | Granite grey | |
| Dimension | (W*H*D)：430x470x173mm | |
| Net weight | 14.0kg | |
Environmental | Operating Temperature | 0～50℃ |
| Storage Temperature | -40°C~70°C | |
| Storage Humidity | 10~95%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） | |
| EMC/Certification | CE/FCC Class A, 3C |
Data Sheet
