Komputer Industri PADR-M101

Description

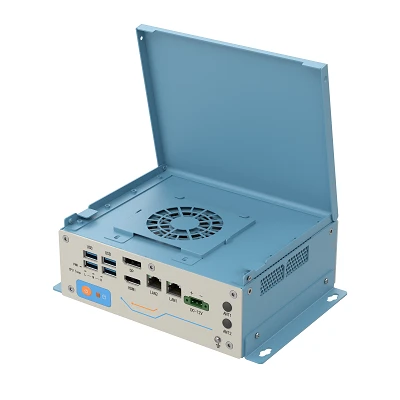

PADR-M101 adalah komputer industri embedded box PC baru yang diluncurkan oleh JHCTECH. Dilengkapi dengan arsitektur Intel® WhiskeylakeU. Ditenagai oleh prosesor seri Intel® coreTM generasi ke-8 i3/i5/i7/Celeron U, 2-Ch DDR4, 2SO-DIMM hingga 32GB. Dilengkapi dengan antarmuka tampilan dual 4K, yaitu 1HDMI, 1DP, dan antarmuka audio high fidelity 1Lineout&Mic. Tidak hanya memiliki beragam antarmuka IO, tapi juga antarmuka ekstensi ganda, 1M.2 mendukung NGFF-2230, 1Mini PCIe dengan slot kartu SIM, mendukung fungsi nirkabel 3G/4G/Wifi/BT/GPRS, dapat dipilih di BIOS untuk mSATA, 1*SATA3.0 untuk penyimpanan. Ditenagai oleh daya DC 12V, opsional wide voltage DC 9~36V. Ukuran kecil, penampilan cantik, mudah diproduksi, cocok untuk terminal portabel, mesin iklan, AGV, peralatan analisis medis, dan industri berukuran kecil lainnya dengan biaya rendah.

Fitur
Spesifikasi Lengkap
Data Sheet
Fitur

SGCC box design, 4 – line temperature – controlled fan silent heat dissipation
Intel® CoreTM i3/i5/i7/Celeron U CPU
2*DDR4 2400MHz SODIMM, Up to 32GB
1*HDMI，1*DP，Support dual 4K display
1*Line out&Mic，4*USB3.0
2* GbE LAN，3/4*COM ，8-bit DIO
1*2.5”SATA tray for storage
1*M.2，2230 E-Key, 1*Mini-PCIe with SIM Slot
DC 12V Wide Power Input,Optional 9~36V

Spesifikasi Lengkap

System	CPU		Celeron 4305U	Core I3-8145U	Core I5-8265U	Core I7-8565U
		Cores	2	2	4	4
		Threads	2	4	8	8
		Frequency(GHz)	2.2	2.1-3.9	1.6-3.9	1.8-4.6
	System Memory	Dual channel DDR4 2400MHz SO-DIMM , up to 32GB
	Expansion	1* M.2 E-key 2230, with PCIe X1+USB2.0 signal, expansion of Wifi/BT module
		1* Full Mini PCIe with 1*SIM card slot, support 3G/4G/Wifi/ BT/ GPRS wireless functions, can be selected in BIOS for mSATA
	Display	Intel® gen.9 UHD Graphics, supports dual independent display 1HDMI max. res. 4096 2304@24hz
		1DP max. res. 4096 2304@60hz
	Aduio	Realtek ALC662VD controller, 1*Line out&Mic high fidelity audio interface, support 5.1 channel
	LAN	2*Intel® I210AT PCIe Gig. Ethernet，10/100/1000Mbps adaptive
	Storage	1*2.5”SATA port，can support 15mm SSD/HDD
	I/O ports	2* RS232/422/485 (DB9), 1RS232(DB9), 18-bit DIO (DB9) optional RS232
		4USB3.0, 2G-LAN (RJ45)，
		1HDMI，1DP, 1*Line out &Mic(Phone jack）optional
	LED	1Power LED, 1HDD LED, 3*CPU temp. LED（Red is warning , Yellow is high, Green is normal)
	Control SW	1*Power button
	Power Supply	3-pin ter. connector，DC 12V , 9~36V wide voltage power supply is optional (2.5 “SSD/HDD is not supported if wide voltage power supply is selected)
		Consumption:TDP 27.83W (I7-8565U, 16GB DDR , 1*4T SSD)
	Watchdog Timer	Watchdog timeout programmable via software 1 to 255 second
	OS Support	Windows 10, SUSE, Ubuntu, Wind River, Red Hat Enterprise
Mechanical	Structure	SGCC
	Color	Silk grey+Pastel Blue
	Mounting	Desktop Mounting
	Dimension	(WDH)：20014065.5mm
	Net weight	1.51KG
Environ- mental	Operating temperature	-0℃~50℃，with wide operating temp. SSD, airflow
	Storage Temperature	-40℃~+85℃
	Storage Humidity	10~90%@40°C, Non-condensing
	Vibration	5grms/5~500Hz/random/in working(SSD)
		1grms/5~500Hz/random/in working(HDD)
	Shock	50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD）
	Certification/EMC	CE/FCC Class B
