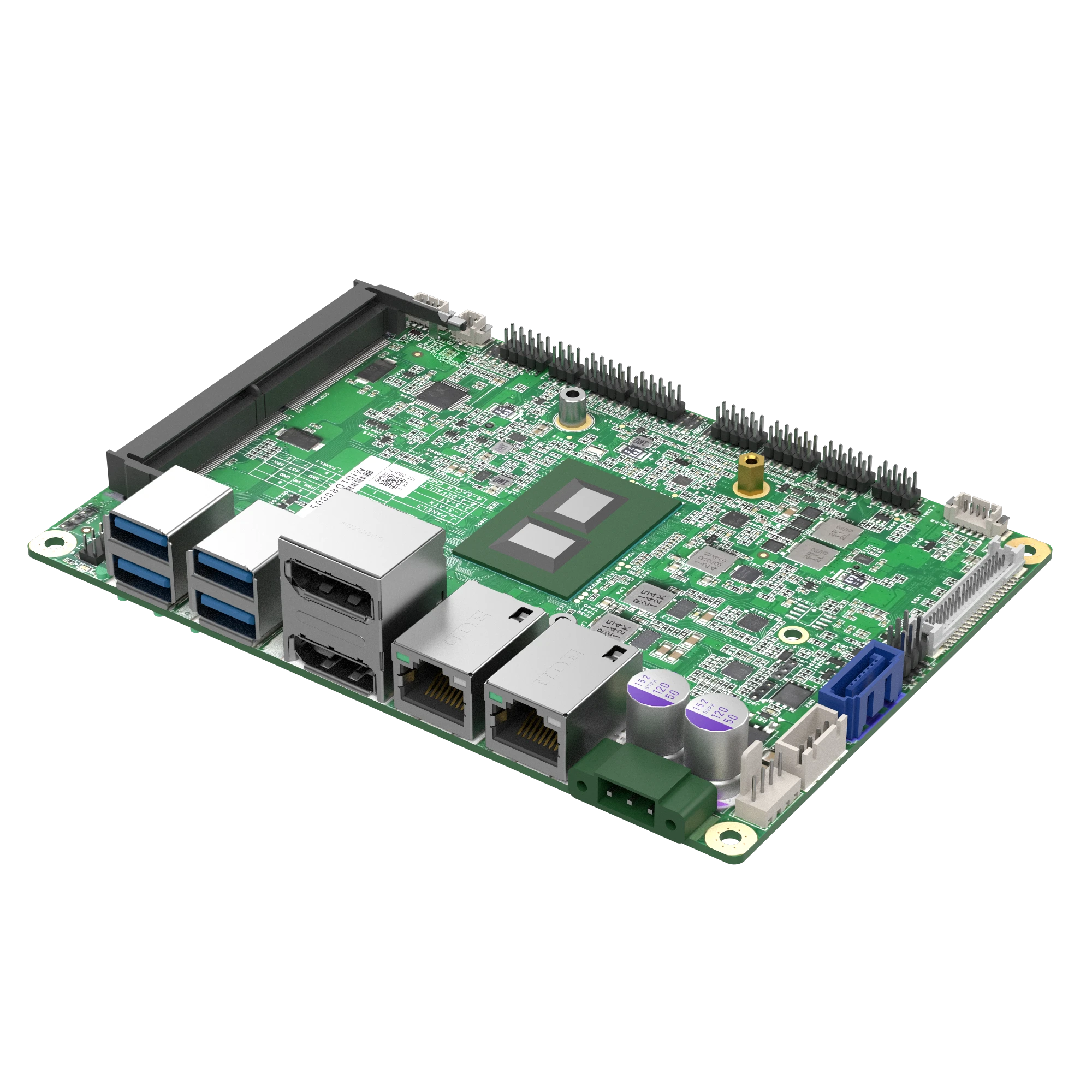

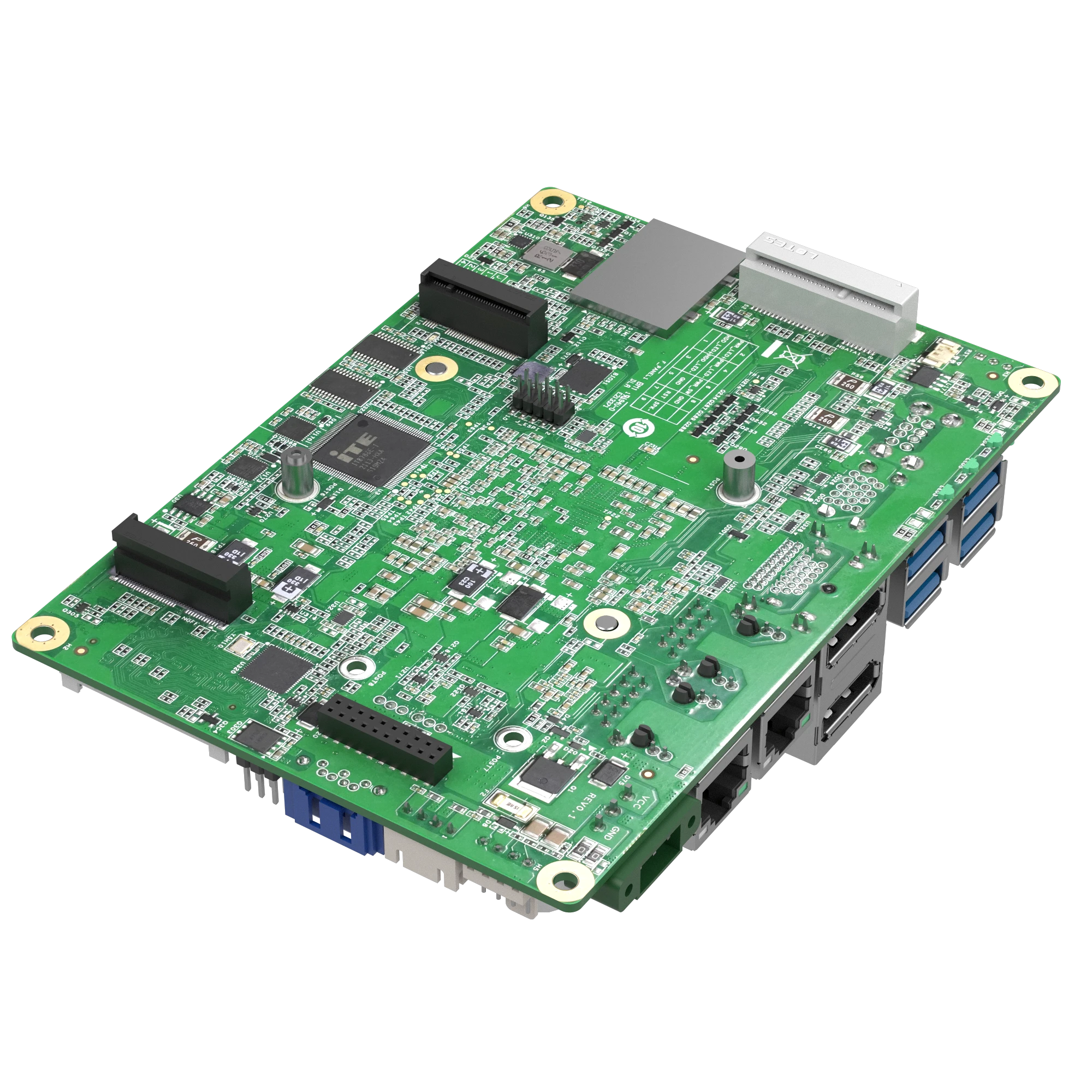

Komputer Industri ECM-I718 Single Board Computer
Intel® Elkhart lake Soc CPU,single channel DDR4，1*HDMI，1*DP，2*LAN，4*USB3.1，4*COM，1*8bit DIO， 1*M.2 B-key/1*M.2 E-key，1*mSATA, 1*SATA3.0, DC 12V power
ECM-I718 adalah mainboard berukuran 3,5 inci yang dilengkapi dengan CPU Intel® Elkhart Lake Soc. Memiliki fungsi IO lengkap, pilihan pasokan daya yang fleksibel, pendingin aktif dan pasif, serta ukuran yang kompak cocok untuk dipasang di ruang terbatas. Sangat sesuai untuk digunakan dalam AGV dan AMR, pemeriksaan medis, visi mesin, kontrol industri, kota digital, keamanan pintar, dan industri serta bidang lainnya.
ECM-I718 adalah komputer industri mainboard berukuran 3,5 inci yang dilengkapi dengan CPU Intel® Elkhart Lake Soc. Memiliki fungsi IO lengkap, pilihan pasokan daya yang fleksibel, pendingin aktif dan pasif, serta ukuran yang kompak cocok untuk dipasang di ruang terbatas. Mainboard ini sangat ideal untuk digunakan dalam AGV dan AMR, pemeriksaan medis, visi mesin, kontrol industri, kota digital, keamanan pintar, dan industri serta bidang lainnya.
- Intel® Elkhart lake Soc CPU
- Single channel DDR4 SODIMM, support 3200MHz, up to 64GB
- 1*HDMI, 1*DP, 1*48-bit LVDS, 3 independent displays
- 2*LAN, 4*USB3.1, 2*USB2.0, 4*COM, 1*8-bit DIO
- 1*M.2 2230 E-key supports WIFI/BT or 1*M.2 3052 B-key with SIM card slot, supports 4G LTE/5G NR
- 1*SATA3.0 HDD/SSD，1*mSATA(with USB2.0 signal) for storage
- Active or passive, two different thickness radiator selection
- DC IN12V，9-36V wide power input for optional （OFX-075）
| CPU | Intel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4Cores and 4Threads or Celeron N6210 1.2-2.6GHz 2Cores and 2Threads |
| System Memory | 1*260-pin DDR4 SODIMM，supports 3200MHz，up to 32GB |
| Expansion | 1* M.2 2230 E-key (USB2.0 signal and PCIeX1 signal)，supports WiFi5/BT5.0 1*M.2 B-key 3052 (USB2.0 signal and PCIeX1 signal)，with SIM slot, supports 4G LTE/5G NR |
| Graphics | Intel Gen10 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8；HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9 HDMI up to 4096*2304@60Hz, DP up to 4096*2160@60Hz, LVDS up to 1920*1200@60Hz, |
| Audio | 1*Line out + Line in+ 1*Mic, Realtek ALC897 HD audio chip, support 5.1 channels |
| LAN | 2*Realtek 8111H, 10/100/1000Mbps, support WOL |
| Storage | 1*SATA3.0 port, supports up to 6 Gbps transmission speed; 1*mSATA (with USB2.0 signal) |
| Rear I/O | 2*LAN(RJ45); 1*HDMI+1*DP; 4*USB3.1 gen2.0(Type A), up to 10 Gbps |
| Internal I/O | 2*USB2.0(2*4pin dupont pin)，1*RS232/422/485(one 2*5pin dupont pins)，3*RS232(three 2*5pindupont pins), 1*8-bit DIO(2*5pin dupont pin)，1*F-audio(2*5pin dupont pin)，1*48-bit LVDS(2*20pinDF13 port)，1*SM BUS(1*4pin wafer）, 1*SATA 3.0, 1*FAN |
| Switch & LED | 1*HDD LED; 1*PWR LED; 3*CPU Temp.LED (Red is warning, Yellow is high, Green is normal) 1*F_Panel(PowerSW, Reset，Power LED, HDD-LED), 2x5pin dupont pin；1*AT/ATX jumper，1*Clear CMOS jumper，1*USB 5V/SB jumper |
| Power Supply | DC 12V (1*3pin phoenix socket, colay 2*10pin Dupont mother), it can be connected to OFX-075 75W power board and supports 9-36V wide voltage input TDP: 15.6W (CPU: Celeron J6412/32G DDR4/128 SSD) |
| Watchdog Timer | Programmable timeout interrupt or system reset, 1 to 255 seconds |
| OS Support | Windows 10/Windows 11 64 bit, SUSE, Ubuntu, Wind River, Linux |
| Dimension | (W*H) : 146*102mm |
| Height | Signal board: 36mm, the radiator with fan: 37mm, fanless radiator: 52mm, PCB: 1.6mm |
| Operating Temperature | 0～60℃ |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| EMC/Certification | CE/FCC Class A |
