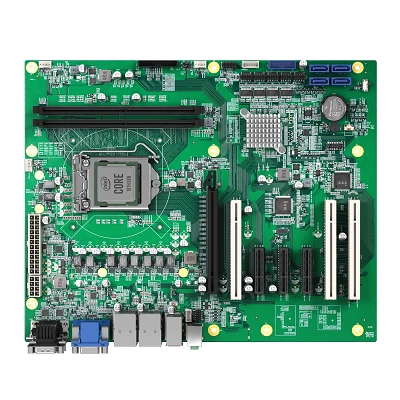

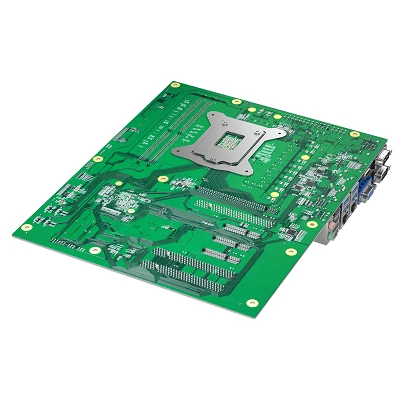

Komputer Industri ATX Motherboard ATX-I971 Single Board Computer

CPU

Intel 10th Gen. Cometlake-S Core i9/i7/i5/i3/Pentium/Celeron CPU，LGA 1200 Socket，up tp 125W

Memory

288-pin Non-ECC UDIMM , dual channel DDR4 2400/2666/2933MHz, up to 32GB

Expansion

1*PCIe×16 Gen3.0 slot，3*PCIe×4 Gen3.0 slot (PCIex1 signal，the first slot(×2 signal) can share the other 2 slots signal through BIOS settings, so it can be changed to ×4 signal, at this time the other 2 slots are unavailable)，3*32-bit PCI slot，

Graphics

Intel UHD Graphics, Supports DirectX 12, OpenGL 4.5 and OpenCL 2.1

HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9

HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

HDMI max. res. 4096*2160@30Hz，VGA max. res. 1920*1200,60Hz

Audio

Realtek ALC662 controller, 1*Line out+1*Mic，Support 5.1 channel (Opt.)

LAN

1*Intel I225V，10M/100M/1000M/2.5G self-adapt，support WOL

1*Intel®I219LM，10/100/1000Mbps，support WOL

Storage

4*SATA3, 6.0Gbps HDD/SSD

Rear I/O

2*LAN(RJ45)，2*RS232/422/485 (DB9)，1*HDMI+1*VGA，

4*USB3.2 Gen1 (5Gb/s)(Type A), 4*USB2.0(Type A)，support USB Power to switch between System mode(+5V) and +5VSB mode through jumper

1*Line out+1*Mic  3.5mm phone jack

Internal I/O

8bit GPIO，1*LPT，2*USB3.2 Gen1(5Gb/s) pinheader，1*SM Bus，4*RS232 pinheader，4*SATA3，1*F_PANEL pinheader，PS/2 wafer

Switch & LED

F_PANEL（USB Power jumper,  AT/ATX jumper, Clear CMOS jumper，Power LED，SSD/HDD LED）

Power Supply

24-pin ATX/8-pin ATX 12V，max. output power：280W

Watchdog Timer

Watchdog timeout programmable via software 1 to 255 second

Security

Support Infineon TPM2.0(Opt.)

OS Support

Windows 10, Windows 11，Linux Ubuntu

Dimension

(W*H)：305*244mm

Height

Top Side：37.58mm；PCB：1.6mm

Operating Temperature

0～60℃

Storage Temperature

-40°C~85°C

Storage Humidity

10~95%@40°C, Non-condensing

EMC/Certification

CE/FCC Class B
