Alat Perekam Termokopel HOBO 4-Channel Thermocouple Data Logger UX120-014M - Image 1

Alat Perekam Termokopel HOBO 4-Channel Thermocouple Data Logger UX120-014M - Image 2

Alat Perekam Termokopel HOBO 4-Channel Thermocouple Data Logger UX120-014M

Alat Perekam Termokopel HOBO 4-Channel Thermocouple Data Logger UX120-014M

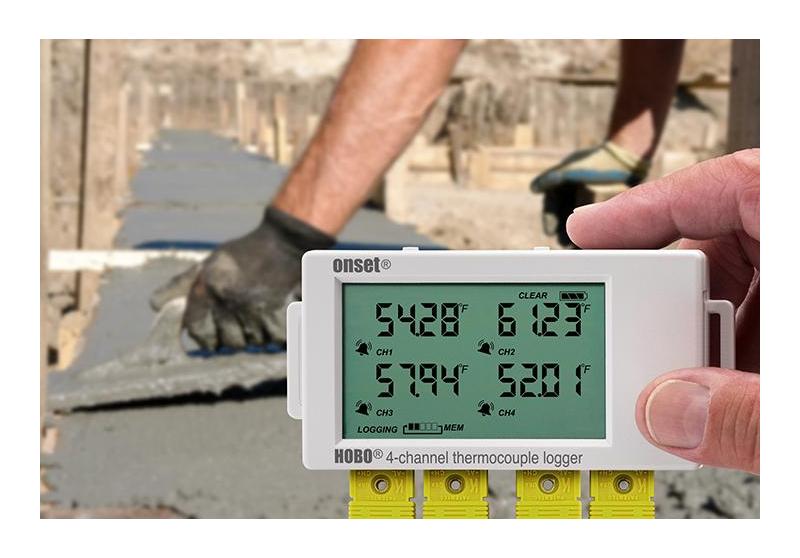

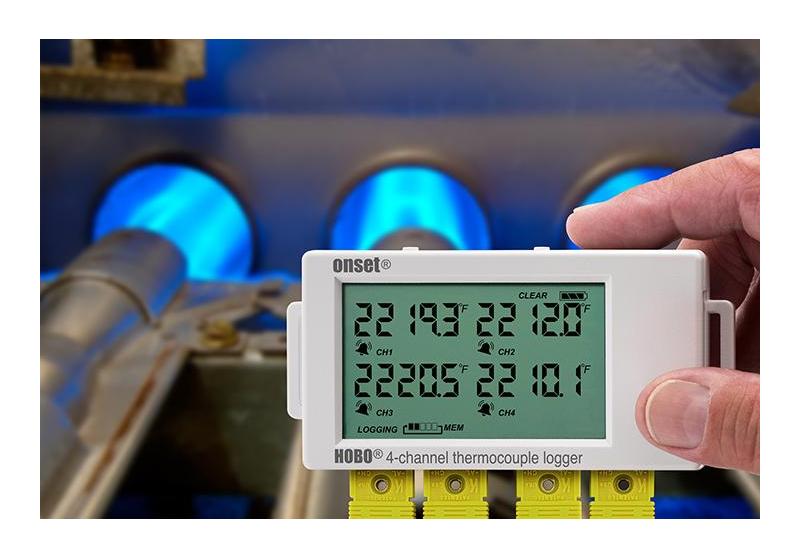

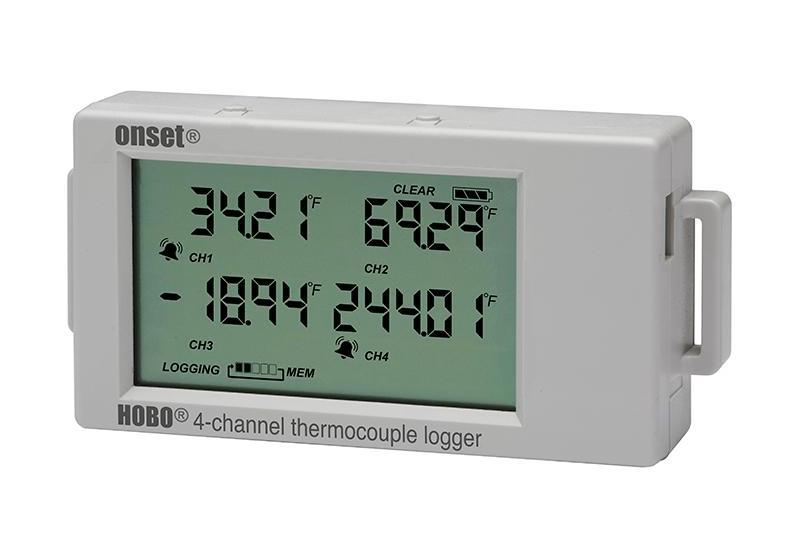

HOBO 4-Channel Thermocouple Data Logger (Part # UX120-014M)

HOBO UX120 Thermocouple Data Logger adalah pencatat data LCD empat saluran untuk mengukur dan merekam suhu dalam berbagai aplikasi pemantauan. Data logger memudahkan dan nyaman untuk merekam suhu pada rentang yang luas (-260 hingga 1820⁰ C) dan dapat menerima hingga empat probe tipe J, K, T, E, R, S, B, atau N.

Selain menerima empat probe termokopel, pencatat data memiliki sensor suhu internal untuk mencatat suhu sekitar, yang semakin memperluas jangkauan kemungkinan aplikasi.

Onset juga menawarkan pencatat data termokopel saluran tunggal, HOBO UX100-014M.

Untuk informasi lebih lanjut, anda bisa menghubungi kami melalui :

Our Office : Jl. Radin Inten II No. 61A Duren Sawit – Jakarta Timur 13440

Phone : (021) 8690-6782 / (021) 8690-6783

Whats App : 0816-1740-8900 / 0813-9838-7525

Fax : (021) 8690-6781

E-mail : [email protected]

.
.
.
#hobo #data #logger #loggers #logging #datalogger #iot #sensor #monitoring #system #internet #of #things #tech #techno #technology #measure #measuring #measurement #connect #connection #connectivity #temp #temperature #choose #option

Compare

Add to wishlist

Categories: Indoor Environment, Temperature, Thermocouple

Description

HOBO 4-Channel Thermocouple Data Logger (Part # UX120-014M)

Selain menerima empat probe termokopel, pencatat data memiliki sensor suhu internal untuk mencatat suhu sekitar, yang semakin memperluas jangkauan kemungkinan aplikasi.

Onset juga menawarkan pencatat data termokopel saluran tunggal, HOBO UX100-014M.

Keunggulan :
-Layar LCD yang mudah dilihat mengonfirmasi operasi pencatat dan status baterai
-Mendekati pembacaan waktu nyata dari suhu saat ini serta statistik deviasi minimum, maksimum, rata-rata dan standar
-Alarm di layar memberi tahu Anda jika suhu melebihi ambang batas tinggi atau rendah
-Kapasitas memori besar yang mampu menyimpan 1,6 juta pengukuran
-Mulai, hentikan, dan mulai ulang tombol tekan
– Firmware pengguna yang dapat diupgrade
-Kasus pelindung opsional memungkinkan penggunaan logger di lingkungan luar ruangan
-Kompatibel dengan perangkat lunak HOBOware dan HOBOware Pro untuk pengaturan, grafik, dan analisis logger

Type	Range	Accuracy	Resolution
J	-210° to 760°C (-346° to 1,400°F)	±0.6°C (±1.08°F) ± thermocouple probe accuracy	0.03°C (0.06°F)
K	-260° to 1,370°C (-436° to 2,498°F)	±0.7°C (±1.26°F) ± thermocouple probe accuracy	0.04°C (0.07°F)
T	-260° to 400°C (-436° to 752°F)	±0.6°C (±1.08°F) ± thermocouple probe accuracy	0.02°C (0.03°F)
E	-260° to 950°C (-436° to 1,742°F)	±0.6°C (±1.08°F) ± thermocouple probe accuracy	0.03°C at (0.05°F)
R	-50° to 1,550°C (-58° to 2,822°F)	±2.2°C (±3.96°F) ± thermocouple probe accuracy	0.08°C (0.15°F)
S	-50° to 1,720°C (-58° to 3,128°F)	±2.2°C (±3.96°F) ± thermocouple probe accuracy	0.08°C (0.15°F)
B	550° to 1,820°C (1,022° to 3,308°F)	±2.5°C (±4.5°F) ± thermocouple probe accuracy	0.1°C (0.18F)
N	-260° to 1,300°C (-436° to 2,372°F)	±1.0°C (±1.8°F) ± thermocouple probe accuracy	0.06°C (0.11°F)

Internal 10K Thermistor (Temperature):

Plot A Time Accuracy Range: Logging: -20° to 70°C (-4° to 158°F)
Acuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
Drift: <0.1°C (0.18°F) per year

Logger

Logger Operating Range
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F)
Launch/readout: 0° to 50°C (32° to 122°F) per USB specification

Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button
Time accuracy: ±1 minute per month at 25°C (77°F), see Plot B
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: Two AAA 1.5V alkaline batteries, user replaceable
Memory: 4 MB (1.6 million measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: Approximately 1.5 minutes
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)
Weight: 107.5 g (3.79 oz)
Environmental rating: IP50
