Alat Perekam Suhu HOBO Type J, K, T, E, R, S, B, N Thermocouple Data Logger UX100-014M

HOBO Type J, K, T, E, R, S, B, N Thermocouple Data Logger (Part # UX100-014M)

Data logger Termokopel Saluran Tunggal HOBO UX100-014M merekam suhu di lingkungan dalam ruangan dengan sensor termokopel (dijual terpisah). Dirancang untuk berbagai aplikasi pemantauan – mulai dari pemantauan proses industri hingga pengujian kematangan beton – logger memberikan fleksibilitas luar biasa dengan menerima probe termokopel tipe J, K, T, E, R, S, B atau N.

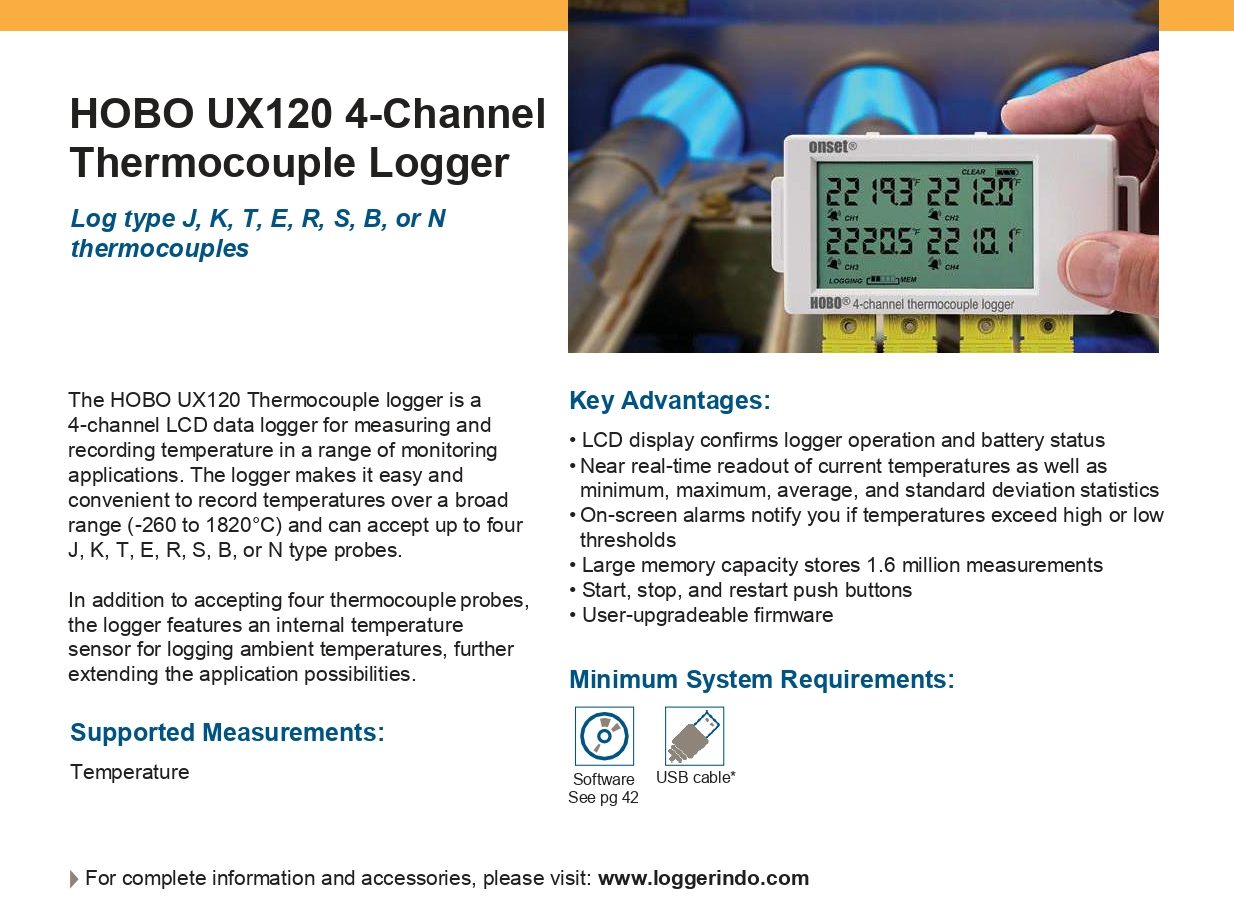

Onset juga menawarkan pencatat data termokopel empat saluran, HOBO UX120-014M.

Keunggulan:
-Pembacaan termokopel J, K, T, E, R, S, B, N akurasi tinggi
-Mudah untuk melihat layar LCD
-Kapasitas memori besar
-Ambang batas alarm tinggi & rendah visual
-Mode logging Burst dan Statistik Baru
-Rekam suhu sekitar dengan termistor internal

Internal 10K Thermistor (Temperature)

Range: Logging: -20° to 70°C (-4° to 158°F)
Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
Drift: <0.1°C (0.18°F) per year

Logger

Logger Operating Range
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F)
Launch/readout: 0° to 50°C (32° to 122°F) per USB specification

Resolution: 22-bit
Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button
Time accuracy: ±1 minute per month at 25°C (77°F), see Plot B
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: One 3V CR2032 lithium battery
Memory: 512 KB (208,076 measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: 1 minute, 30 seconds
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)
Weight: 30 g (1.06 oz)
Environmental rating: IP50
