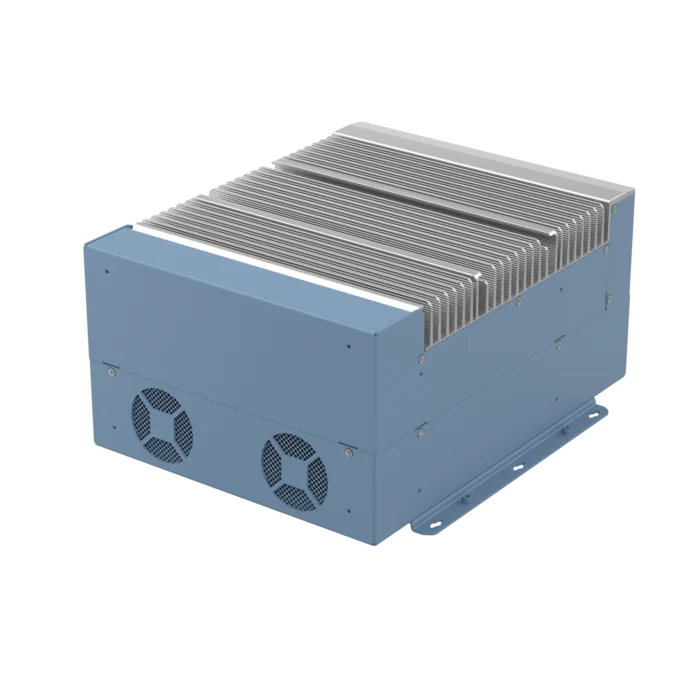

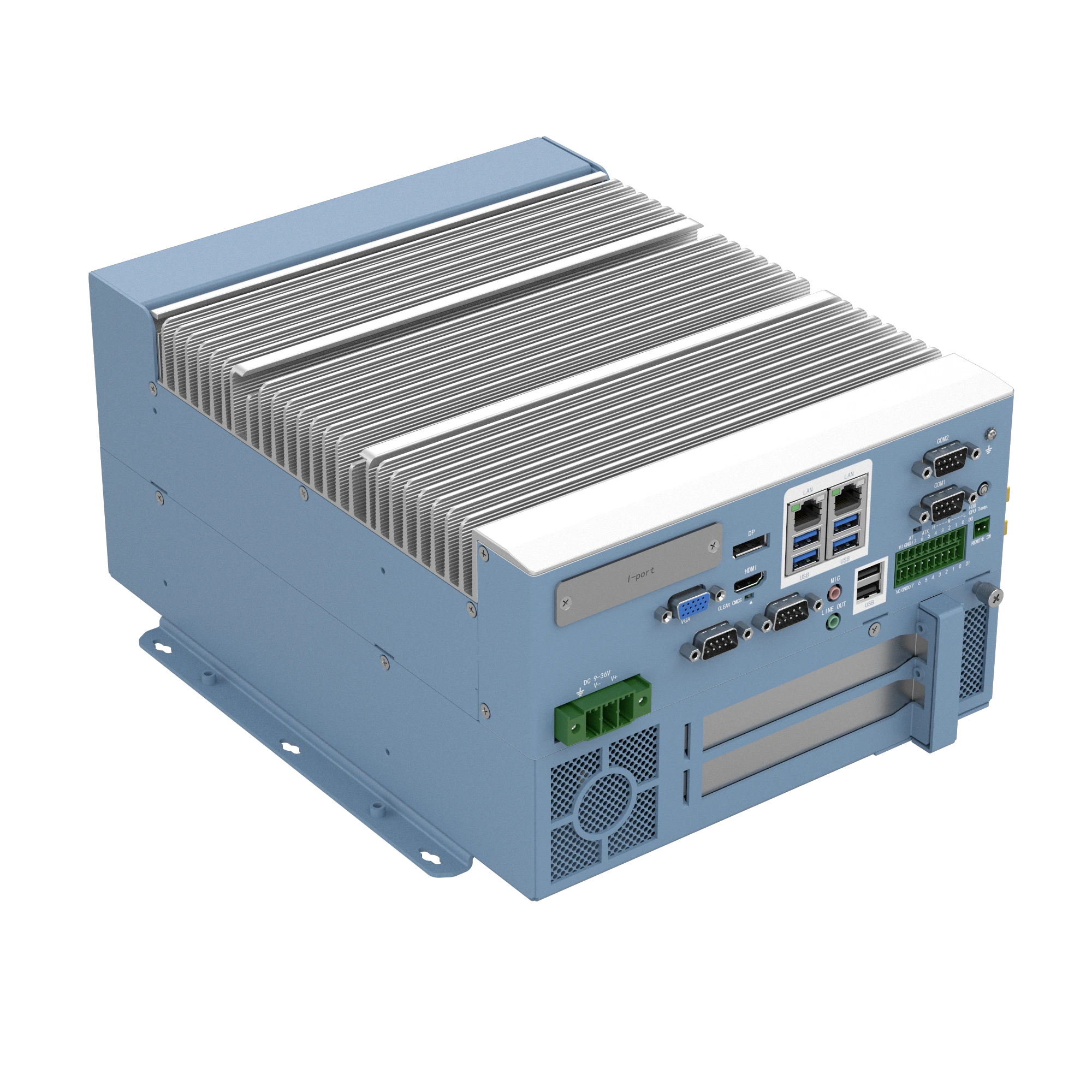

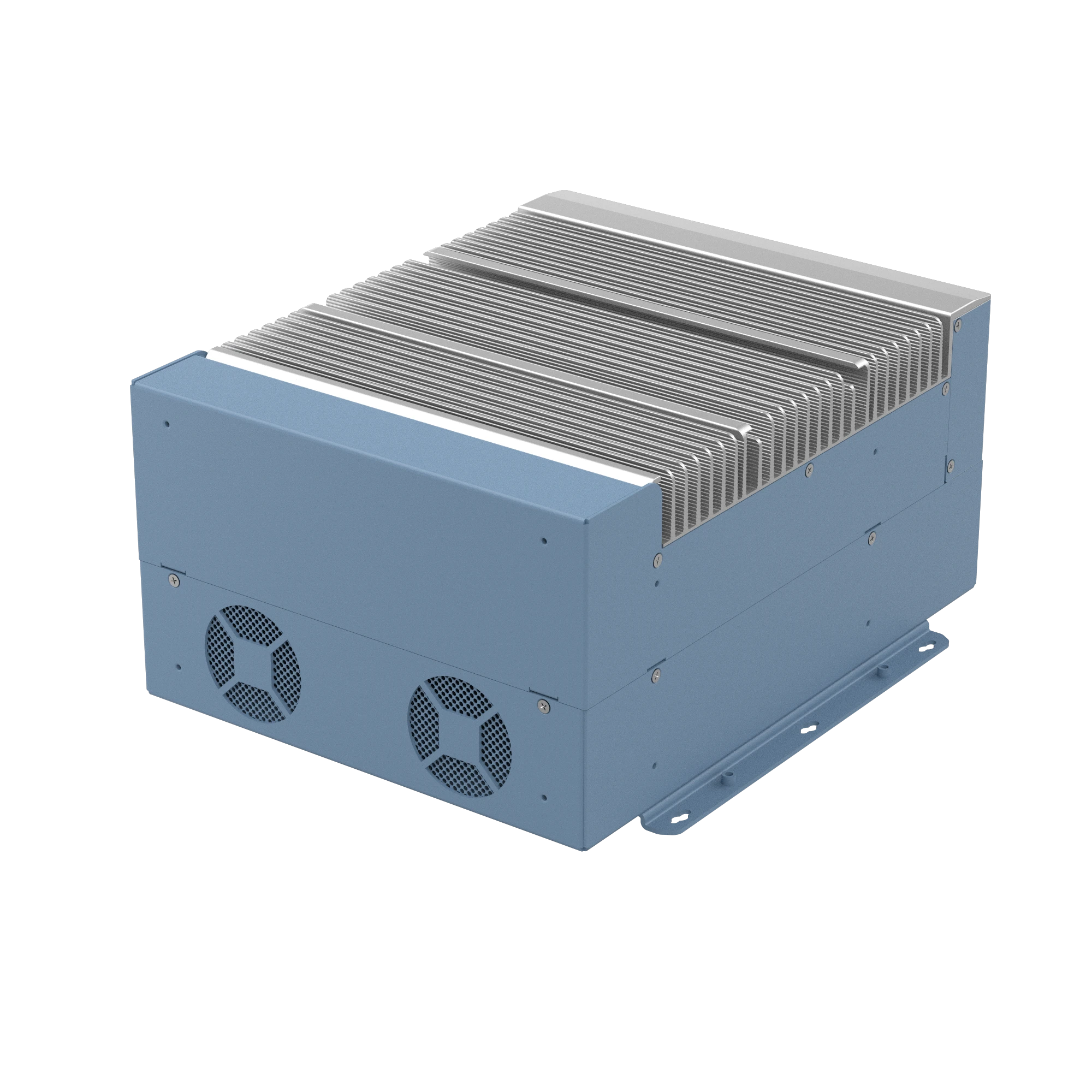

Fanless Box PC KMDA-7920-S001 Komputer Industri
Intel® 12th Gen Alder Lake-S LGA1700 CPU, 2*LAN, 4*USB3.2, 1*VGA, 1*DP, 1*HDMI, 4*COM, 16bit DIO, 1*mSATA, 1*Mini PCIe, 2*PCIe, 2*SATA3.0, DC 9-36V.
KMDA-7920 merupakan fanless box pc dengan performa tinggi yang dilengkapi chipset H610, ditenagai CPU Intel® 12th Gen Alder lake-S, beragam Input Output, dual PCIe extension, dan ukurannya yang sedang. Sangat cocok untuk automasi industri, jalan tol, AI edge computing, pemantauan keamanan atau security monitoring, deteksi lingkungan, dan banyak aplikasi industri lainnya.
Fitur
Spesifikasi Lengkap
Data Sheet
Fitur
- Intel® 12th Gen Alder lake-S LGA1700 CPU
- Intel® H610 PCH
- 2*DDR5 4800MHz SODIMM, up to 64GB
- 1*DP, 1*HDMI and 1*VGA, 3 independent displays
- 2*LAN, 4*USB3.2, 2*USB2.0, 16bit Iso. DIO
- Audio 1*MIC+1*LINE OUT
- 2*RS232/422/485 and 2*RS232 COM 1*Mini-PCIe full size with SIM card slot, support 4G LTE modem
- 1*PCIeX16+1*PCIeX16 (X4 signal) dual expansions
- 2*2.5”Easy-plug SATA3.0 bay and 1*mSATA
- DC IN 9-36V, wide power input, with OVP,OCP and SCP
Spesifikasi Lengkap
| Mechanical | Aluminium-magnesium alloy chassis and fanless cooling design, SGCC frame |
| Color | Pigeon blue + White aluminum grey |
| Mounting | Desktop Mounting |
| Dimension | (L*W*H)：256.68*312.7*149.9mm |
| Net weight | TBD |
| Operating
temperature |
-20～60℃, SSD, air flow
-10～55°C,HDD, air flow |
| Storage
temperature |
-40°C~85°C |
| Storage
humidity |
10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
| EMC/
Certification |
CE/FCC Class A |
| CPU+PCH | Intel® Alder lake-S 12th Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU，Intel® H610 PCH |
| System memory | 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, up to 64GB |
| Expansion | 1*PCIeX16 (X16 signal from CPU) gen5.0+1*PCIe X16(X4 signal from PCH) gen3.0,
can be inserted the highest power consumption 150W GPU or AI acceleration card (card length is less than 250mm) or the highest power consumption 75W AI accelerator card or other function card (card length is less than 280mm); Optional 1*PCIe X16 (X16 signal form CPU) gen5.0+1*32bit PCI; 1*full size Mini-PCIe(PCIeX1+USB2.0 signal) with SIM card slot, support 4G LTE modem or PCIe signal function module |
| Graphics | Intel® UHD Graphics, Supports DirectX 12, OpenGL 4.5, OpenCL 3.0,
DP max res. 7680*4320@60Hz, HDMI max res. 4096*2160@60Hz, VGA max res. 1920*1200@60Hz, support 3 independent displays |
| Audio | Realtek ALC897 controller, 1*Line out and 1*MIC high fidelity Audio, supports 5.1 channel |
| LAN | 1*Intel I226V 2.5G Gigabit Ethernet, full PCIe X1 bandwidth, 10M/100M/1000M/2.5Gbps, support WOL
1*Intel I219LM Gigabit Ethernet, full PCIe X1 bandwidth, 10M/100M/1000Mbps, support WOL |

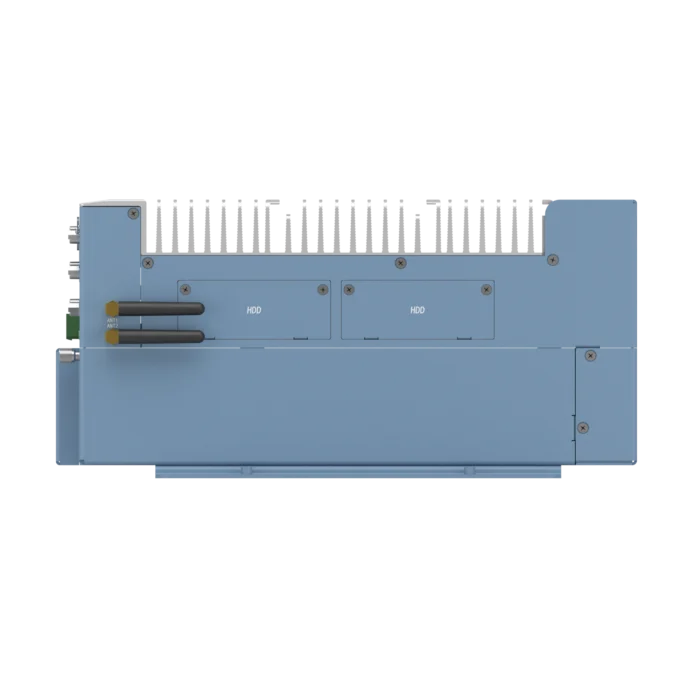

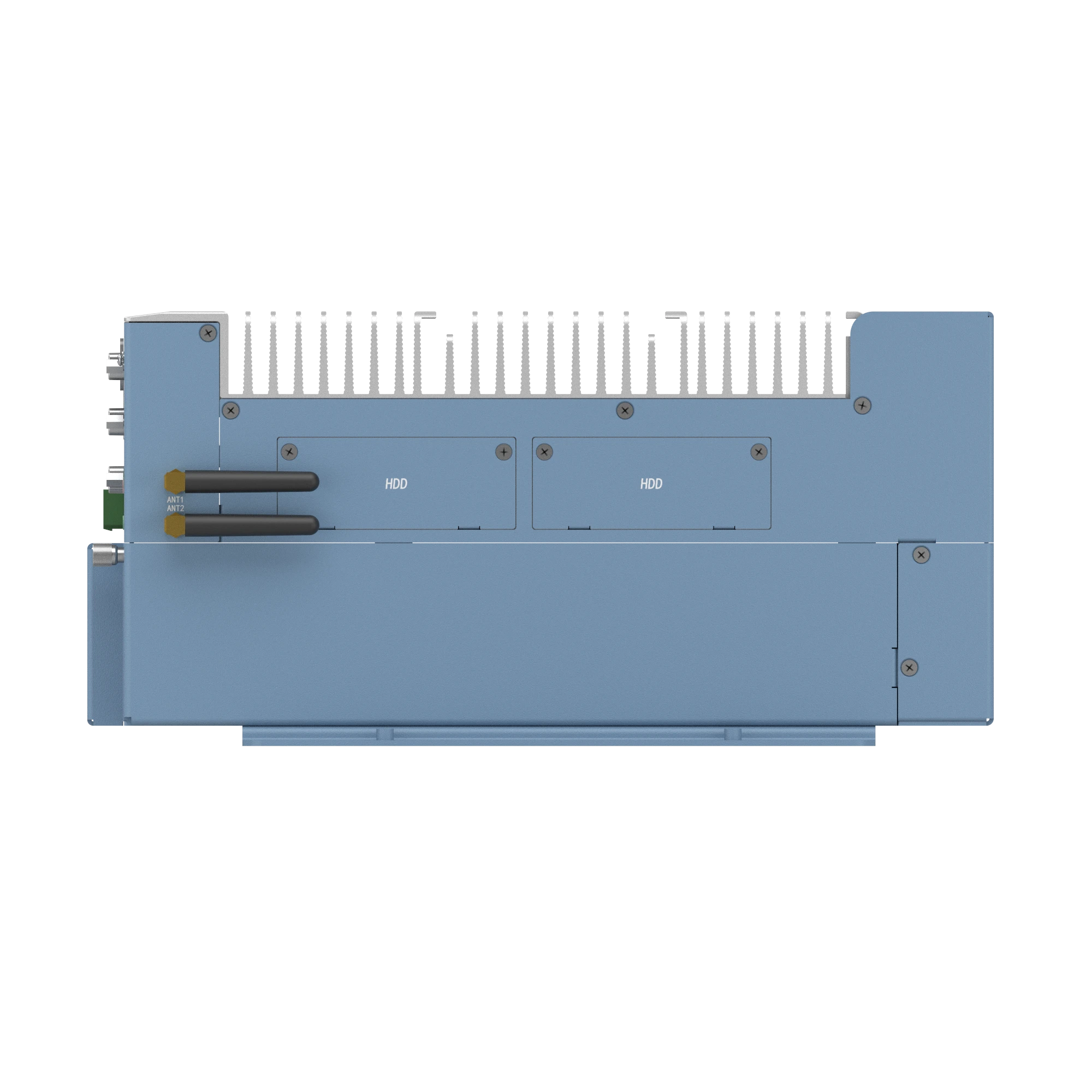

| Storage | 2*2.5”easy-plug SATA bay, larger capacity thickness15mm HDD, with SATA3.0 signal max 6Gbps;
1*full size mSATA，with SATA3.0 signal, max 6Gbps |

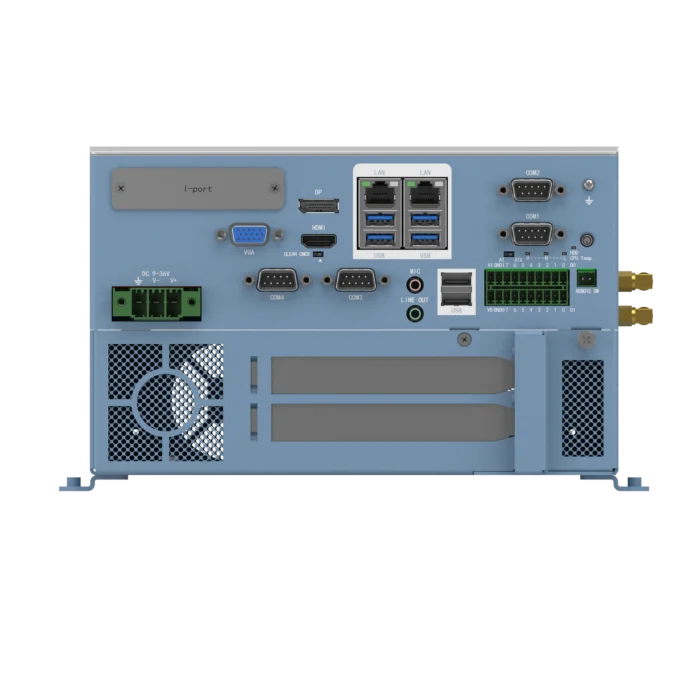

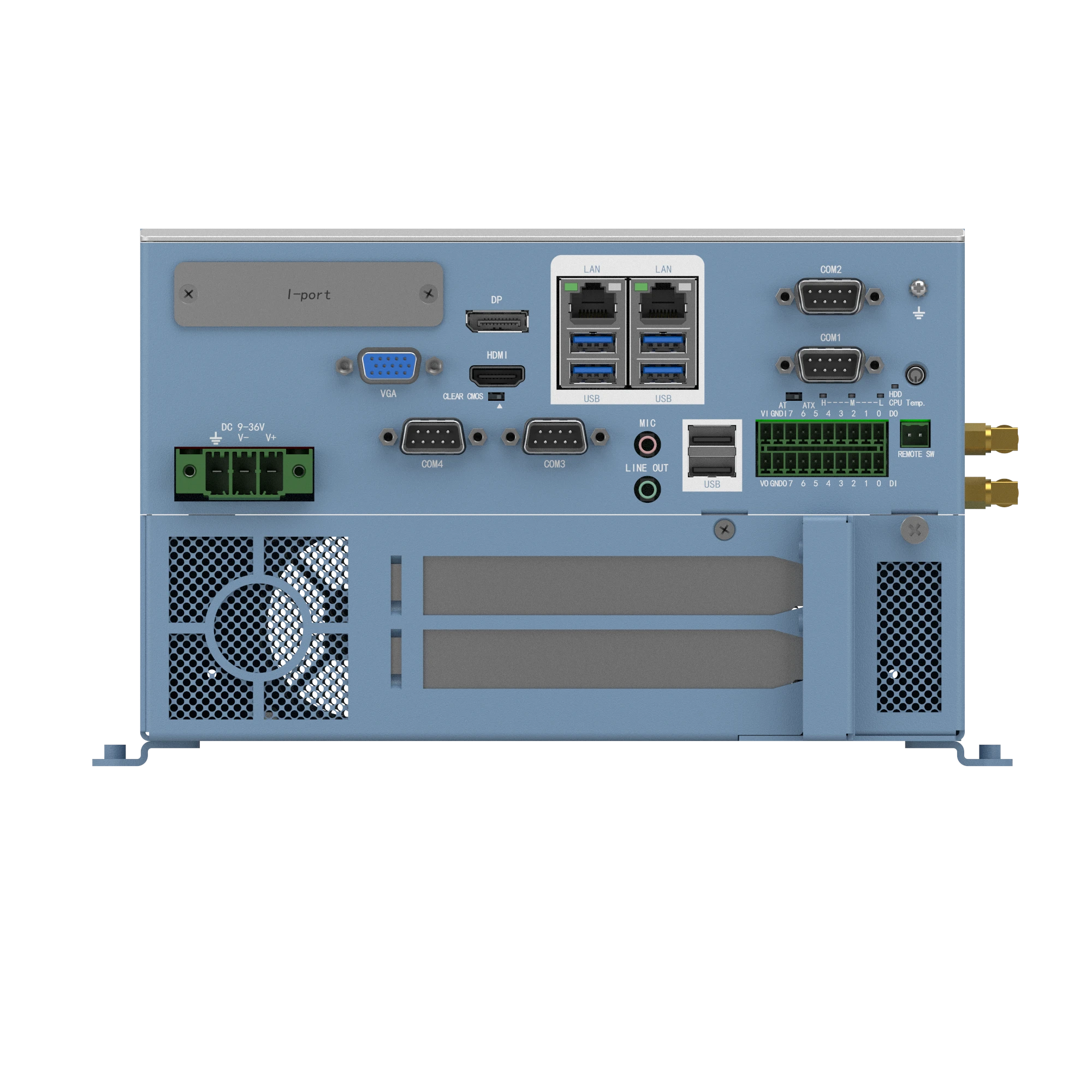

| I/O Interface | 2*RJ45 Gig-LAN; 2*USB3.2(gen2.0 10Gbps, Type A);
2*USB3.2 (gen1.0 5Gbps, Type A) ; 2*USB2.0 Type A, 2*USB2.0 (pin header inside); 2*RS232/422/485 (via BIOS , DB9 male), 2*RS232(DB9 male); 16bit Iso. DIO(2*10pin term. block) and 16bit non-iso. DIO(2*10pin header inside); 1*VGA+1*HDMI+1*DP; 1*Line out+1*Mic (3.5mm phone jack); 1*SM Bus and 1*F-Audio(pin header inside) |
| I-port | Support 16bit DIO pin header lead wire , USB2.0 or Mini PCIe and other expansion interfaces lead wire |
| DIO | 16bit Iso. DIO support NPN (sink) and PNP (Source) mode, and 8-bit DI each channel is equipped with a 2.5KV photocouper for isolated protection;
8-bit DO each DO with isolator chip, each DO chanel current up to 200mA |
| LED | 1*Power LED (on the power button), 1*HDD LED, 3*CPU temp LED（Red is warning , Yellow is high, Green is normal） |
| Control SW | 1*Power SW，1*Remote SW, 1*AT/ATX dip, 1*Clear CMOS dip |
| Power supply | DC IN 9-36V, 3-pin Term. block 7.62mm，with short circuit(SCP), over voltage(OVP) and over current(OCP) protection; TDP : TBD |
| Security | Support TPM2.0 (optional) |
| Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
| OS | Windows 11, Windows 10 IoT Enterprise 2021 LTSC, Ubuntu, SuSe, Red Hat Enterprise, Wind River Linux, Wind River VxWorks |
Data Sheet
KMDA-7920-S001 DS-EN
