Alat Ukur Ketebalan Logam A1207 Thickness Pengauge

Alat ukur ketebalan ini dapat mengukur ketebalan pada dinding boiler, vessel atau kapal kargo, pelat lambung kapal, dan benda lain yang terbuat dari logam besi dan non-besi, serta untuk pengukuran ketebalan ultrasonik pada pipa logam dan plastik berdiameter kecil (dari 20 mm)

Thickness measurement range (for steel) by dual-crystal and single-crystal transducers

0.8 to 50 mm / 0.02 to 2 inch

5 to 150 mm / 0.04 to 6 inch

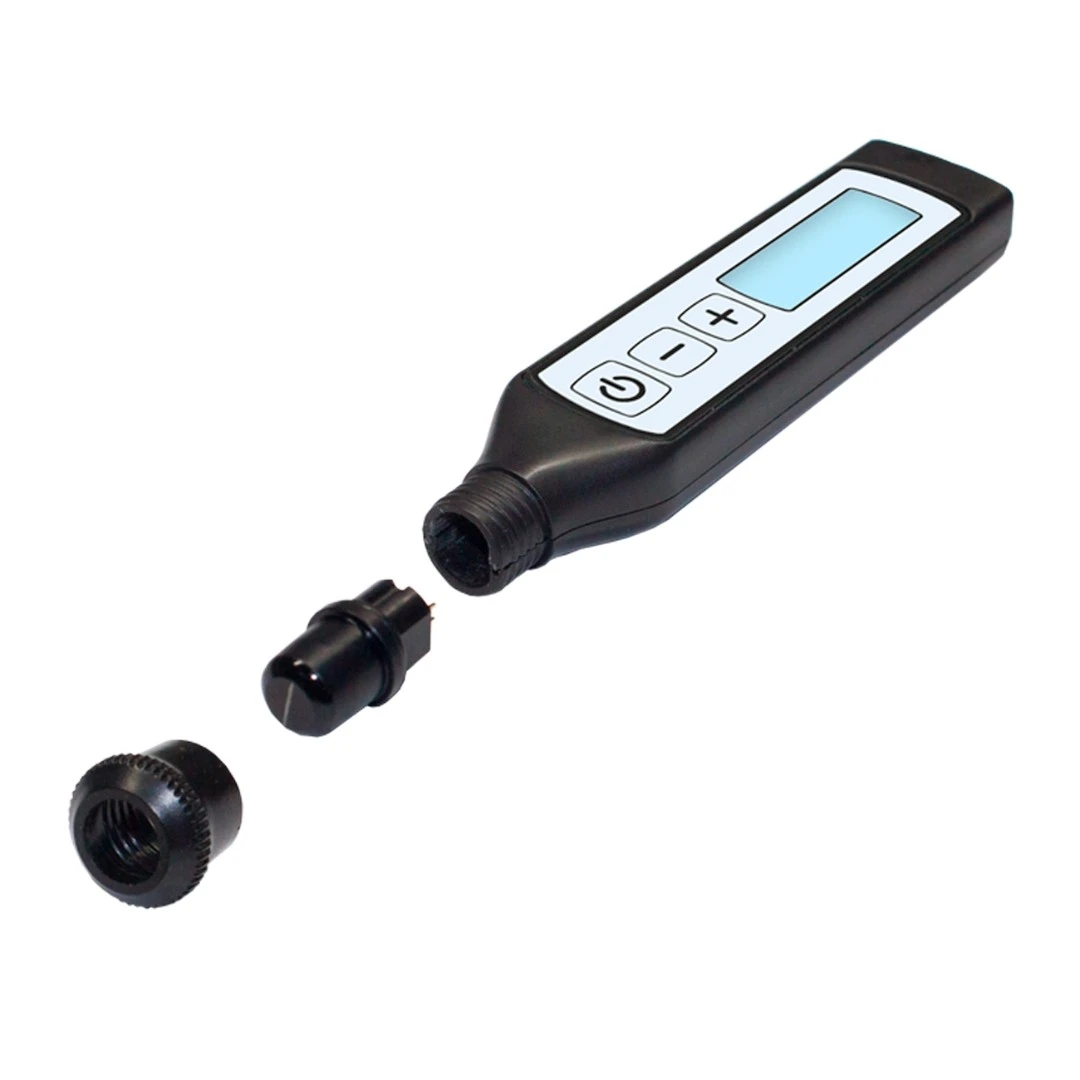

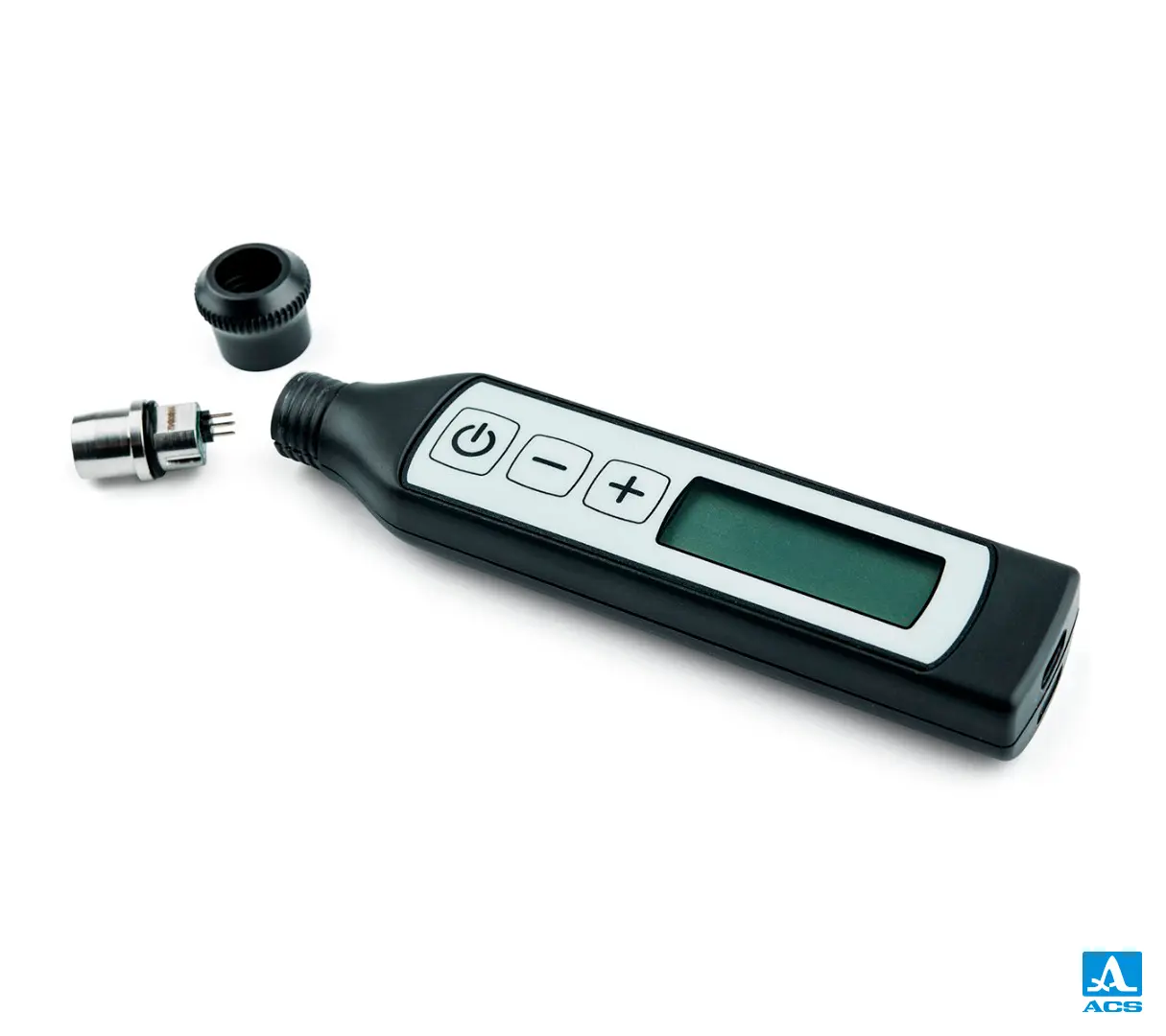

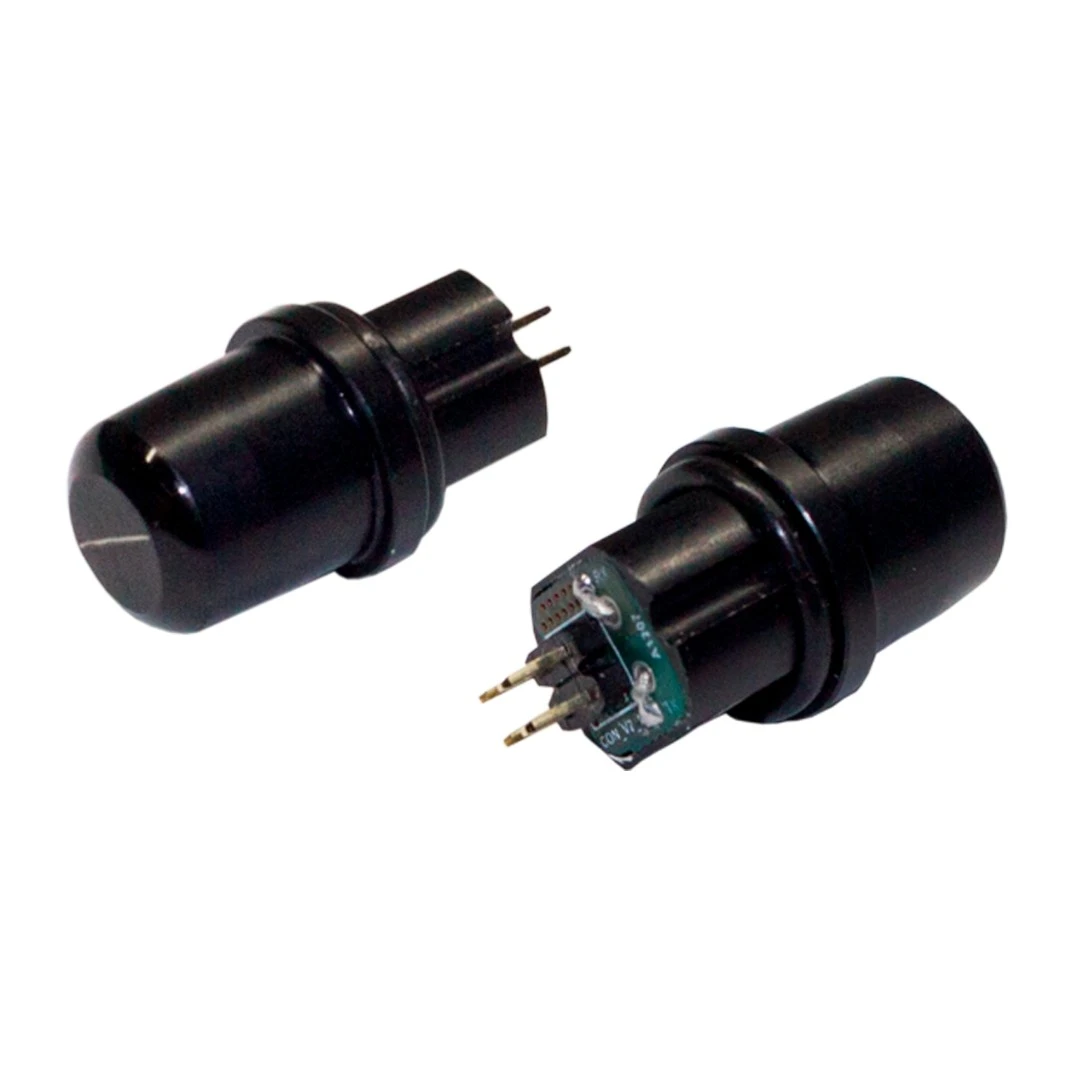

Type and frequency of the changeable transducer

Standard: dual-crystal, 7 MHz

Optional: single-crystal, 5 MHz

Diameter of the working surface of the dual-crystal and single-crystal transducers

6 mm / 0.24 inch

8 mm / 0.31 inch

Discreteness of measurements representation

0.1, 0.01 mm

Basic measurement accuracy for thickness X, not more:

± (0.005Х + 0.1) mm

Measurement units

mm, inches

Power

built-in LiPol rechargeable battery

Period of continuous operation of the instrument at positive temperatures

up to 16 hours

Operating temperature range

from -30 to +50 ˚С

Overall dimensions

130 х 30 х 20 mm

Weight

50 g

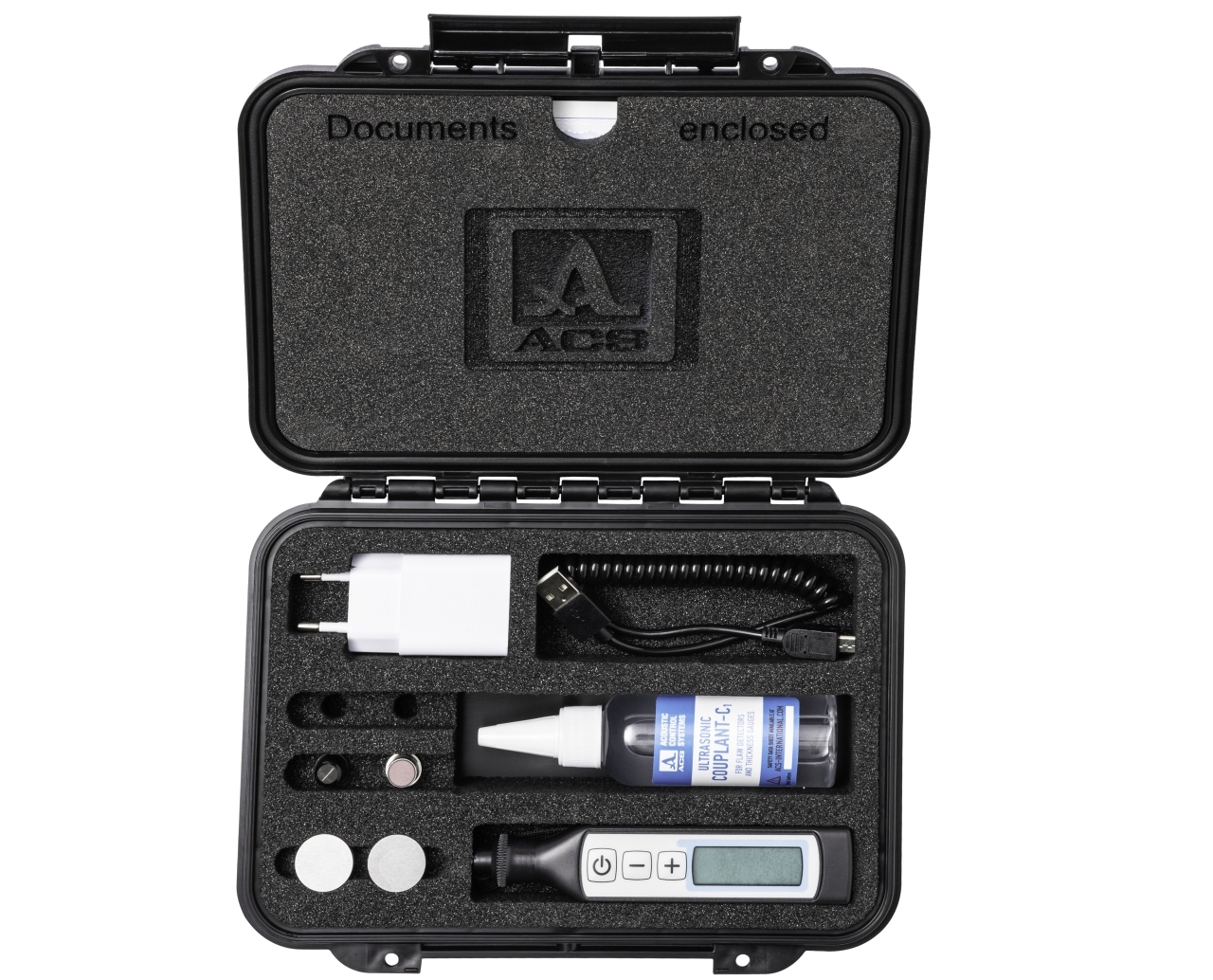

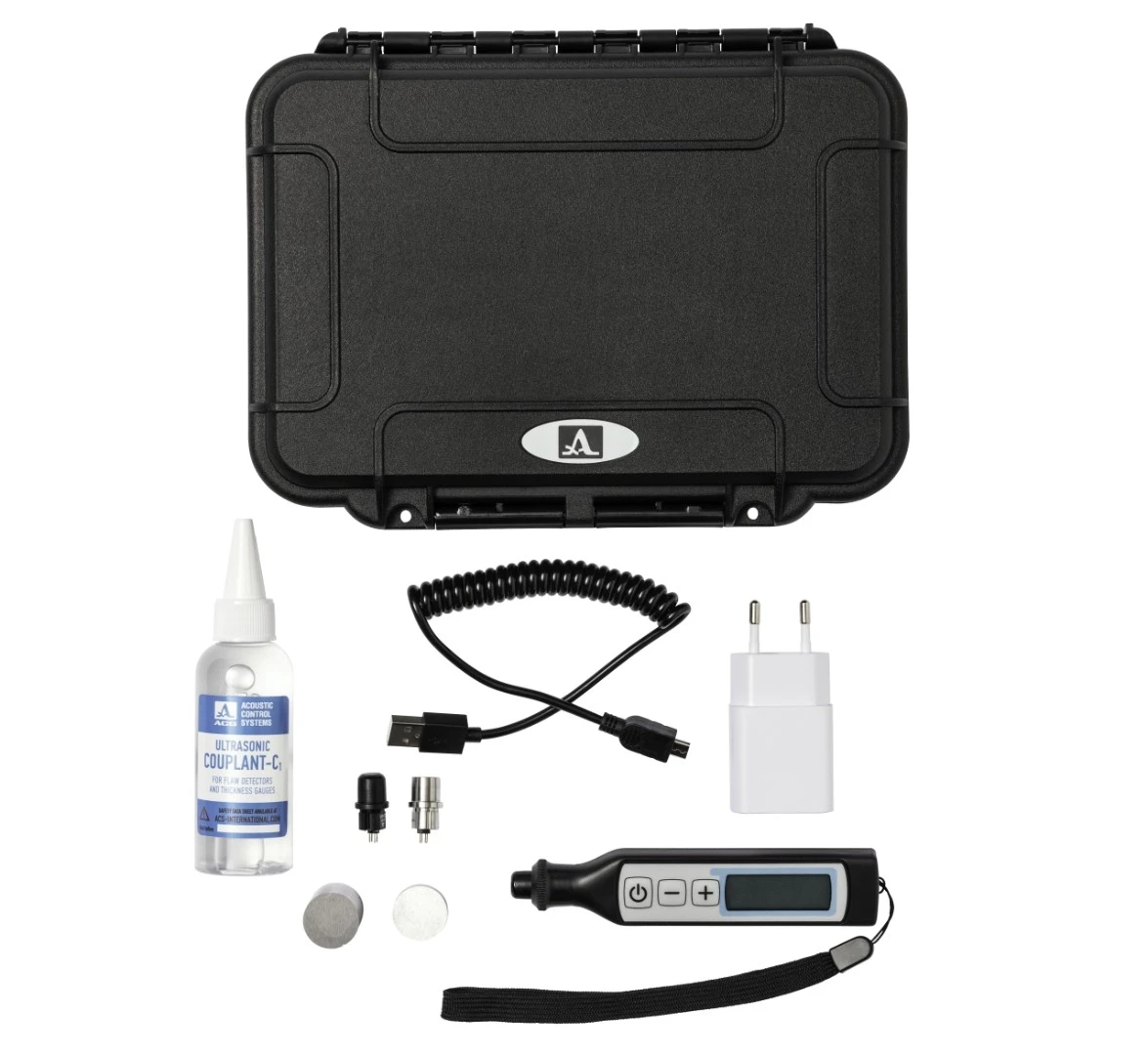

• Instrumen dengan built-in rechargeable battery
• Dual-crystal transducer D1572 (10 MHz, diameter 6 mm)

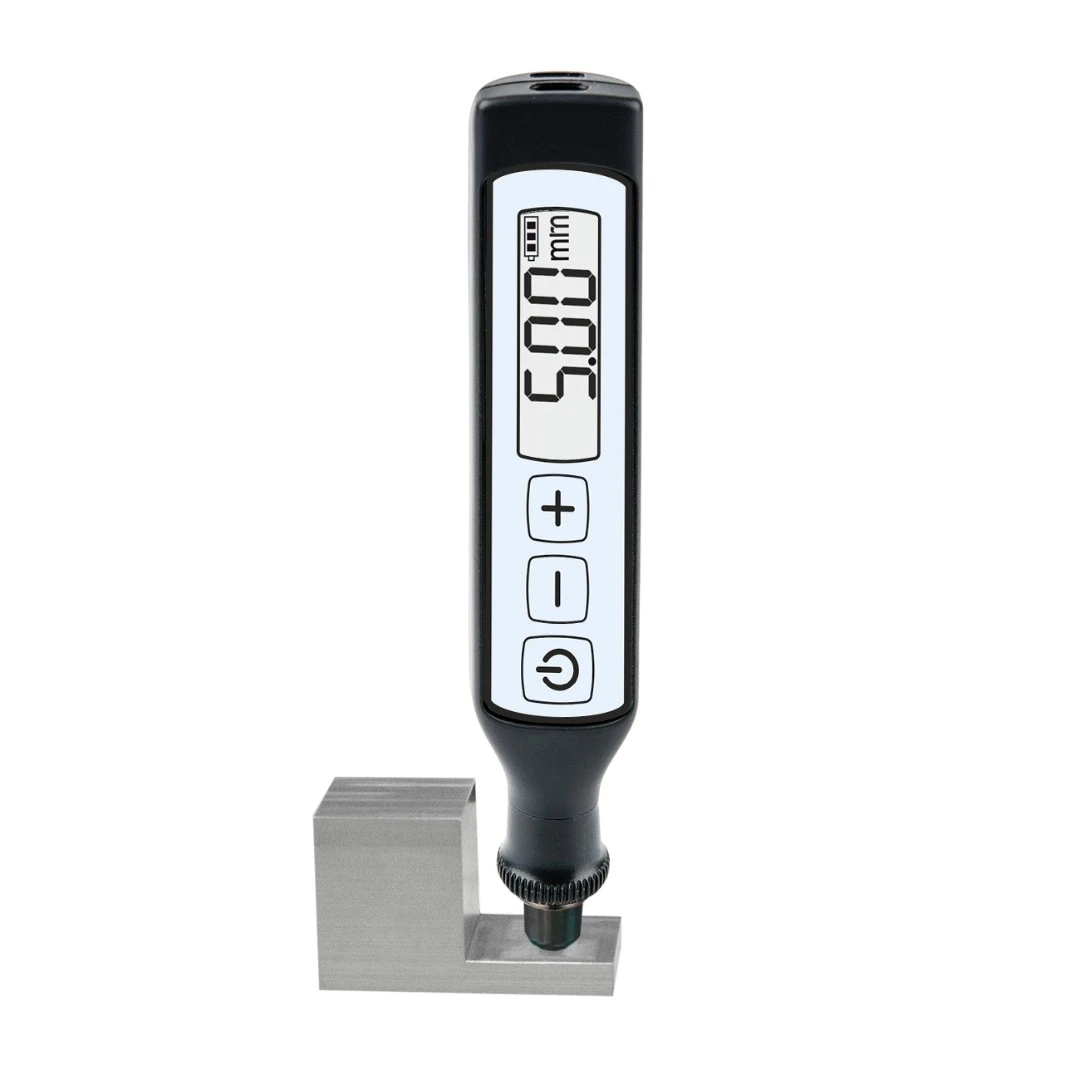

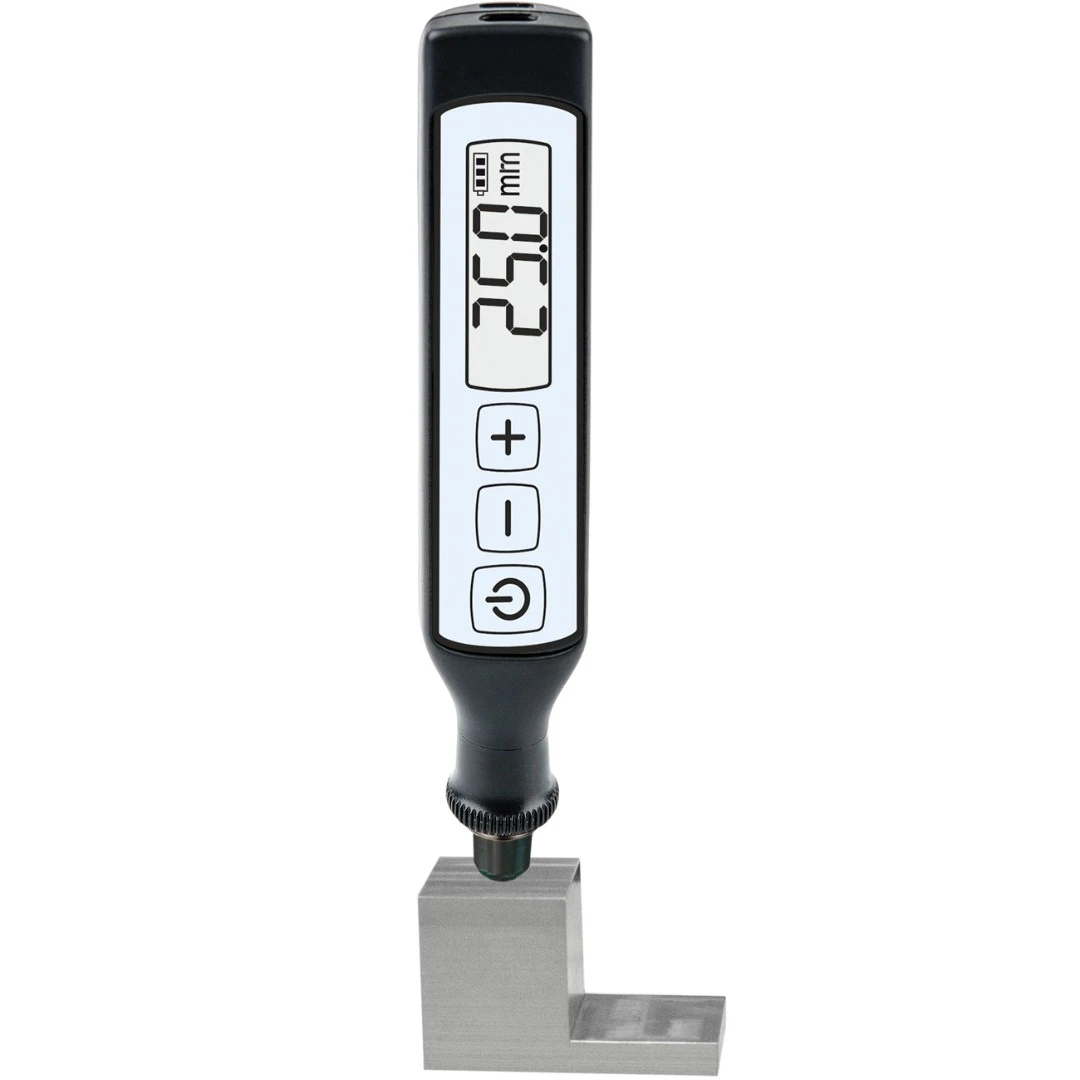

• sampel kalibrasi 5 mm and 25 mm
• Сouplant
• Power adapter & kabel USB
• Finger lanyard
• Hard shell carry case

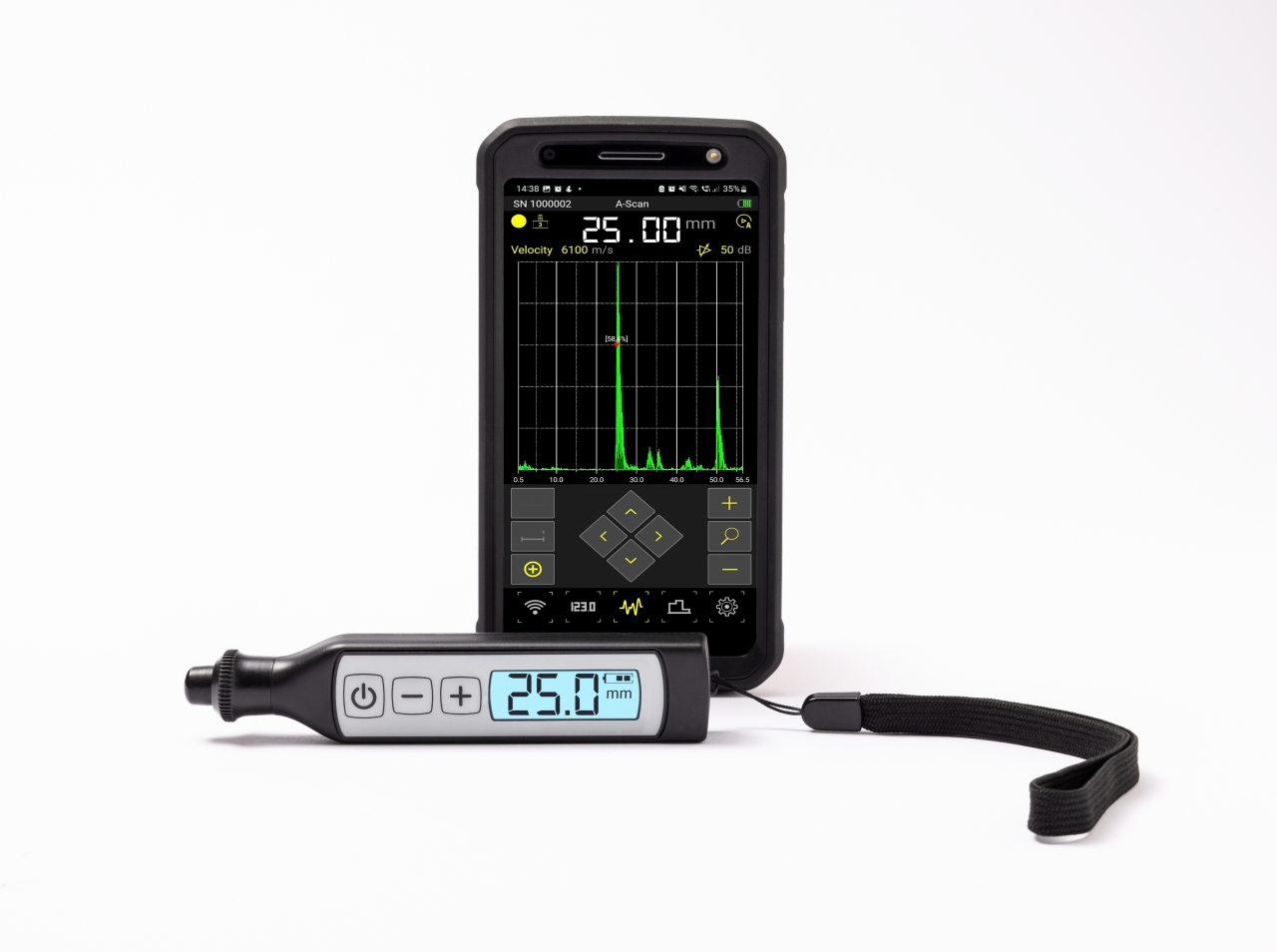

• Aplikasi gratis yang dapat diunduh untuk iOS & Android
• Opsional: Single-crystal transducer S1573 (10 MHz, diameter 8mm)

• Flyer Produk
• Material safety Data Sheet couplant
