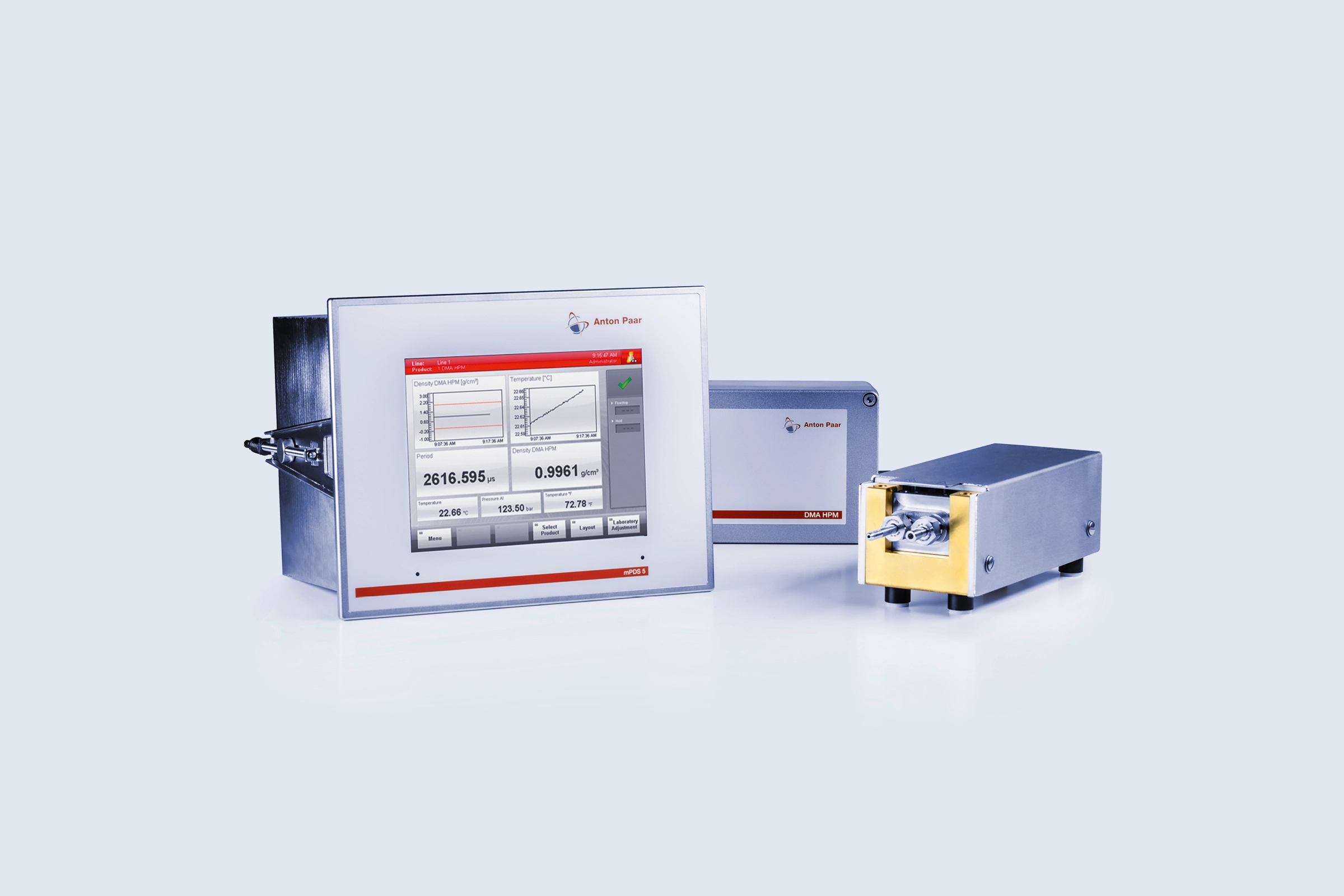

Alat ukur Densitas External Measuring Cell DMA HPM

Sel Pengukur Eksternal DMA HPM mengukur kepadatan pada tekanan sampel hingga 1400 bar dan suhu dari -10 hingga 200 °C

Sel Pengukur Eksternal DMA HPM mengukur kepadatan pada tekanan sampel hingga 1400 bar dan suhu dari -10 hingga 200 °C. Hubungkan unit evaluasi mPDS 5 untuk mengontrol DMA HPM dan membacakan data pengukuran. Untuk termostat DMA HPM gunakan ruang iklim, oven, atau bak pemanas atau pendingin.

Pengukuran massa jenis pada tekanan sampel hingga 1400 bar dan suhu dari -10 °C hingga 200 °C
Ideal untuk analisis PVT dan eksperimen peningkatan perolehan minyak (EOR).
Pembacaan data jarak jauh melalui unit evaluasi mPDS 5

Measuring range
Density	0 to 3 g/cm³
Pressure	0 to 1400 bar (0 to 20,300 psi)
Temperature	-10 to +200 °C (14 to 392 °F)
Accuracy
Density	Up to 0.0001 g/cm³
Repeatability s.d.
Density	Up to 0.00001 g/cm³
Digital Resolution
Density	0.00001 g/cm³
Additional information
Cell material	Hastelloy C-276
Volume of the measuring cell	approx. 2 mL
Dimensions (L x W x H) DMA HPM Interface module	210 x 78 x 86 mm (8.3 x 3.1 x 3.4 inches) 220 x 120 x 80 mm (8.7 x 4.7 x 3.1 inches)
Weight DMA HPM Interface module	8.3 kg (18.3 lbs) 1.5 kg (3.3 lbs)
Connections	Pressure fittings for metal tubes with 1/4″ outer diameter

Download Brosur Externall Measuring Cell DMA HPM

Alat ukur Densitas External Measuring Cell DMA HPM - Image 1

Click to enlarge

Compare

Add to wishlist

Category: Density Meter

Description

Measuring range
Density	0 to 3 g/cm³
Pressure	0 to 1400 bar (0 to 20,300 psi)
Temperature	-10 to +200 °C (14 to 392 °F)
Accuracy
Density	Up to 0.0001 g/cm³
Repeatability s.d.
Density	Up to 0.00001 g/cm³
Digital Resolution
Density	0.00001 g/cm³
Additional information
Cell material	Hastelloy C-276
Volume of the measuring cell	approx. 2 mL
Dimensions (L x W x H) DMA HPM Interface module	210 x 78 x 86 mm (8.3 x 3.1 x 3.4 inches) 220 x 120 x 80 mm (8.7 x 4.7 x 3.1 inches)
Weight DMA HPM Interface module	8.3 kg (18.3 lbs) 1.5 kg (3.3 lbs)
Connections	Pressure fittings for metal tubes with 1/4″ outer diameter
