Alat Ukur Densitas Compact Digital Density Meter DMA

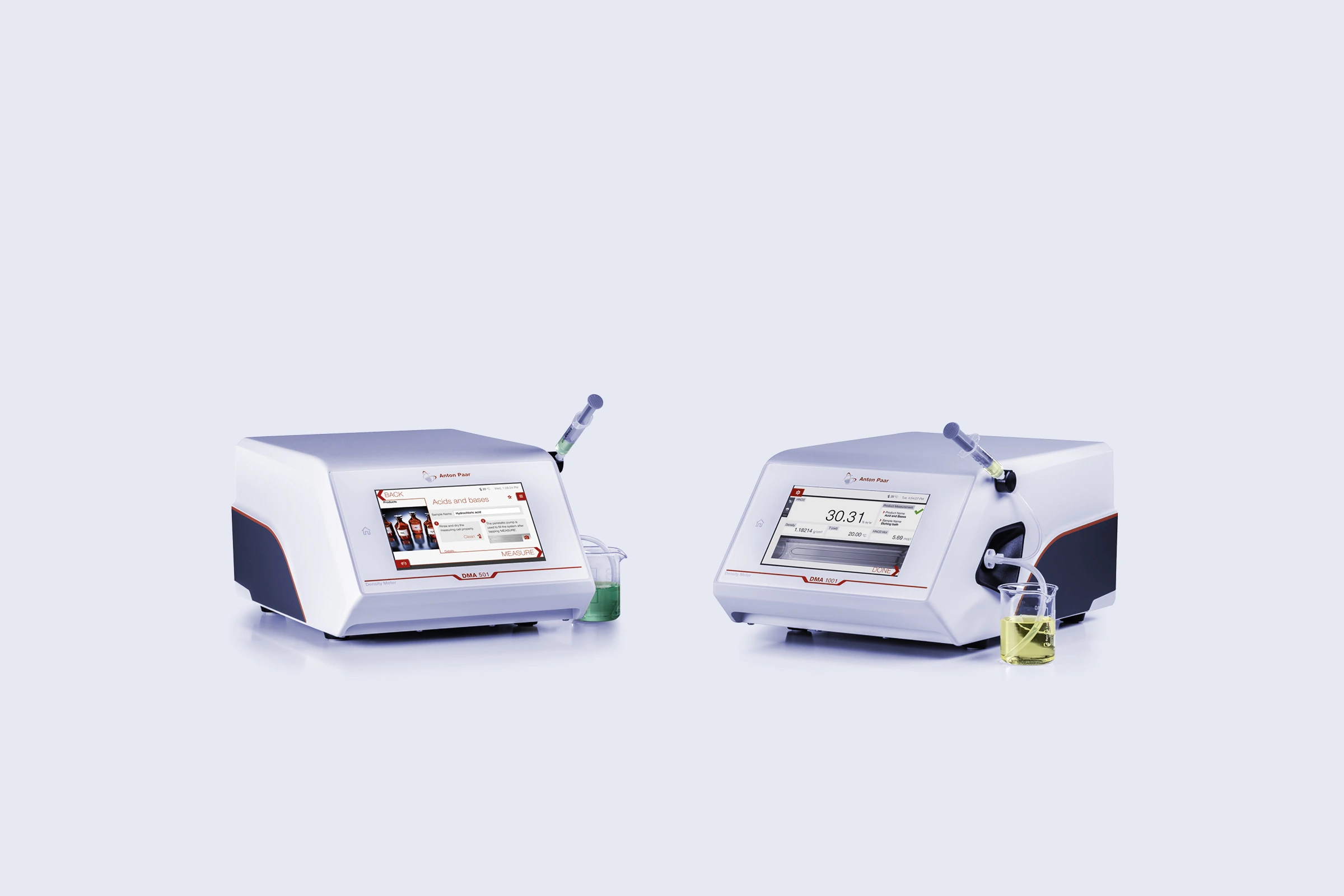

DMA 501 dan DMA 1001 adalah pengukur massa jenis digital tingkat awal yang akan merevolusi pekerjaan Anda di laboratorium serta pemeriksaan kualitas di lini produksi dan fasilitas penyimpanan.
Perubahan menjadi lebih baik: DMA 501 dan DMA 1001 adalah pengukur massa jenis digital tingkat awal yang akan merevolusi pekerjaan Anda di laboratorium serta pemeriksaan kualitas di lini produksi dan fasilitas penyimpanan. Dikembangkan dan diproduksi oleh pemimpin pasar dunia, produk ini menjawab tantangan untuk mempercepat pengukuran sampel yang pucat, tidak homogen, mengendap, dan mengandung partikel, dan bahkan semprotan aerosol. DMA 501 dan DMA 1001 adalah jawaban Anton Paar terhadap permintaan pelanggan kami di industri. Mereka siap untuk semua sampel dan bekerja dengan andal dalam kondisi yang sulit.
Kedua instrumen ini membuat pengukuran kepadatan digital dapat diakses oleh semua orang: Pertama, keduanya hadir dengan label harga yang tak tertandingi. Kedua, alur kerja pengguna yang dipandu, tata letak layar yang dapat disesuaikan, dan banyak fitur pendukung seperti FillingCheck™ dan pemantauan kondisi memastikan perangkat tersebut dapat dioperasikan hanya setelah pelatihan minimum.
Semua produk dikirimkan dengan kalibrasi pabrik.

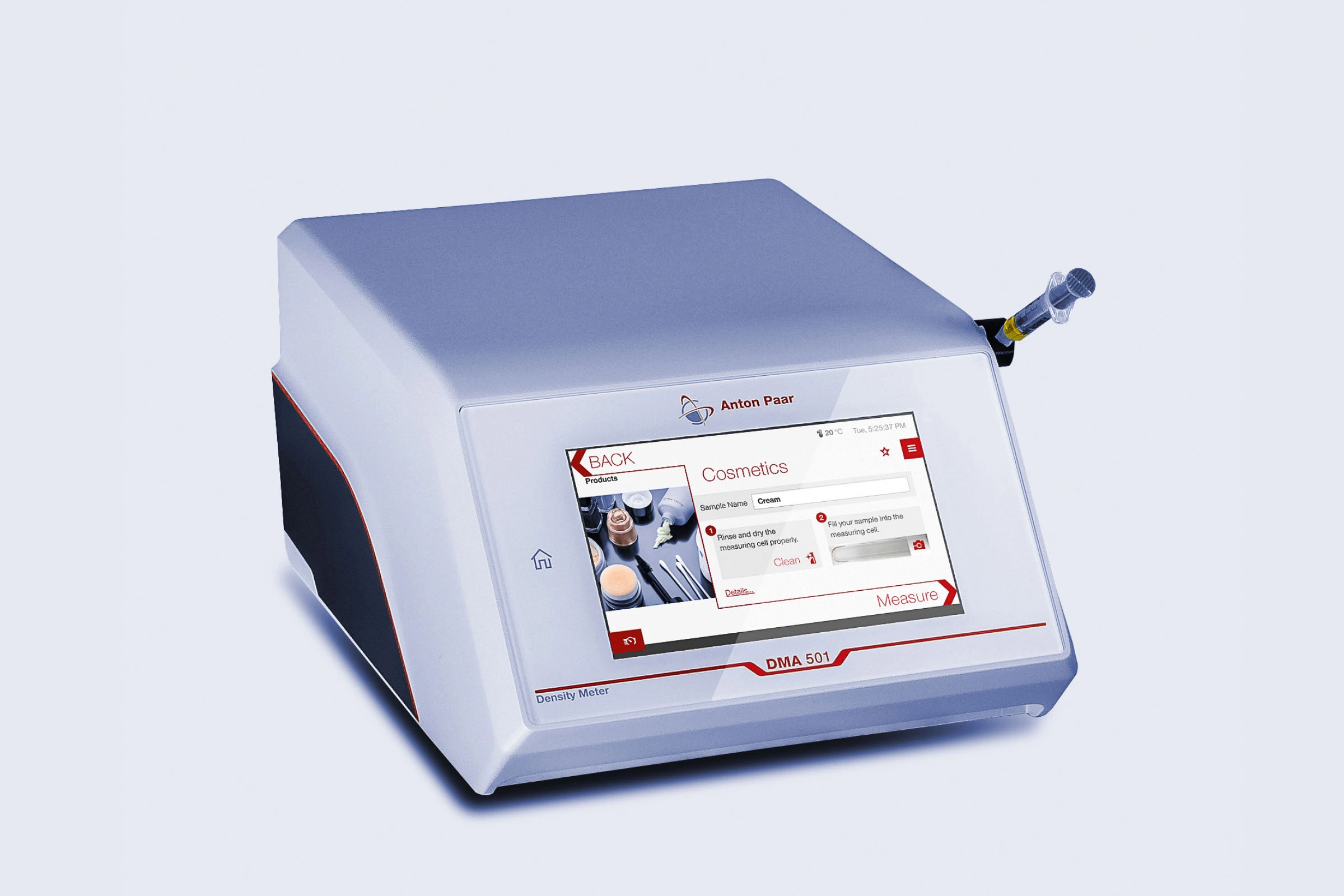

DMA 501
- Pengukuran kepadatan digital 3 digit dari pemimpin pasar
- Kecil tapi besar: hanya 1 mL volume sampel sehingga produk terbuang sia-sia
- Layar sentuh berukuran 7 inch ramah sarung tangan untuk kegunaan luar biasa
- Penghitungan otomatis dengan 60+ tabel konversi
- Siap untuk sampel yang pucat, tidak homogen, dan mengandung partikel

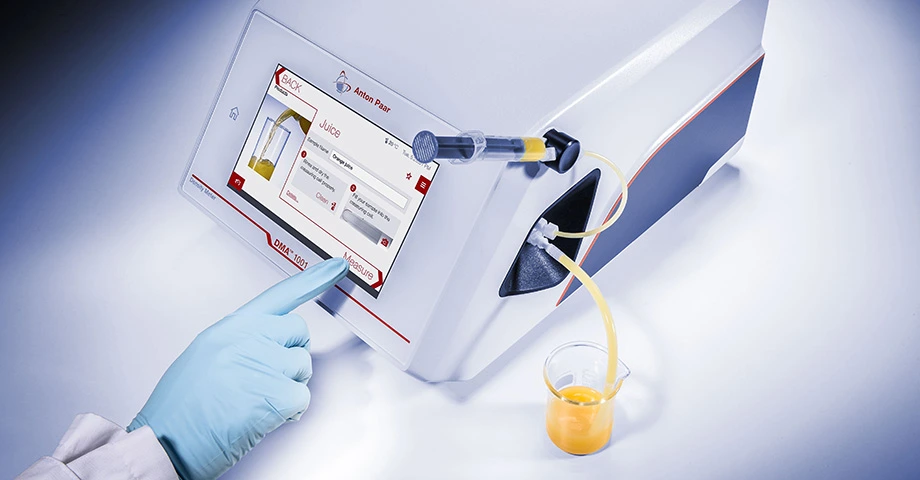

DMA 1001
- Pengukur massa jenis 4 digit tercanggih di segmen harga ini
- 100% hasil yang konsisten berkat kemampuan pengulangan 0,00005 g/cm3
- Mememnuhi standar ASTM D4052, ASTM D5002, ISO 12185, USP <841>, Ph.Eur. 2.25, JP 17 2.56, ChP(Vol IV) 0601, dan FDA CFR 21 Bagian 11
- Tahan percikan air, diagnosis mandiri instrumen, tidak ada korosi terkait ventilasi
| DMA 501 | DMA 1001 | |
| Patents | EP3012612B1, AT520632B1, US10145771B2 | EP3012612B1, AT520632B1, US10145771B2 |
| Measuring range | Density: 0 g/cm³ to 3 g/cm³ Pressure: 0 bar to 10 bar (0 psi to 145 psi) |
Density: 0 g/cm³ to 3 g/cm³ Pressure: 0 bar to 10 bar (0 psi to 145 psi) |
| Temperature: 15 °C to 40 °C (59 °F to 104 °F) | Temperature: 15 °C to 60 °C (59 °F to 140 °F) | |
| Repeatability, s.d.* | Density: 0.0002 g/cm³ Temperature: 0.1 °C (0.2 °F) |
Density: 0.00005 g/cm³ Temperature: 0.02 °C (0.04 °F) |
| Reproducibility, s.d.* | Density: 0.0004 g/cm³ | Density: 0.00007 g/cm³ |
| Accuracy** | Density: 0.001 g/cm³ Temperature: 0.3 °C (0.6 °F) |
Density: 0.0001 g/cm³ Temperature: 0.05 °C (0.09 °F) |
| Digital Resolution | Density: 0.0001 g/cm³ Temperature: 0.01 °C (0.01 °F) |
Density: 0.00001 g/cm³ Temperature: 0.01 °C (0.01 °F) |
| U-View™ | Yes | Yes |
| FillingCheck™ | Yes | Yes |
| Full-range viscosity correction | Yes | Yes |
| Minimum sample volume | Approx. 1 mL | Approx. 1 mL |
| Integrated tables and functions | Density, Specific Gravity (SG), alcohol tables, sugar/extract tables, various acid/base tables, API functions | Density, Specific Gravity (SG), alcohol tables, sugar/extract tables, various acid/base tables, API functions |
| Wetted parts | Borosilicate glass, PTFE | Borosilicate glass, PTFE |
| Dimensions (L x W x H) | 375 mm x 265 mm x 180 mm (14.8 in x 10.4 in x 7.0 in) | 375 mm x 265 mm x 180 mm (14.8 in x 10.4 in x 7.0 in) |
| Weight | 13.5 kg (29.8 lb) | 13.5 kg (29.8 lb) |
| Power supply | AC 100 to 240 V; 47 to 63 Hz; DC 24V, 3A | AC 100 to 240 V; 47 to 63 Hz; DC 24V, 3A |
| Display | 7 inches, TFT WVGA (800 x 480 Px); PCAP touchscreen | 7 inches, TFT WVGA (800 x 480 Px); PCAP touchscreen |
| Controls | Touchscreen, optional keyboard, mouse, and bar code reader | Touchscreen, optional keyboard, mouse, and bar code reader |
| Communication interfaces | 1 x Ethernet, 3 x USB, 1 x RS232 | 1 x Ethernet, 3 x USB, 1 x RS232 |
| Internal storage | 5000 measured results; 400 products | 5000 measured results; 400 products |
| Other special functions | Integrated temperature and humidity sensor for intelligent condition monitoring
Built-in pressure sensor for adjustments |
Integrated temperature and humidity sensor for intelligent condition monitoring
Built-in pressure sensor for adjustments Quick one-point water adjustment |
| Menu language | English, German, Chinese, Czech, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish | English, German, Chinese, Czech, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish |
| Available options & upgrades | Peristaltic pump Printers Aerosol filling adapter Filling kit for pasty samples ISO calibration AP Connect lab execution software |
Peristaltic pump Printers Aerosol filling adapter Filling kit for pasty samples ISO calibration AP Connect lab execution software |
*menurut ISO 5725
** dalam kondisi ideal dan untuk kepadatan/viskositas rendah
Download Brosur Density Meter DMAÂ
DMA 501
- Pengukuran kepadatan digital 3 digit dari pemimpin pasar
- Kecil tapi besar: hanya 1 mL volume sampel sehingga produk terbuang sia-sia
- Layar sentuh berukuran 7 inch ramah sarung tangan untuk kegunaan luar biasa
- Penghitungan otomatis dengan 60+ tabel konversi
- Siap untuk sampel yang pucat, tidak homogen, dan mengandung partikel
DMA 1001
- Pengukur massa jenis 4 digit tercanggih di segmen harga ini
- 100% hasil yang konsisten berkat kemampuan pengulangan 0,00005 g/cm3
- Mememnuhi standar ASTM D4052, ASTM D5002, ISO 12185, USP <841>, Ph.Eur. 2.25, JP 17 2.56, ChP(Vol IV) 0601, dan FDA CFR 21 Bagian 11
- Tahan percikan air, diagnosis mandiri instrumen, tidak ada korosi terkait ventilasi
| DMA 501 | DMA 1001 | |
| Patents | EP3012612B1, AT520632B1, US10145771B2 | EP3012612B1, AT520632B1, US10145771B2 |
| Measuring range | Density: 0 g/cm³ to 3 g/cm³ Pressure: 0 bar to 10 bar (0 psi to 145 psi) |
Density: 0 g/cm³ to 3 g/cm³ Pressure: 0 bar to 10 bar (0 psi to 145 psi) |
| Temperature: 15 °C to 40 °C (59 °F to 104 °F) | Temperature: 15 °C to 60 °C (59 °F to 140 °F) | |
| Repeatability, s.d.* | Density: 0.0002 g/cm³ Temperature: 0.1 °C (0.2 °F) |
Density: 0.00005 g/cm³ Temperature: 0.02 °C (0.04 °F) |
| Reproducibility, s.d.* | Density: 0.0004 g/cm³ | Density: 0.00007 g/cm³ |
| Accuracy** | Density: 0.001 g/cm³ Temperature: 0.3 °C (0.6 °F) |
Density: 0.0001 g/cm³ Temperature: 0.05 °C (0.09 °F) |
| Digital Resolution | Density: 0.0001 g/cm³ Temperature: 0.01 °C (0.01 °F) |
Density: 0.00001 g/cm³ Temperature: 0.01 °C (0.01 °F) |
| U-View™ | Yes | Yes |
| FillingCheck™ | Yes | Yes |
| Full-range viscosity correction | Yes | Yes |
| Minimum sample volume | Approx. 1 mL | Approx. 1 mL |
| Integrated tables and functions | Density, Specific Gravity (SG), alcohol tables, sugar/extract tables, various acid/base tables, API functions | Density, Specific Gravity (SG), alcohol tables, sugar/extract tables, various acid/base tables, API functions |
| Wetted parts | Borosilicate glass, PTFE | Borosilicate glass, PTFE |
| Dimensions (L x W x H) | 375 mm x 265 mm x 180 mm (14.8 in x 10.4 in x 7.0 in) | 375 mm x 265 mm x 180 mm (14.8 in x 10.4 in x 7.0 in) |
| Weight | 13.5 kg (29.8 lb) | 13.5 kg (29.8 lb) |
| Power supply | AC 100 to 240 V; 47 to 63 Hz; DC 24V, 3A | AC 100 to 240 V; 47 to 63 Hz; DC 24V, 3A |
| Display | 7 inches, TFT WVGA (800 x 480 Px); PCAP touchscreen | 7 inches, TFT WVGA (800 x 480 Px); PCAP touchscreen |
| Controls | Touchscreen, optional keyboard, mouse, and bar code reader | Touchscreen, optional keyboard, mouse, and bar code reader |
| Communication interfaces | 1 x Ethernet, 3 x USB, 1 x RS232 | 1 x Ethernet, 3 x USB, 1 x RS232 |
| Internal storage | 5000 measured results; 400 products | 5000 measured results; 400 products |
| Other special functions | Integrated temperature and humidity sensor for intelligent condition monitoring
Built-in pressure sensor for adjustments |
Integrated temperature and humidity sensor for intelligent condition monitoring
Built-in pressure sensor for adjustments Quick one-point water adjustment |
| Menu language | English, German, Chinese, Czech, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish | English, German, Chinese, Czech, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish |
| Available options & upgrades | Peristaltic pump Printers Aerosol filling adapter Filling kit for pasty samples ISO calibration AP Connect lab execution software |
Peristaltic pump Printers Aerosol filling adapter Filling kit for pasty samples ISO calibration AP Connect lab execution software |
*menurut ISO 5725
** dalam kondisi ideal dan untuk kepadatan/viskositas rendah
