Pengukur Tekanan & Ketinggian Air Presisi – Sensor Level Air HOBO MX2001-04-Ti-S
Sensor Level Air MX2001-04-Ti-S digunakan bersama HOBO Data Logger dan Stasiun Monitoring untuk pengukuran tekanan air, suhu, dan level air dengan akurasi tinggi. Tersedia dalam material titanium, ideal untuk penggunaan di air tawar maupun air asin.
Water Level Sensor MX2001-04-Ti-S adalah sensor presisi tinggi yang dirancang khusus untuk memantau tekanan air, suhu, dan ketinggian air dengan akurat. Sensor ini bekerja dengan HOBO Bluetooth Low Energy Water Level Data Logger (MX2001), HOBO MicroRX Water Level Stations (RX2103/RX2104), serta HOBO RX3000 Remote Monitoring Station, sehingga fleksibel digunakan di berbagai aplikasi monitoring air.

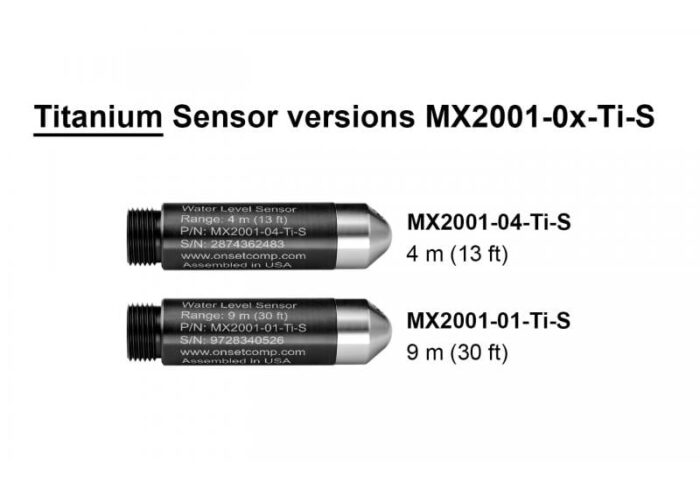

Sensor MX2001-04-Ti-S hadir dalam desain tahan lama dengan material titanium, yang direkomendasikan untuk penggunaan di lingkungan air asin maupun kondisi ekstrem. Material ini membuat sensor lebih tahan korosi dibanding stainless steel, sehingga cocok digunakan pada penelitian laut, pemantauan kualitas air, hingga manajemen sumber daya air.
Dari sisi kinerja, sensor ini memiliki rentang operasi 0–145 kPa atau sekitar 0–4 meter kedalaman air di permukaan laut, dengan resolusi hingga 0,14 cm dan akurasi kesalahan maksimum hanya 0,6 cm. Waktu respons tekanan sangat cepat (<1 detik pada suhu stabil), sehingga memberikan data real-time yang konsisten.
Selain itu, MX2001-04-Ti-S juga mampu mengukur suhu air dengan rentang -20°C hingga 50°C, akurasi ±0,44°C, dan resolusi 0,1°C. Desain tanpa ventilasi (non-vented) mengurangi kebutuhan perawatan, serta sudah memiliki sertifikat kalibrasi NIST 3 titik untuk menjamin keandalan data.
Sensor ini memiliki rating IP68 yang berarti tahan air sepenuhnya dan dapat digunakan dalam kondisi lingkungan yang berat. Dengan ukuran kompak (diameter 2,54 cm, panjang 9,91 cm) serta bobot ringan (±80 g di udara), pemasangan di lapangan menjadi mudah dan praktis.
Secara keseluruhan, HOBO MX2001-04-Ti-S merupakan solusi sensor level air yang presisi, handal, dan tahan lama. Sangat cocok untuk riset lingkungan, pemantauan sungai, danau, waduk, hingga aplikasi kelautan.
SpesifikasiÂ

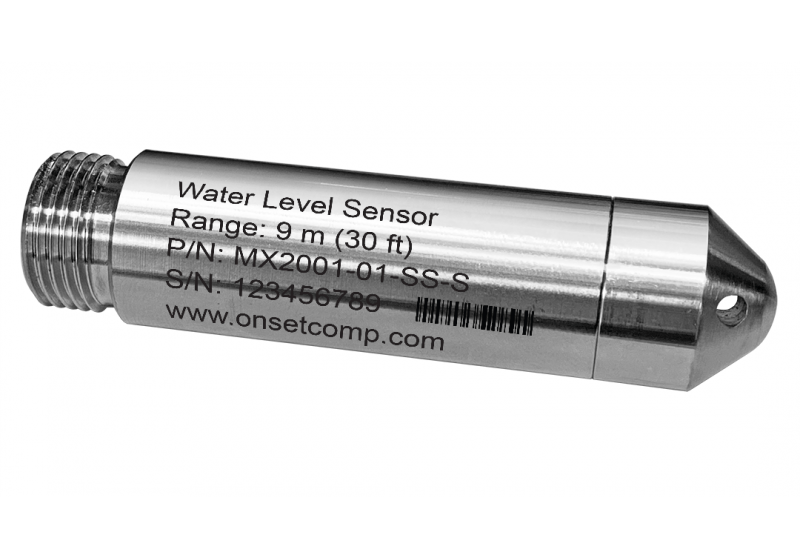

| Pressure (Absolute) and Water Level Measurements MX2001-01-SS-S and MX2001-01-Ti-S | |
| Operation Range | 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 207 kPa (10 to 30 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth |
| Water Level Accuracy* | Typical error: 0.05% FS, 0.5 cm (0.015 ft) water Maximum error: 0.1% FS, 1.0 cm (0.03 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 0.62 kPa (0.09 psi) maximum error |
| Resolution | <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Stainless sensor (MX2001-0x-SS-S): Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |

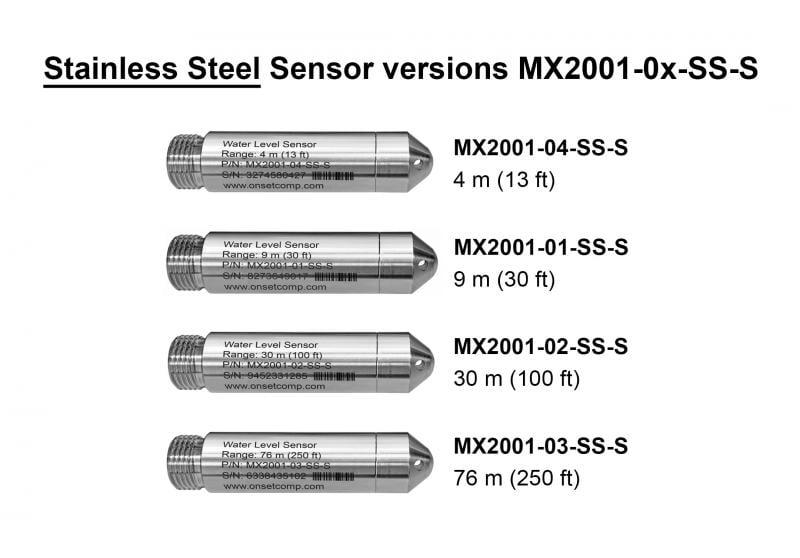

| Wetted Materials | Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing, PVC end cap; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Pressure (Absolute) and Water Level Measurements MX2001-02-SS-S | |
| Operation Range | 0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 400 kPa (10 to 58 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 500 kPa (72.5 psia) or 40.8 m (134 ft) depth |
| Water Level Accuracy* | Typical error: 0.05% FS, 1.5 cm (0.05 ft) water Maximum error: 0.1% FS, 3.0 cm (0.1 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 1.20 kPa (0.17 psi) maximum error |
| Resolution | <0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | Â 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water |
| Wetted Materials | Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Pressure (Absolute) and Water Level Measurements MX2001-03-SS-S | |
| Operation Range | 0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 850 kPa (10 to 123.3 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 1,200 kPa (174 psia) or 112 m (368 ft) depth |
| Water Level Accuracy* | Typical error: 0.05% FS, 3.8 cm (0.125 ft) water Maximum error: 0.1% FS, 7.6 cm (0.25 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 2.55 kPa (0.37 psi) maximum error |
| Resolution | <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | Â 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water |
| Wetted Materials | Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Pressure (Absolute) and Water Level Measurements MX2001-04-SS-S and MX2001-04-Ti-S | |
| Operation Range | 0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 145 kPa (10 to 21 psia), 0 to 40C (32 to 104F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth |
| Water Level Accuracy* | Typical error: 0.075% FS, 0.3 cm (0.01 ft) water Maximum error: 0.15% FS, 0.6 cm (0.02 ft) water |
| Raw Pressure Accuracy** | 0.3% FS, 0.43 kPa (0.063 psi) maximum error |
| Resolution | <0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Dimensions | 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Stainless sensor (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| Temperature (Water Level Sensors MX2001-0x-SS-S and MX2001-0x-Ti-S) | |
| Operation Range | -20 to 50C (-4 to 122F) |
| Accuracy | 0.44C from 0 to 50C (0.79F from 32 to 122F), see Plot A |
| Resolution | 0.1C at 25C (0.18F at 77F), see Plot A |
| Response Time (90%) | 5 minutes in water (typical) |
| Stability (Drift) | 0.1C (0.18F) per year |
| Dimensions | 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length |
| Weight | Stainless sensor (MX2001-0x-SS-S): Approximately 141.4Â g (4.99Â oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Stainless sensor (MX2001-0x-SS-S): Stainless steel housing; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor (MX2001-0x-Ti-S): Acetal housing; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap Cable: Polycarbonate top end connector, PVC end cap (sensor connection), nylon collar nut(s), Viton O-rings, polyurethane jacket |
| Environmental Rating | IP68 |
| MX2001 | RX2103/4 | RX3000 | |
|---|---|---|---|
| Communications | Bluetooth Low Energy | Cellular | Ethernet, WiFi, Cellular |
| Logger Dimensions | 2.54 cm (1.0 in.) diameter, 28.9 cm (11.4 in.) length |
19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.) |
18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.) |
| Smart Sensor Ports | - | 5 | 10 |
| Module Ports | None | 2 | |
| On-Board Barometric Sensor | Yes | With required Water Level Module (RXMOD-W1) | |
| Water Level Sensor (MX2001-xx-xx-S) |
Included | Purchased separately | |
| Data Plans | - | Cellular data plans available at additional cost | Included in price for WiFi and Ethernet stations; Additional cost for Cellular |
FiturÂ
- Desain tanpa ventilasi mengurangi perawatan
- Tahan lama, sensor keramik dapat menahan pembekuan
- Sertifikat kalibrasi yang dapat dilacak NIST 3 titik
Pertanyaan Umum
Untuk mengukur tekanan air, ketinggian air, serta suhu dengan akurasi tinggi.
Ya, versi titanium (Ti-S) direkomendasikan untuk penggunaan di air asin karena tahan korosi.
Hingga sekitar 4 meter (13 ft) pada permukaan laut.
Ya, memiliki rating IP68 yang sepenuhnya tahan air dan cocok untuk lingkungan ekstrem
Ya, disarankan melakukan kalibrasi tahunan. Sensor ini sudah dilengkapi sertifikat kalibrasi NIST 3 titik.
Untuk informasi pengiriman & ketersediaan produk, hubungi kami di :
📧 Email: [email protected]
📞 Telepon Kantor: (021) 8690-6782 | (021) 8690-6783
📱 WhatsApp / HP: 0813-9838-7525 | 0816-1740-8900
