Testing Instrument A1570 EMAT (OEM)
Unit frontend OEM Ultrasonic Pulser-Receiver untuk pengukuran ketebalan bebas couplant melalui transduser akustik elektromagnetik
Deskripsi
Aplikasi
Spesifikasi
Paket Pengiriman
Unduh
Deskripsi

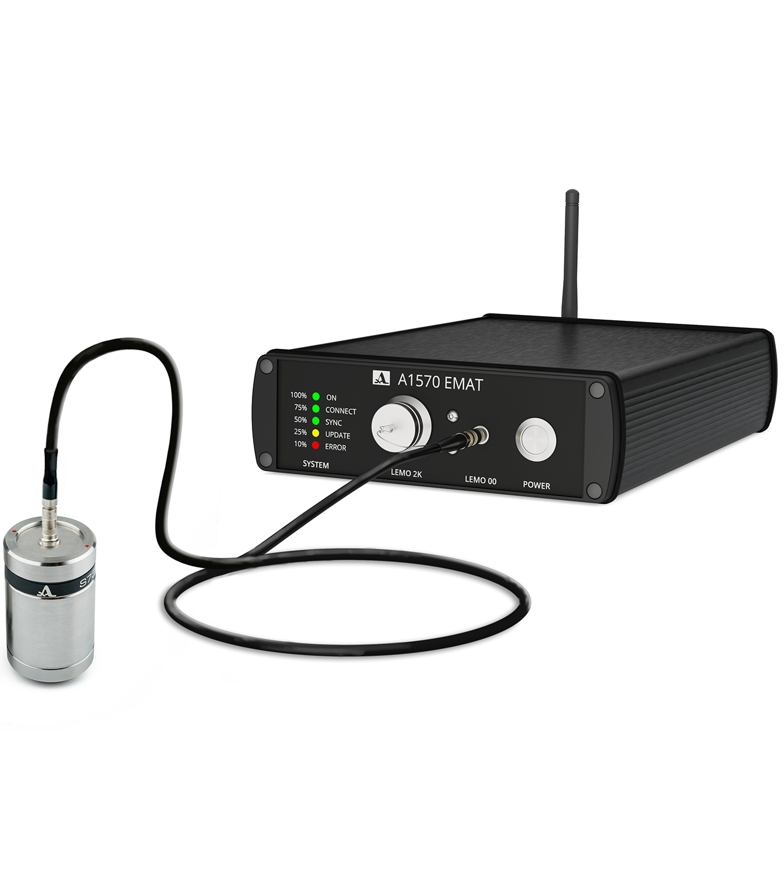

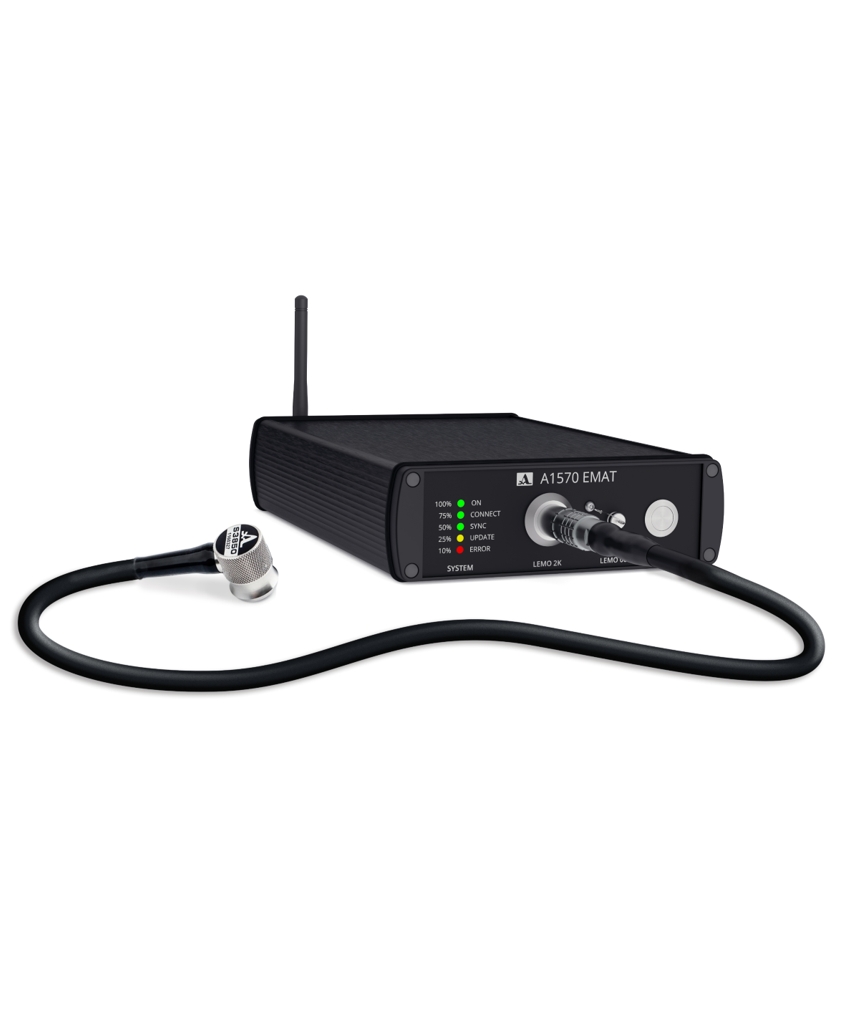

A1570 EMAT is the high-end EMAT data acquisition frontend unit designed for integration in automated inspection setups & scanning systems (crawlers) for couplant-free thickness measurements on metallic objects. The pulser and receiver of A1570 EMAT can drive the regular EMAT transducers with permanent magnets as well as the novel EMAT probes with pulse magnetization. The instrument possesses an integrated battery and wireless data interface for stand-alone operation.
With the well-documented SDK the user is enabled to develop his own software applications for customized inspection tasks.
Aplikasi
A1570 EMAT is dedicated to conducting ultrasonic thickness measurements by means of electromagnetic-acoustic transducers. The instrument is suitable for variety of applications, such as:
- Automated and mechanized corrosion testing on pipelines and storage tanks
- Thickness measurements on boiler tubes & heat exchangers
- Ultrasonic measurements on high-temperature objects
- In-Situ ultrasonic stress measurements
Spesifikasi
|
TRANSMITTER |
|
|
Output voltage, Volt |
Bipolar burst ± 200 V, ± 400 V, ± 600 V |
|
Excitation sequence, periods |
0.5 to 9 |
|
Pulse repetition rate, Hz |
up to 60 with the averaging factor 32 |
|
|
|
|
RECEIVER |
|
|
Data acquisition length, Samples |
up to 8 KSamples |
|
Sampling rate, MHz |
25 MHz, 50 MHz, 100 MHz |
|
Receiver bandwidth, MHz |
1 to 15 MHz |
|
Dynamic range of the amplifier including Time Corrected Gain (TCG), dB |
40 dB |
|
Averaging factor |
up to 32 |
|
|
|
|
DATA INTERFACES |
|
|
Ethernet |
up to 100 MBit |
|
WiFi 802.11b/g/n / Bitrate:802.11n |
up to 150Mbps |
|
External trigger output |
TTL + RS485 pulse signal |
|
|
|
|
TRANSDUCER INTERFACES |
|
|
For EMAT with pulse magnetization |
Lemo 2K (EGG.2K.810.CLL1/EGG.2K.810.CLL1) |
|
For EMAT with permanent magnet |
Lemo 00 (ERN.00.250.CTL) |
|
|
|
|
DIMENSIONS & WEIGHT |
|
|
Dimensions of the electronic block |
320 х 165 х 55 mm |
|
Weight of the electronic block |
1650 g |
Paket Pengiriman
| Name | Quantity, pcs. |
| А1570 – EMA thickness gauge electronic unit | 1 |
| EMA transducer S7394 | 1 |
| Rod-Housing Assembly MH730 | 1 |
| Single LEMO 00 – LEMO 00 cable 2.5 m | 1 |
| Net adaptor with cable 220V-15V | 1 |
| USB A – Micro B cable | 1 |
| Hard case | 1 |
