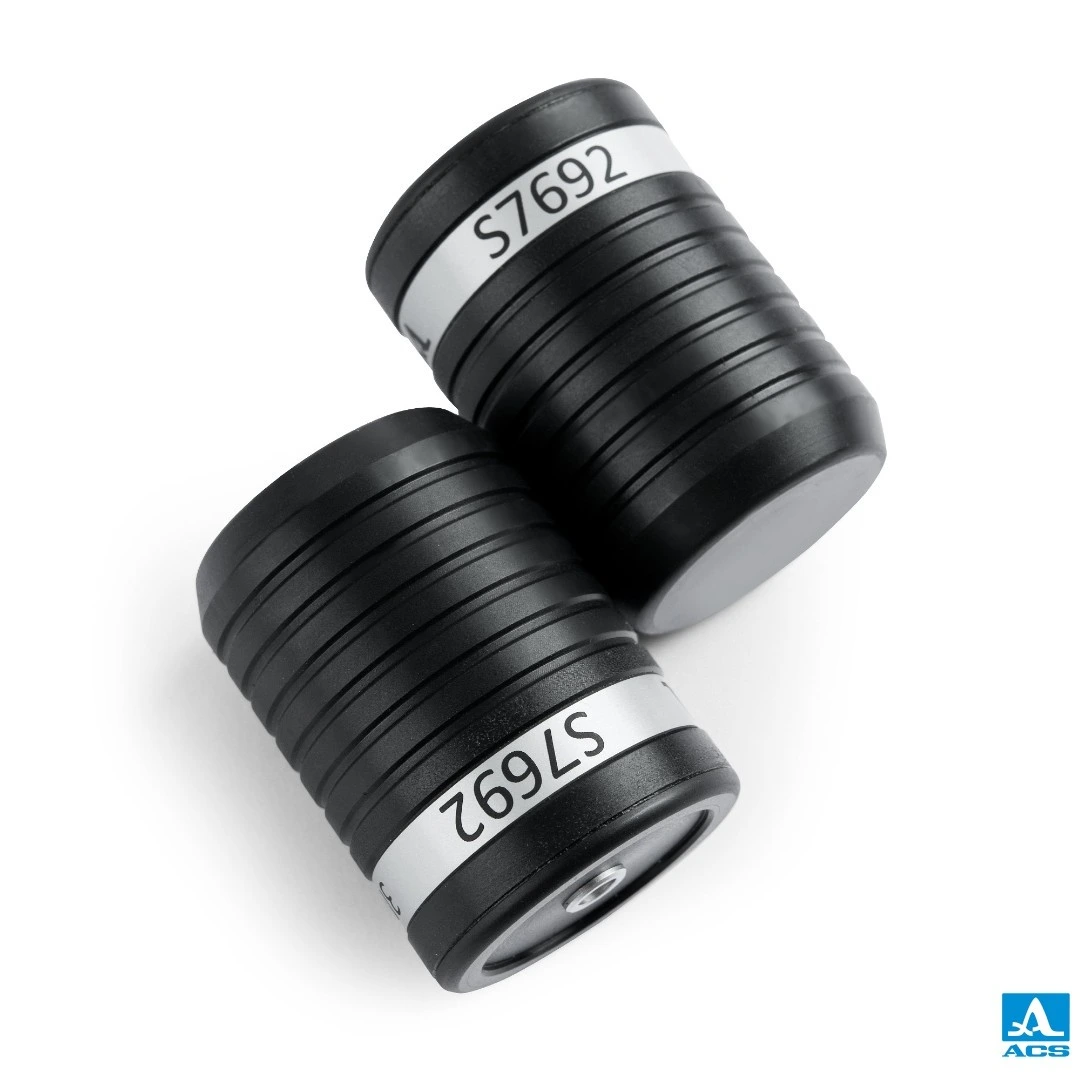

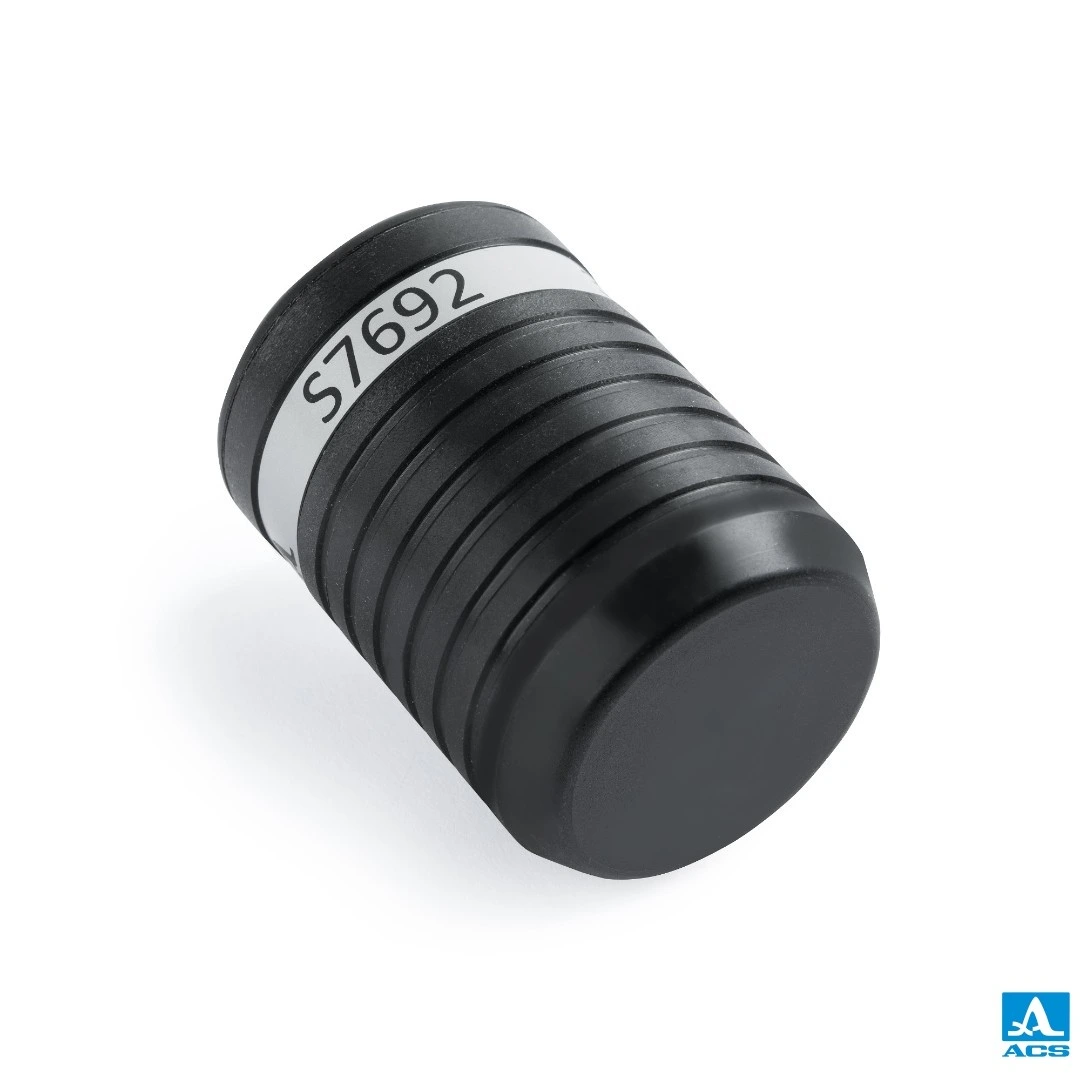

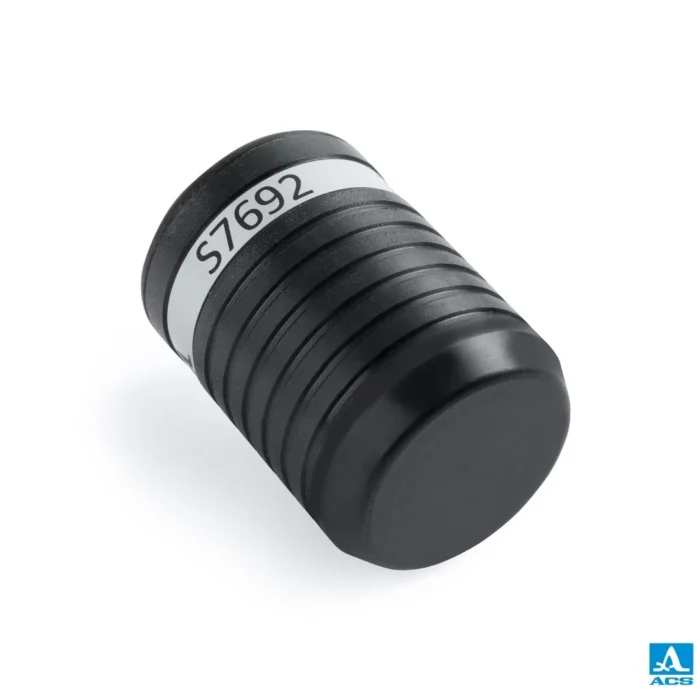

Testing Instrumen S7692 – SHEAR WAVE EMAT TRANSDUCER
EMAT – transduser akustik-elektromagnetik untuk mengirim dan menerima gelombang geser ultrasonik dengan polarisasi melingkar
Description
Deskripsi
Spesifikasi
Unduh
Deskripsi
An electro-magnetic acoustic transducer S7692 for the couplant-free transmitting and receiving ultrasonic shear waves can be used for thickness measurements by A1270 EMAT.
The following ACS instruments can drive the transducer:
Spesifikasi
| Transducer type | EMAT |
| Type of generated wave mode: | Shear wave, radial polarization |
| Nominal frequency | 3 MHz |
| Effective aperture diameter | 10 mm |
| Inspection range | 1 to 100 mm |
| Lift-off / through-coating thickness | up to 1 mm |
| Extended operating temperature range | -20 to 60 °C |
| Overall dimensions: | 35×58 mm |
| Cable length: | Up to 3.000 mm |
| Weight | 215 g |
