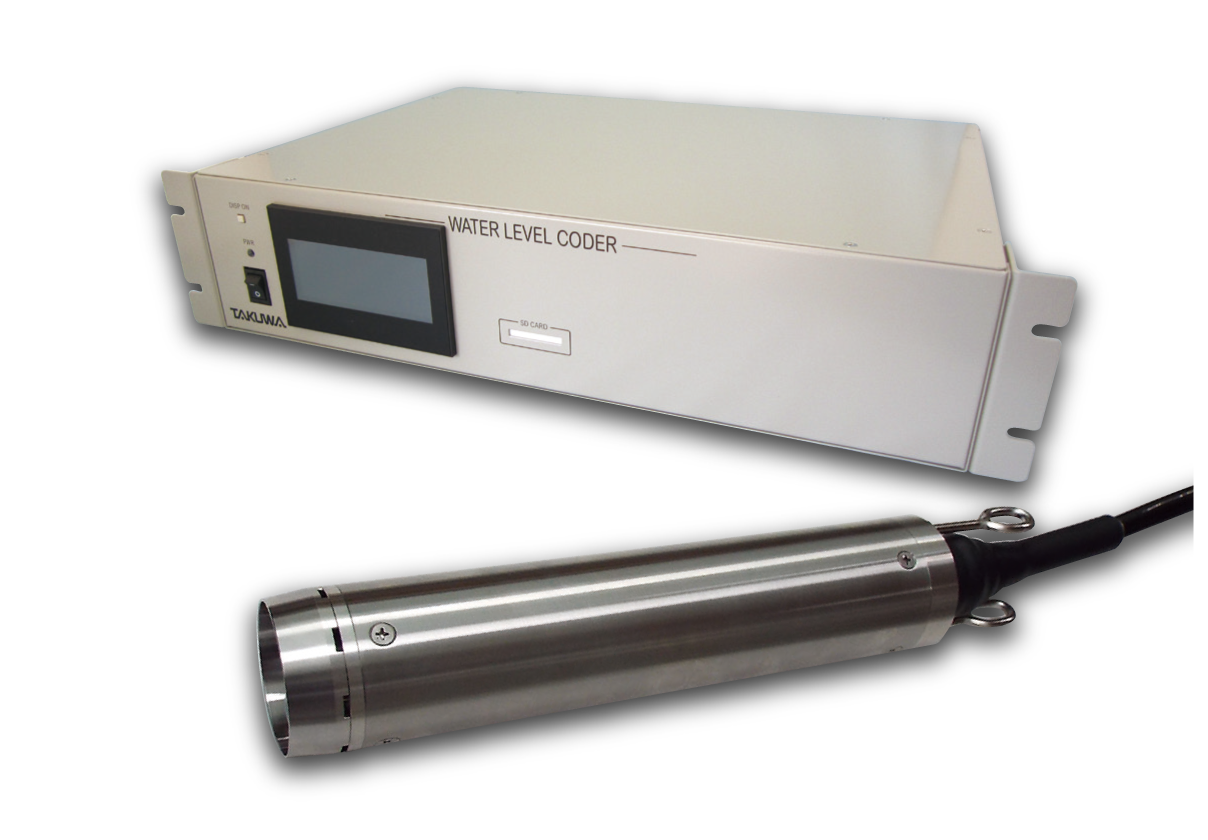

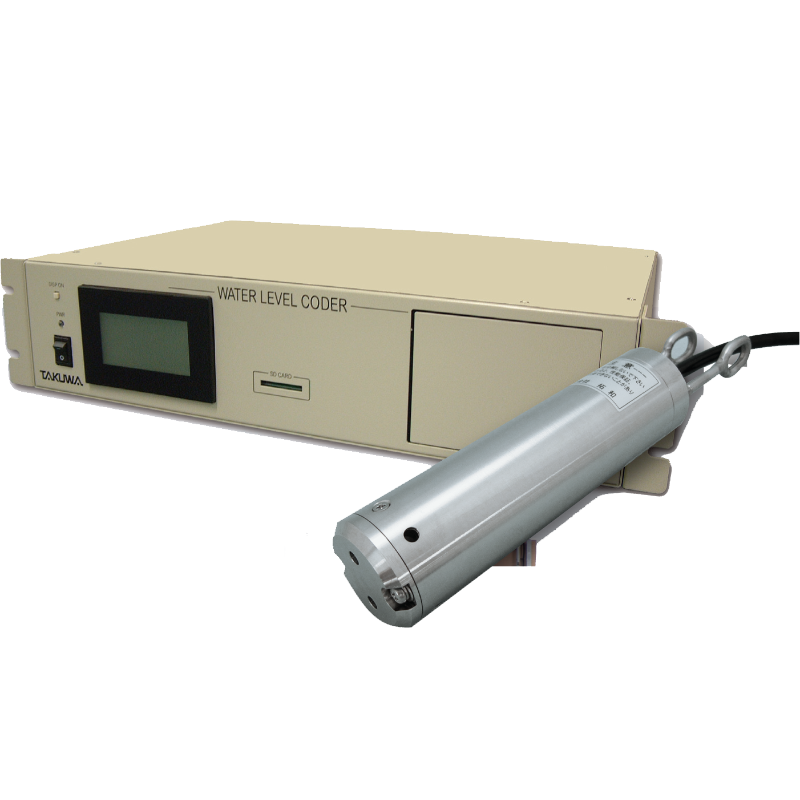

Sensor Ketinggian Air Banjir Quartz Type Water Level Gauge OPQS2 Series
SSensor ketinggian air seri OPQS adalah sejenis “tipe Quartz pressure”, untuk meningkatkan proteksi petir. Sensor ini hanya menggunakan serat optik untuk kabel transmisi data dan power supply listrik dengan memasang “konvertor optical-electric yang sangat kecil” di dalam sensor. Baru-baru ini di Jepang, jenis ini telah digunakan untuk pengendalian bendungan dan prakiraan banjir serta sistem peringatan.
Tekanan air, bervariasi seiring perubahan ketinggian air, diukur dengan osilator kuarsa, yang frekuensi osilasinya diubah menjadi sinyal optik (SM) pada konverter E/O di dalam sensor untuk transmisi. Sumber daya sensor menerima sinar laser, yang dipancarkan dari sumber cahaya yang terpasang pada pembuat kode pengukur ketinggian air, pada catu daya listrik optik untuk menghasilkan tenaga listrik. Bebas dari lonjakan petir karena kabel nirkabel (serat optik) digunakan untuk transmisi data antara sensor dan konverter sinyal.
Pengukuran dengan akurasi tinggi, tanpa kesalahan konversi yang disebabkan oleh perubahan sekuler yang biasa terlihat pada diafragma.
Rentang pengukuran yang luas, dari 10m hingga 70m, cocok untuk pemantauan air sungai dan juga bendungan.
■ Tindakan proteksi petir
■ Akurasi pengukuran yang tinggi dengan osilator kuarsa
■ optical power supply (daya sensor dihasilkan dengan cahaya)
■ Rentang pengukuran yang luas
Quartz Sensor
|
Model |
OPQS2-10(measuring range 0 to 10m) OPQS2-20(measuring range 0 to 20m) OPQS2-30(measuring range 0 to 30m) OPQS2-50(measuring range 0 to 50m) OPQS2-70(measuring range 0 to 70m) |
|
Accuracy |
±0.05%FS
±0.02%FS ±0.01%FS(OPQS2-70 not allowed) |
| Temperature coefficient at 0 point | ±0.0007% FS/℃ |
| Temperature sensitivity coefficient | ±0.0049% FS/℃ |
| Overload resistance | 120%FS |
| Power supply | Optical power feeding uni t：DC9V |
| Optical fiber | SM Type Optical Fiber(10/125µm) 2-core cable |
| Operating condition (temperature, humidity) |
-10℃ to +60℃ (No freezing) |
| Material | SUS316L or Titanium(for sea) |
| Dimensions | 280 x φ60 mm |
| Weight | Approx.3kg |
| Cable | Dedicated cable(Sensor to Junction box) Max.200m |
Quartz Sensor
|
Model |
WLC3-OP1－|A|B|C|D|E|F|
A) Analog output 0: No, 1: 4 to 20mA, 2: 0 to 5V, 3: 0 to 10mV B) BCD output 0: No, 1: Yes 1 for each, 2= Yes 2 for each C) Comparison output 0: No, 1: Yes D) SD card slot 0: No, 1: Yes E) Power supply D1: DC12V, A1: AC100V F) Serial output Blank: RS232C, R4: RS422 |
| Display•Operation | LCD touch panel |
|
Processing functions Average calculation |
None averaging
Moving average 20 sec, 1 min, 5 min, 10 min(every 1 sec) or (every 2 sec) Weighted average 5 sec, 10 sec, 15 sec (every 1 sec) Level Setting -999.999m to +999.999m |
|
Input type |
Quartz type sensor(Optical fiber transmission type) Optical signal(Frequency signal 28 to 44 kHz) |
| Number of input | 1 channel |
| Power supply | Select from DC12V or AC100V 50/60Hz |
| Dimensions | 480W x 99H x 300D mm (excluding protruding parts) |
| Weight | 8kg or less |
|
Output |
1) Analog output 2 channels at 1 input, select from
4 to 20mA, 0 to 5V or 0 to 10mV 2) BCD output 2 channels(Max.) at 1 input, BCD output 5 digits with odd parity 3)Comparative output 8 points at 1 input (A,B,C,D≦H or A,B,C,D≧H), Non-voltage A contact (Photo MOS relay output) 4)Card recording Recording media： SD card(Max.2GB) Recording interval： No, 1, 2, 5, 10, 15, 20, 30(min), 1, 2, 3, 6(hour) Recording capacity： 1 year or more(at 1 min recording) |
Quartz Type Water Level Gauge OPQS2 Series Datasheet
■ Tindakan proteksi petir
■ Akurasi pengukuran yang tinggi dengan osilator kuarsa
■ optical power supply (daya sensor dihasilkan dengan cahaya)
■ Rentang pengukuran yang luas
Quartz Sensor
|
Model |
OPQS2-10(measuring range 0 to 10m) OPQS2-20(measuring range 0 to 20m) OPQS2-30(measuring range 0 to 30m) OPQS2-50(measuring range 0 to 50m) OPQS2-70(measuring range 0 to 70m) |
|
Accuracy |
±0.05%FS
±0.02%FS ±0.01%FS(OPQS2-70 not allowed) |
| Temperature coefficient at 0 point | ±0.0007% FS/℃ |
| Temperature sensitivity coefficient | ±0.0049% FS/℃ |
| Overload resistance | 120%FS |
| Power supply | Optical power feeding uni t：DC9V |
| Optical fiber | SM Type Optical Fiber(10/125µm) 2-core cable |
| Operating condition (temperature, humidity) |
-10℃ to +60℃ (No freezing) |
| Material | SUS316L or Titanium(for sea) |
| Dimensions | 280 x φ60 mm |
| Weight | Approx.3kg |
| Cable | Dedicated cable(Sensor to Junction box) Max.200m |
Quartz Sensor
|
Model |
WLC3-OP1－|A|B|C|D|E|F|
A) Analog output 0: No, 1: 4 to 20mA, 2: 0 to 5V, 3: 0 to 10mV B) BCD output 0: No, 1: Yes 1 for each, 2= Yes 2 for each C) Comparison output 0: No, 1: Yes D) SD card slot 0: No, 1: Yes E) Power supply D1: DC12V, A1: AC100V F) Serial output Blank: RS232C, R4: RS422 |
| Display•Operation | LCD touch panel |
|
Processing functions Average calculation |
None averaging
Moving average 20 sec, 1 min, 5 min, 10 min(every 1 sec) or (every 2 sec) Weighted average 5 sec, 10 sec, 15 sec (every 1 sec) Level Setting -999.999m to +999.999m |
|
Input type |
Quartz type sensor(Optical fiber transmission type) Optical signal(Frequency signal 28 to 44 kHz) |
| Number of input | 1 channel |
| Power supply | Select from DC12V or AC100V 50/60Hz |
| Dimensions | 480W x 99H x 300D mm (excluding protruding parts) |
| Weight | 8kg or less |
|
Output |
1) Analog output 2 channels at 1 input, select from
4 to 20mA, 0 to 5V or 0 to 10mV 2) BCD output 2 channels(Max.) at 1 input, BCD output 5 digits with odd parity 3)Comparative output 8 points at 1 input (A,B,C,D≦H or A,B,C,D≧H), Non-voltage A contact (Photo MOS relay output) 4)Card recording Recording media： SD card(Max.2GB) Recording interval： No, 1, 2, 5, 10, 15, 20, 30(min), 1, 2, 3, 6(hour) Recording capacity： 1 year or more(at 1 min recording) |
