Sensor Ketinggian Air Banjir Pressure-type Water Level Gauge CPS Series
Pressure-type Water Level Gauge CPS Series adalah sensor tipe tekanan yang mengukur ketinggian air dari tekanan air menggunakan resonator keramik. Ini menghasilkan pengukuran dalam bentuk sinyal DC pada 4 hingga 20 mA.
Pengukur ketinggian air jenis kapasitansi yang mendeteksi tekanan air, bervariasi seiring perubahan ketinggian air, dengan semikonduktor (keramik), yang sinyal listriknya dihitung terhadap ketinggian air. Keramik ini memiliki karakteristik suhu yang sangat baik, anti getaran, dan ketahanan terhadap lingkungan. Desainnya yang ringkas dan ringan juga memungkinkan pemasangan dan perawatan yang mudah.
■ Kecil dan ringan, pengoperasian mudah
■ Arester yang terpasang di dalam
■ Baja tahan karat yang tahan lama
Pressure Sensor
|
Model |
CPS-04-A(measuring range 0 to 4m) CPS-10-A(measuring range 0 to 10m) CPS-20-A(measuring range 0 to 20m) |
|
Accuracy |
±0.2%FS(CPS-04-A)
±0.1%FS(CPS-10-A, CPS-20-A) |
| Overload resistance | 200%FS |
| Output signal | DC4 to 20mA |
| Power supply | DC24V(11 to 26V)( supplied from the water level coder) |
| Operating condition (temperature, humidity) | -10℃ to +60℃ (No freezing) |
| Material | SUS316L or Titanium(for sea) |

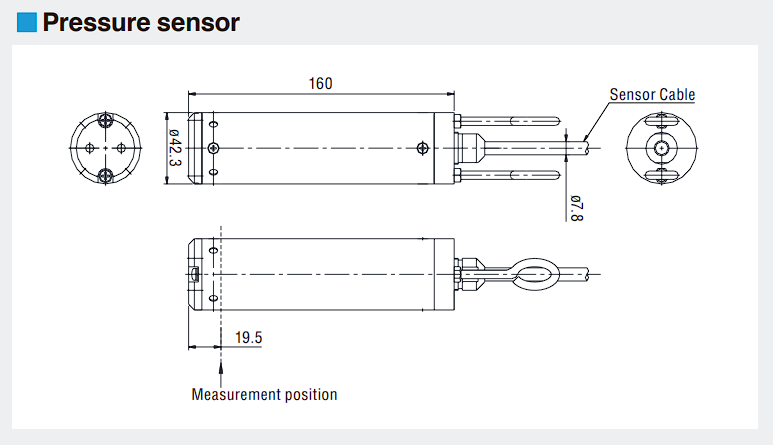

| Dimensions | 160 x φ42.3 mm |
| Weight | Approx.1kg |

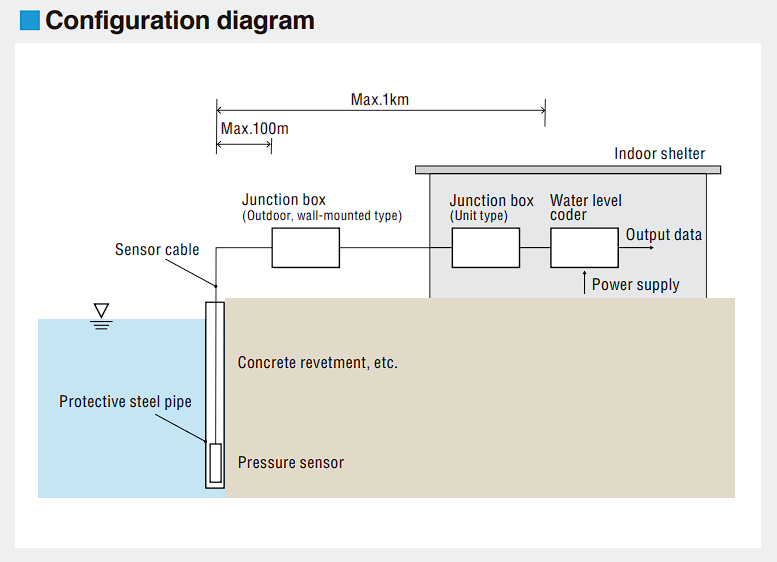

| Cable | Dedicated cable(Sensor to Junction box) Max.100m |
Water Level coder
|
Model |
WLC3-AI|A|－|B|C|D|E|F|G|H|
A) Sensor input 1: 1 sensor, 2: 2 sensors B) Analog output 0: No, 1: 4 to 20mA, 2: 0 to 5V, 3: 0 to 10mV C) BCD output 0: No, 1: Yes 1 for each, 2= Yes 2 for each D) Comparison output 0: No, 1: Yes E) Printer 0: No F) SD card slot 0: No, 1: Yes G) Power supply D1: DC12V, A1: AC100V H) Serial output Blank: RS232C, R4: RS422 |
| Display•Operation | LCD touch panel |
|
Processing functions |
Average calculation None averaging
Moving average 20 sec, 1 min, 5 min, 10 min(every 1 sec) or (every 2 sec) Weighted average 5 sec, 10 sec, 15 sec (every 1 sec) Level setting -999.999m to +999.999m |
| Input type | Ceramic resonator sensor(DC4 to 20mA) |
| Number of input | 2 channels(Max.) |
| Power supply | Select from DC12V or AC100V 50/60Hz |

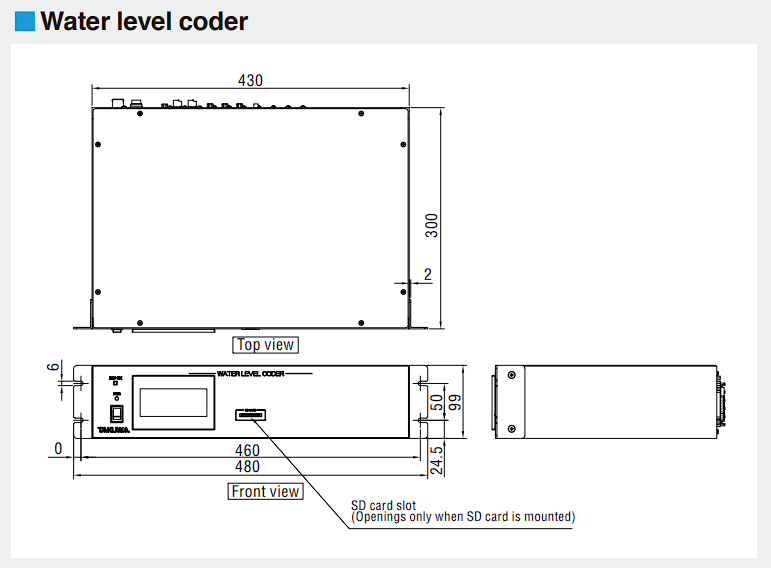

| Dimensions | 480W x 99H x 300D mm (excluding protruding parts) |
| Weight | 7kg or less |
|
Output |
1) Analog output 2 channels at 1 input,
select from 4 to 20mA, 0 to 5V or 0 to 10mV 2) BCD output 2 channels(Max.) at 1 input, BCD output 5 digits with odd parity 3) Comparative output 8 points at 1 input (A,B,C,D≦H or A,B,C,D≧H), Non-voltage A contact (Photo MOS relay output) 4) Card recording Recording media： SD card(Max. 2GB) Recording interval： No,1, 2, 5, 10, 15, 20, 30(min), 1, 2, 3, 6(hour) Recording capacity： 1 year or more(at 1 min recording) |
Pressure Type Water Level Gauge CPS Series Datasheet
■ Kecil dan ringan, pengoperasian mudah
■ Arester yang terpasang di dalam
■ Baja tahan karat yang tahan lama
Pressure Sensor
|
Model |
CPS-04-A(measuring range 0 to 4m) CPS-10-A(measuring range 0 to 10m) CPS-20-A(measuring range 0 to 20m) |
|
Accuracy |
±0.2%FS(CPS-04-A)
±0.1%FS(CPS-10-A, CPS-20-A) |
| Overload resistance | 200%FS |
| Output signal | DC4 to 20mA |
| Power supply | DC24V(11 to 26V)( supplied from the water level coder) |
| Operating condition (temperature, humidity) | -10℃ to +60℃ (No freezing) |
| Material | SUS316L or Titanium(for sea) |
| Dimensions | 160 x φ42.3 mm |
| Weight | Approx.1kg |
| Cable | Dedicated cable(Sensor to Junction box) Max.100m |
Water Level coder
|
Model |
WLC3-AI|A|－|B|C|D|E|F|G|H|
A) Sensor input 1: 1 sensor, 2: 2 sensors B) Analog output 0: No, 1: 4 to 20mA, 2: 0 to 5V, 3: 0 to 10mV C) BCD output 0: No, 1: Yes 1 for each, 2= Yes 2 for each D) Comparison output 0: No, 1: Yes E) Printer 0: No F) SD card slot 0: No, 1: Yes G) Power supply D1: DC12V, A1: AC100V H) Serial output Blank: RS232C, R4: RS422 |
| Display•Operation | LCD touch panel |
|
Processing functions |
Average calculation None averaging
Moving average 20 sec, 1 min, 5 min, 10 min(every 1 sec) or (every 2 sec) Weighted average 5 sec, 10 sec, 15 sec (every 1 sec) Level setting -999.999m to +999.999m |
| Input type | Ceramic resonator sensor(DC4 to 20mA) |
| Number of input | 2 channels(Max.) |
| Power supply | Select from DC12V or AC100V 50/60Hz |
| Dimensions | 480W x 99H x 300D mm (excluding protruding parts) |
| Weight | 7kg or less |
|
Output |
1) Analog output 2 channels at 1 input,
select from 4 to 20mA, 0 to 5V or 0 to 10mV 2) BCD output 2 channels(Max.) at 1 input, BCD output 5 digits with odd parity 3) Comparative output 8 points at 1 input (A,B,C,D≦H or A,B,C,D≧H), Non-voltage A contact (Photo MOS relay output) 4) Card recording Recording media： SD card(Max. 2GB) Recording interval： No,1, 2, 5, 10, 15, 20, 30(min), 1, 2, 3, 6(hour) Recording capacity： 1 year or more(at 1 min recording) |
