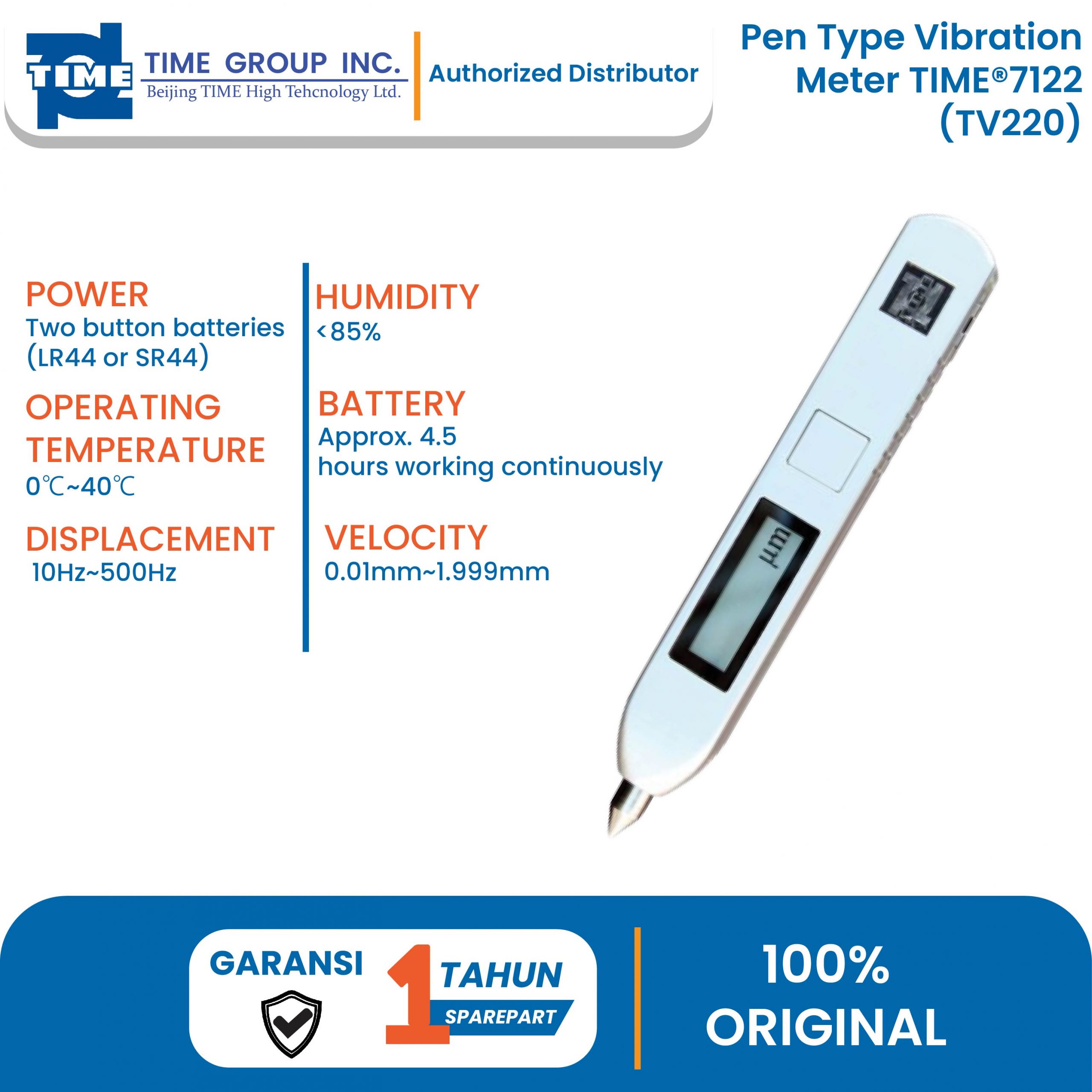

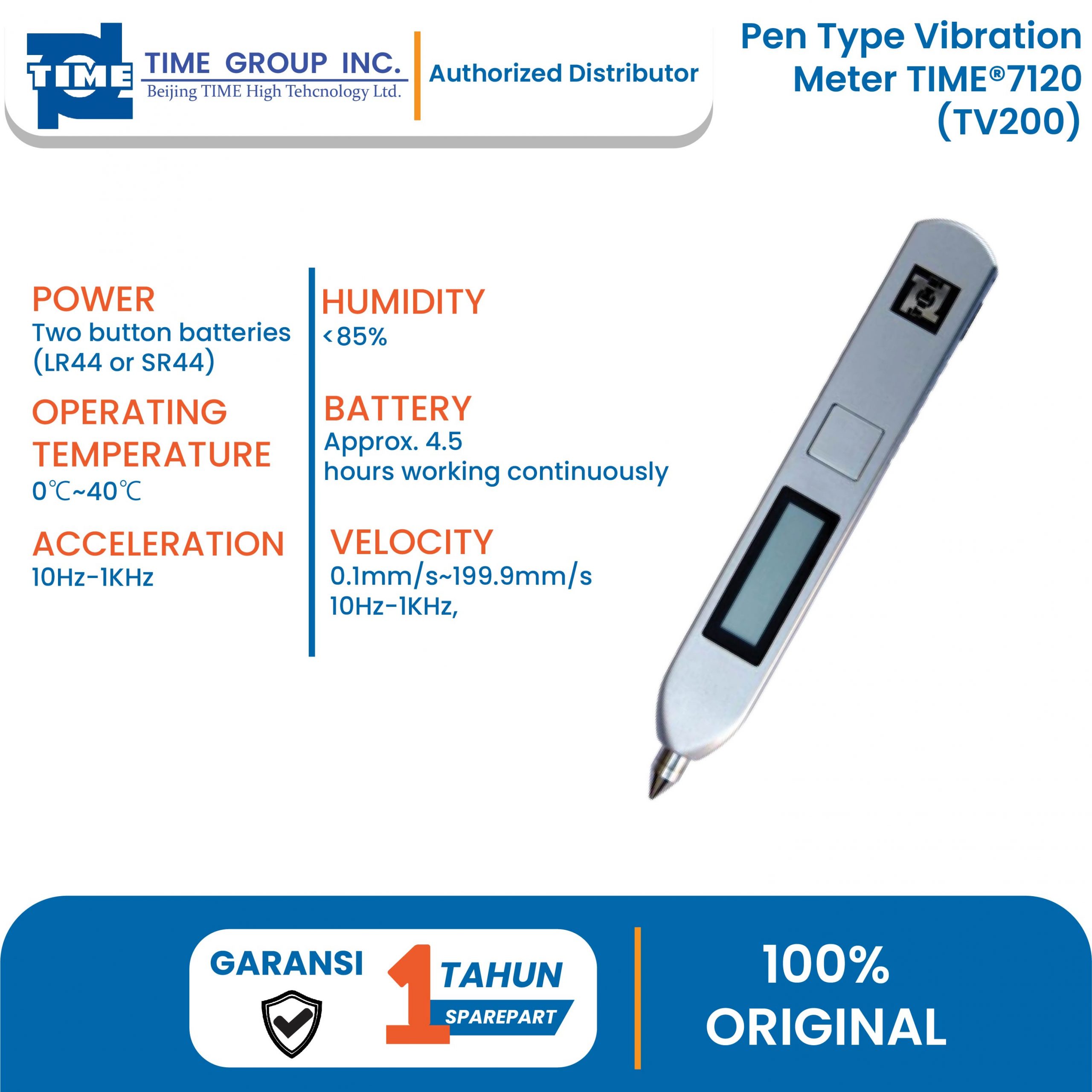

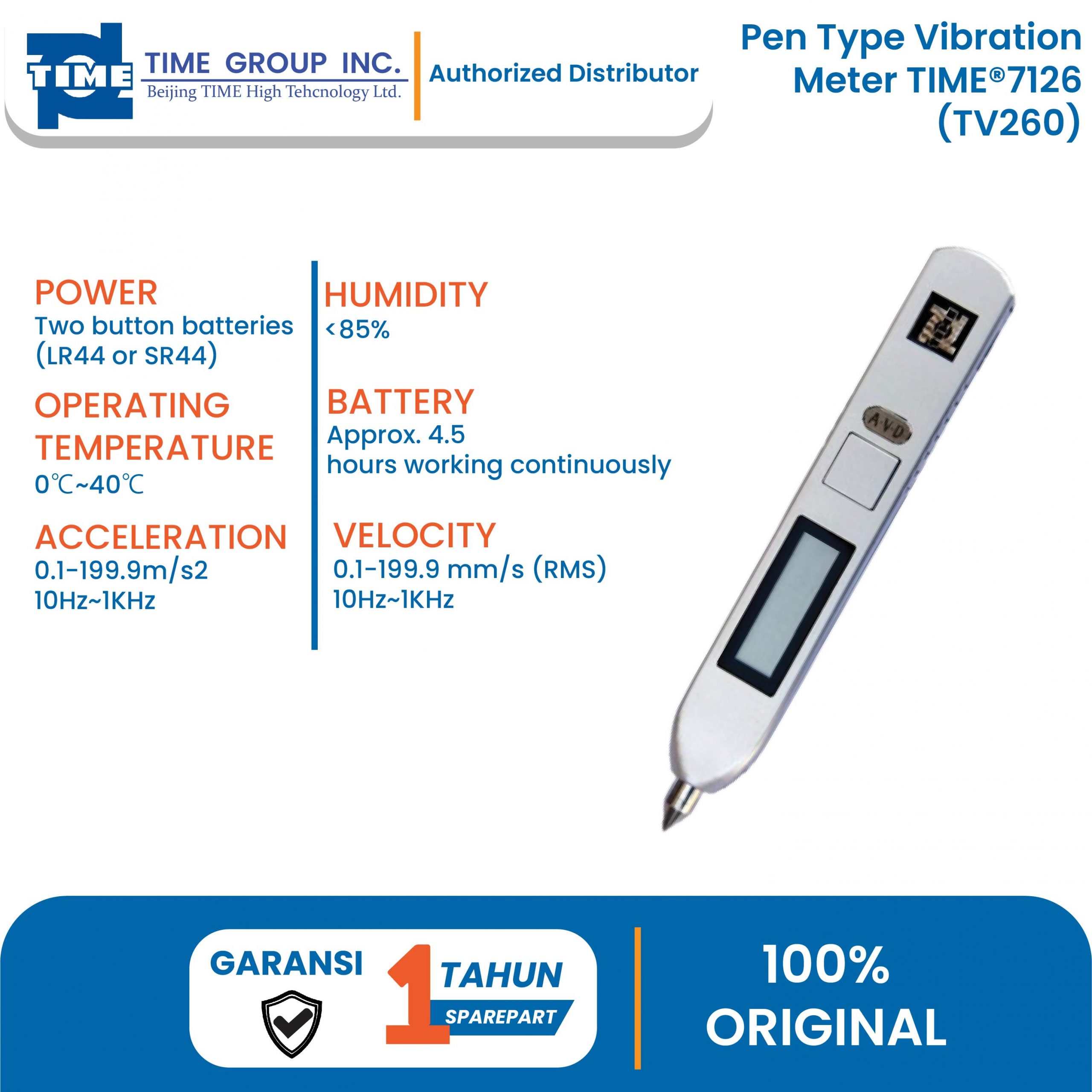

Pen Type Vibration Meter TIME®7120/7122/7126 (TV200/220/260)

TIME Vibration Tester 7120/7122/7126 (TV200/220/260) dapat dengan cepat memantau status getaran peralatan mesin.

Category:
Description

1.Fitur:
ā— Pengujian getaran yang cepat pada mesin bengkel dan deteksi cacat cepat pada motor, kipas listrik, pompa, kompresor, dan peralatan mesin untuk mencegah kerusakan mekanis.
ā— Pemeriksaan cepat dari ketidaksejajaran, bantalan dan roda gigi yang tidak seimbang.
ā— Ringan Ukuran ringkas dengan bagian bawah saja.
ā— Konsumsi energi rendah, terus bekerja selama lebih dari 4,5 jam terus menerus.
ā— Daya mati otomatis.
ā— TIMEĀ®7120 untuk pengujian kecepatan.
ā— TIMEĀ®7122 untuk pengujian perpindahan.
ā— TIMEĀ®7126 untuk pengujian percepatan, kecepatan dan perpindahan.

Pengiriman Standar

Unit utama 1

Baterai 2

Kantong pelindung 1

Sertifikat WAKTU 1

Kartu garansi 1

Instruksi manual 1

2.Spesifikasi:

Model

TIME®7120

TIME®7122

TIME®7126

Parameters

RMS of vibration velocity (mm/s)

Displacement

Acceleration, Velocity, Displacement

Testing range

Velocity:
0.1mm/s~199.9mm/s

Displacement:
0.01mm~1.999mm (peak~peak)

Acceleration:0.1-199.9m/s2(peak)
Velocity: 0.1-199.9 mm/s (RMS)
Displacement: 0.01-1.999 mm (peak-peak)

Frequency range

Velocity: 10Hz-1KHz,
Acceleration: 10Hz-1KHz

Displacement: 10Hz~500Hz

Velocity: 10Hz~1KHz
Displacement: 10Hz~500Hz
Acceleration:10Hz~1KHz

Tolerance

±5%±2

Display

3½digits LCD

Power

Two button batteries(LR44 or SR44)

Battery capacity

Approx. 4.5 hours working continuously

Operating temperature

0ā„ƒ~40ā„ƒ

Humidity

<85%

Dimensions (mm)

150Ɨ22Ɨ18

Weight (g)

55(including batteries)
