Komputer Industri WPPC-H1780T｜Rugged, Super-reliable, Waterproof Panel PC
LCD TFT 17”, Sentuhan Resistif/Kapasitif, CPU Intel ®Celeron J1900, 2*GbE LAN, 1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA

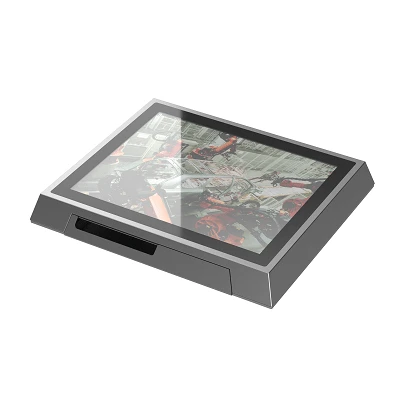

WPPC-H1780T adalah PC panel tahan air tertanam yang kokoh, sangat andal, dan tanpa kipas. Panel depan terbuat dari baja tahan karat SUS304
baja. Penutup belakang terbuat dari paduan aluminium 3,0 mm 5052, yang dapat memenuhi pembuangan panas CPU dan pemasangan VESA. Ini didukung oleh CPU Intel® Celeron J1900, SODIMM DDR3L 1-Ch 1333 MHz, dan hingga 8GB. Mendukung LCD TFT 17 inci 1280*1024@60Hz, sentuhan Resistif/Kapasitif. PC ini mengadopsi desain full flat bezel. Selain antarmuka IO, tingkat kedap air PC ini bisa mencapai IP65/IP66. Ini memiliki sifat super tahan air, kokoh dan andal, kinerja tinggi, multi-IO, multi-ekstensi, dan memiliki beragam aplikasi. Cocok untuk lingkungan basah, dingin dan keras.
http://Introducing%20Waterproof%20Panel%20PC%20|%20JHCTECH%20WPPC%20Series%20%20Watch%20later%20%20Share
Fitur
Spesifikasi
Video Product
Fitur
(1)Intel®Baytrail Celeron J1900 2.0-2.42G CPU
(2)1-Ch DDR3L 1333MHZ SODIMM, Up to 8GB(3)SUS304 grade stainless steel enclosure(4)3.0mm 5052 aluminum rear cover(5)Full Flat bezel design, fanless(6)Totally IP65/IP66(except for IO interface )(7)Support for standard VESA 100*100 mounting(8)17” LED TFT LCD, Resistive/Capacitive touch(9)1*HDMI, 1*VGA,2*GbE LAN, 1*USB3.0, 3*USB2.0(10)1*Mini PCIe (PCIe+USB, w/SIM)(11)1*Simple-swap 2.5” SATA bay , 1*mSATA(12)DC 9~36V power input
Spesifikasi
| System | CPU | Intel® Baytrail Celeron J1900 2.0-2.42G CPU |
| Chipset | Intel SoC | |
| System Memory | 1-Ch DDR3L, Support 1333MHz SODIMM MAX 8GB | |
| BIOS | AMI UEFI BIOS | |
| Storage | 1*Simple-swap 2.5” SATA bay;1*mSATA(full size), support AHCI | |
| Display | Gen.7 Intel® HD Graphics 17” LED TFT LCD and HDMI, VGA three display, The Max resolution, VGA : 1920*1200@60Hz; HDMI : 1920*1080@60Hz Support OpenGL 3.2, DirectX 11, OpenCL 1.2, MPGE2/H.264 |
|
| Touch | Resistive/Capacitive touch | |
| Expansion | 1*Mini PCIe(full size) with PCIe X1+USB,with SIM slot 1*Full size mSATA with USB2.0 | |
| Rear I/O | 2*RJ45 GbE LAN（with LED); 2* RS232/422/485（DB9） 1*USB3.0 Type A; 3*USB2.0 Type A 1*HDMI; 1*VGA; 1*Opt. ANT |
|
| Audio | Realtek ALC662VD controller, Support 5.1 channel | |
| LAN | 2*Intel I211AT PCIe Gig. Ethernet, 10/100/1000Mbps | |
| LED | 1*Power LED; 1*HDD LED; 3*CPU Temp.LED(Red is warning, Yellow is high, Green is normal) | |
| Control SW | 1*Power button, 1*AT/ATX Select dip | |
| Power Supply | DC 9~36V, D-Jack w/ M8 connector, Comsuption: 12V/ 2.5A | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows 7, Windows 8.1, Windows 10, Linux Fedora Ubuntu | |
| Mechanical | Structure | The whole body: SUS304 Stainless steel Back cover: 3.0mm 5052 Aluminum IO cover: 1.0mm SECC/SGCC |
| Mounting | Desktop VESA(100mm*100mm) mounting | |
| Dimension | (W*H*D):429.51mm*364.51mm*52.1mm | |
| Net weight | 5.57KG |
| Environmental | Operating temperature | 0~60℃ | |
| Storage Temperature | -40°C~85°C | ||
| Storage Humidity | 10~90%@40℃, non-condensing | ||
| Vibration | 1g 5~500Hz | ||
| Shock | 10g peak acceleration(duration 11ms) | ||
| Certification/EMC | CE/FCC Class B | ||
| LCD | Type | 17.0”TFT LED | |
| Resolution | 1280*1024 | ||
| Color | 16.19M colors | ||
| Pixel Pitch(mm) | 0.264*0.264 | ||
| Brightness(cd/m2) | 600 | ||
| Viewing Angle | 80 Degree(left), 80 Degree(right), 70 Degree(up), 80 Degree(down) | ||
| Operating Temperature | -20~70℃ | ||
| Backlight Lifetime | 70000Hours | ||
| Touch | Type | 5 wire resistive touch | Projected capacitive touch |
| Resolution | gapless | gapless | |
| Light Transmittance | 83% | 90% | |
| Interface | USB | USB | |
| Consumption | +5V@200mA | +5V@300mA | |
| OS | Windows,Linux | Windows/Linux | |
| Click Lifetime | 35 million times | 3 billion times | |
