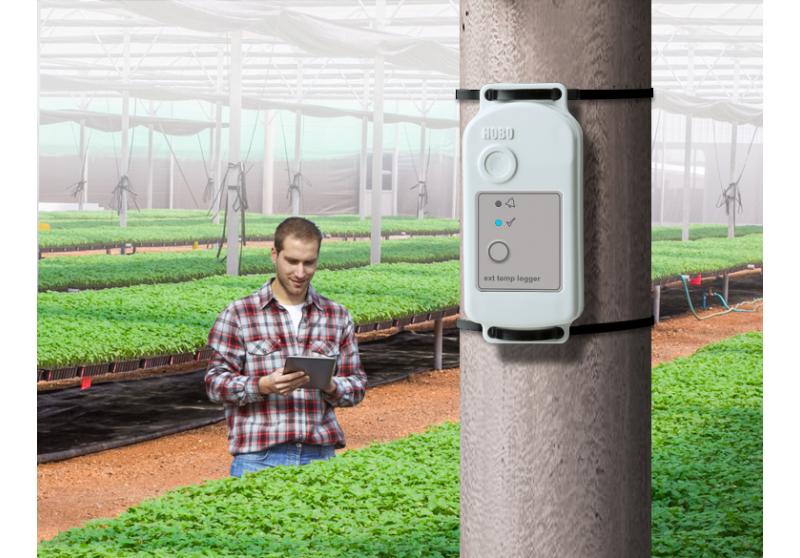

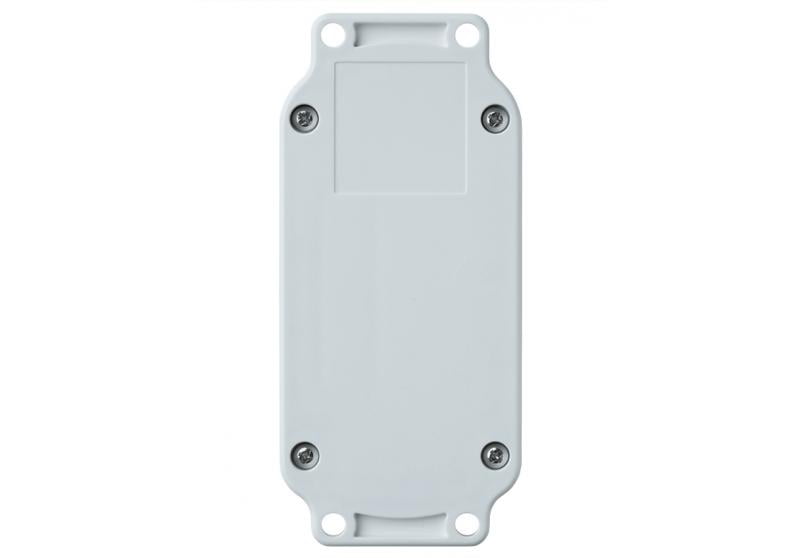

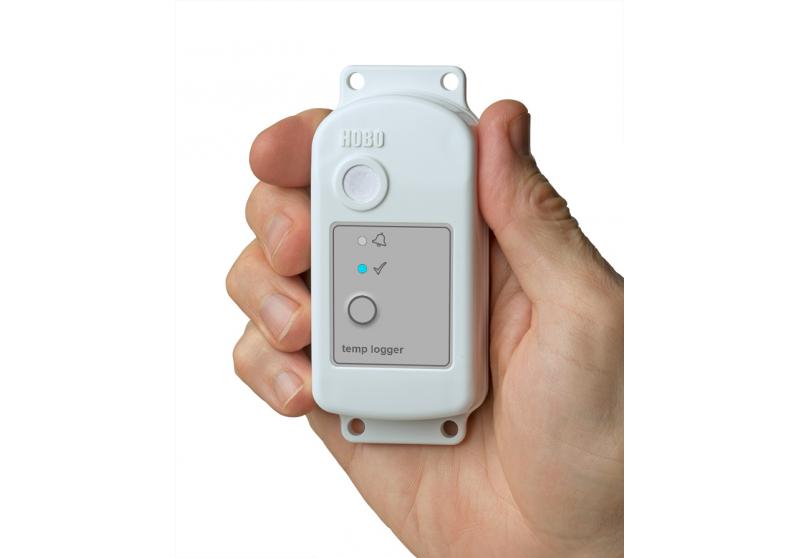

HOBO External Temperature/RH Sensor Data Logger (MX2302A) - Image 1

HOBO External Temperature/RH Sensor Data Logger (MX2302A) - Image 2

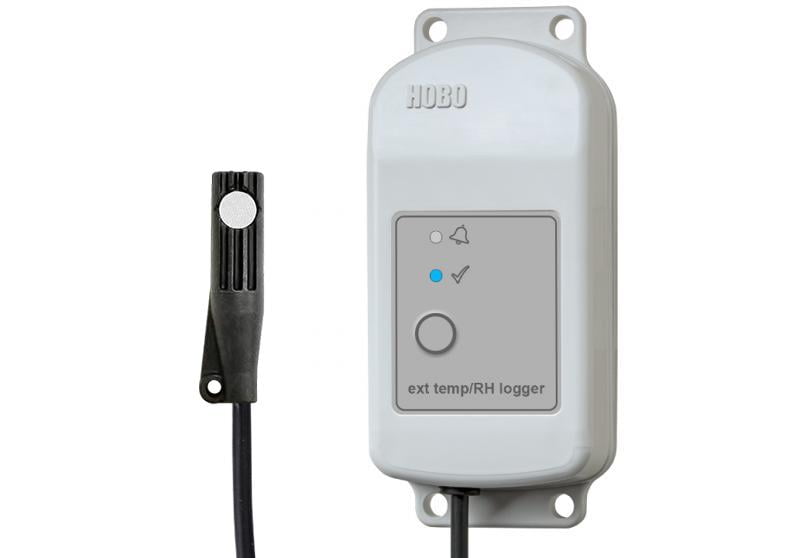

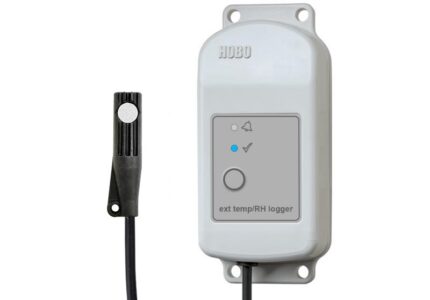

HOBO External Temperature/RH Sensor Data Logger (MX2302A)

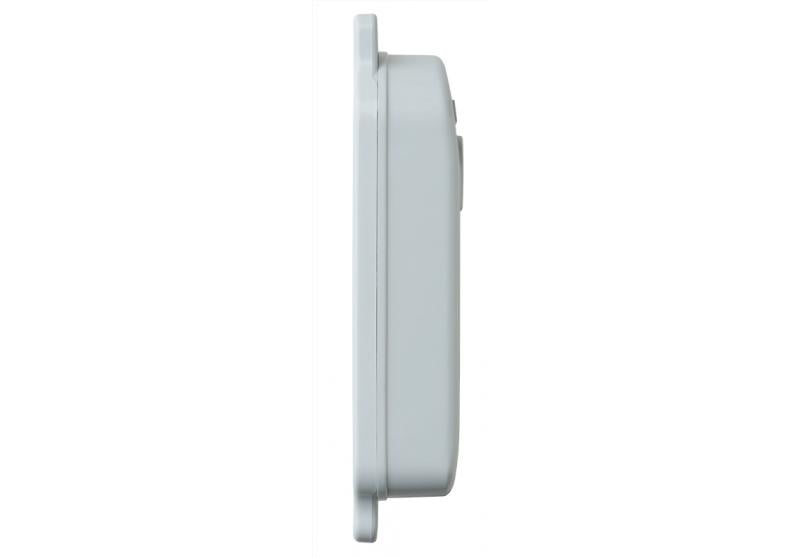

HOBO External Temperature/RH Sensor Data Logger (MX2302A) - Image 3

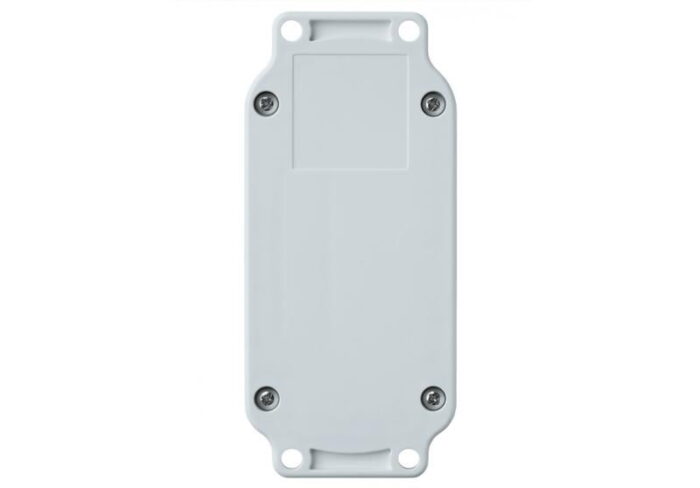

HOBO External Temperature/RH Sensor Data Logger (MX2302A) - Image 4

HOBO External Temperature/RH Sensor Data Logger (MX2302A)

HOBO External Temperature/RH Sensor Data Logger (MX2302A)

HOBO MX2302 adalah pencatat data tahan cuaca dengan sensor suhu dan kelembaban relatif eksternal. Memanfaatkan Bluetooth Low Energy, logger memungkinkan penyiapan yang mudah, cepat, dan pengunduhan data langsung dari perangkat seluler atau komputer Windows Anda dengan aplikasi HOBOconnect gratis Onset. MX2302 memberikan pengukuran akurasi tinggi di lingkungan luar yang keras.

Tambahkan MX Gateway untuk akses jarak jauh ke data Anda di perangkat lunak HOBOlink berbasis cloud Onset.

Untuk informasi lebih lanjut, anda bisa menghubungi kami melalui :

Our Office : Jl. Radin Inten II No. 61A Duren Sawit – Jakarta Timur 13440

Phone : (021) 8690-6782 / (021) 8690-6783

Whats App : 0816-1740-8900 / 0813-9838-7525

Fax : (021) 8690-6781

E-mail : [email protected]

#hobo #data #logger #loggers #logging #datalogger #iot #sensor #monitoring #system #internet #of #things #tech #techno #technology #measure #measuring #measurement #connect #connection #connectivity #temp #temperature #choose #option

Compare

Add to wishlist

Description

HOBO External Temperature/RH Sensor Data Logger (MX2302A)

Tambahkan MX Gateway untuk akses jarak jauh ke data Anda di perangkat lunak HOBOlink berbasis cloud Onset.

Keunggulan :

-Pengaturan nirkabel yang nyaman dan unduh melalui Bluetooth Low Energy (jarak 100 kaki)
-Ambil data di lokasi yang sulit dijangkau
-Alarm visual mengingatkan Anda pada kondisi di luar jangkauan
-Ruang yang ringkas dan tahan cuaca dengan pemasangan bawaan
-Lihat data saat ini secara real time dengan aplikasi HOBOconnect gratis Onset
-Berbagi data yang diunduh dengan mudah dari perangkat seluler Anda
-Akurasi: +/- 0.2C° dan +/- 2.5% RH

Temperature Sensor
Range	MX2301A and MX2305 internal sensors: -40 to 70°C (-40 to 158°F) MX2302A external temperature sensor: -40 to 70°C (-40 to 158°F) MX2303 and MX2304 external sensors: -40 to 100°C (-40 to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year
Accuracy	±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F) ±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F) ±0.25°C from 70 to 100°C (±0.45 from 158 to 212°F), MX2303 and MX2304 only
Resolution	MX2301A and MX2302A: 0.02°C (0.036°F) MX2303, MX2304, and MX2305: 0.04°C (0.072°F)
Drift	<0.01°C (0.018°F) per year
Relative Humidity Sensor* (MX2301A, MX2302A only)
Range	0 to 100% RH, -40° to 70°C (-40° to 158°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy	±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% RH and above 90% RH ±5% typical
Resolution	0.01%
Drift	<1% per year typical
Response Time (typical, to 90% of change)
Temperature	Without Solar Radiation Shield	With RS1/M-RSA Solar Radiation Shield	With RS3-B Solar Radiation Shield
MX2301A internal sensor	17 minutes in air moving 1 m/sec	24 minutes in air moving 1 m/sec	NA
MX2302A external sensor	3 minutes, 45 seconds in air moving 1 m/sec	7 minutes, 45 seconds in air moving 1 m/sec	6 minutes, 30 seconds in air moving 1 m/sec
MX2303/MX2304 external sensors	3 minutes in air moving 1 m/sec; 20 seconds in stirred water	7 minutes in air moving 1 m/sec	4 minutes in air moving 1 m/sec
MX2305 internal sensor	17 minutes in air moving 1 m/sec	24 minutes in air moving 1 m/sec	NA
RH	Without Solar Radiation Shield	With RS1/M-RSA Solar Radiation Shield	With RS3-B Solar Radiation Shield
MX2301A internal sensor	30 seconds in air moving 1 m/sec	40 seconds in air moving 1 m/sec	NA
MX2302A external sensor	15 seconds in air moving 1 m/sec	30 seconds in air moving 1 m/sec	30 seconds in air moving 1 m/sec
Logger
Operating Range	-40° to 70°C (-40° to 158°F)
Radio Power	1 mW (0 dBm)
Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Logging Rate	1 second to 18 hours
Logging Modes	Fixed interval (normal, statistics) or burst
Memory Modes	Wrap when full or stop when full
Start Modes	Immediate, push button, date & time, or next interval
Stop Modes	When memory full, push button, date & time, or after a set logging period
Time Accuracy	±1 minute per month 0° to 50°C (32° to 122°F)
Battery Type	2/3 AA 3.6 Volt lithium, user replaceable
Battery Life	2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
Memory	MX2301A and MX2302A: 128 KB (63,488 measurements, maximum) MX2303, MX2304, and MX2305: 128 KB (84,650 measurements, maximum)
Full Memory Download Time	Approximately 60 seconds; may take longer the further the device is from the logger
Dimensions	Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.) External temperature sensor diameter: 0.53 cm (0.21 in.) External temperature/RH sensor diameter: 1.17 cm (0.46 in.) External sensor cable length: 2 m (6.56 ft) Solar radiation shield bracket: 10.8 x 8.3 cm (4.25 X 3.25 in.)
Weight	Logger: 75.5 g (2.66 oz) Solar radiation shield bracket: 20.4 g (0.72 oz)
Materials	Acetal, silicone gasket, stainless steel screws
Environmental Rating	NEMA 6 and IP67
