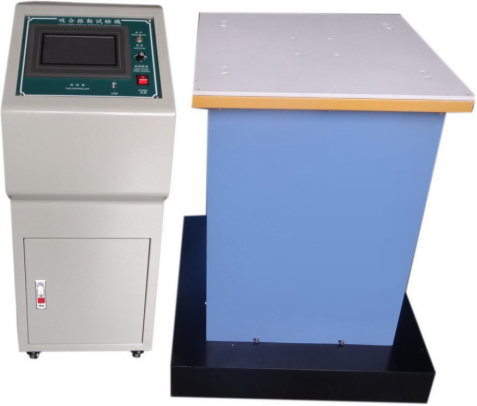

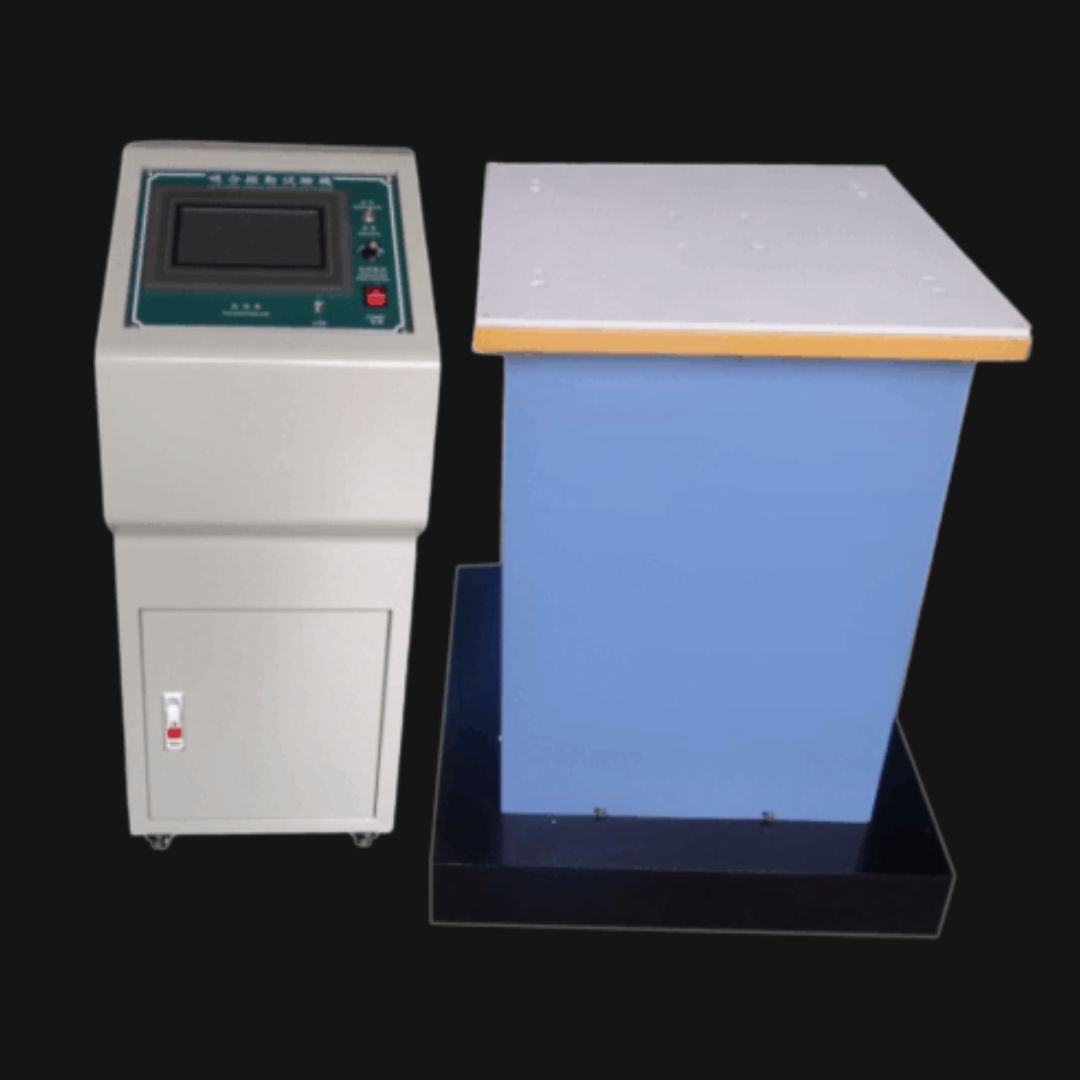

Electromagnetic Vibration Table HD-G809-500

Item

Specification

Machine dimension

500*500mm

Max. Loading

0~10kg

Vibration direction

Up and down; right and left; front and back (switch automatically)

Amplitude

0~5mm (random)

Sweep frequency

1—600Hz (adjustable; can be customized to 3000Hz)

Maximum acceleration

10G

Function

frequency adjustable; programmable; time control

Accuracy

0.1Hz

Programmable function

1~600Hz

Group 1 – 8 can set different frequency and time, cyclic

Vibration waveform

Sine wave (half wave / full wave)

Time control

Adjustable, unit: seconds

Output

To connect U Flash Dish for output curve graph

Power

220V; 50Hz; 0.75KW

Test Method

the frequency of 10-55Hz, the amplitude of 0.35mm, each direction of the frequency sweep cycle for 10 times. After testing the electrical performance OK
