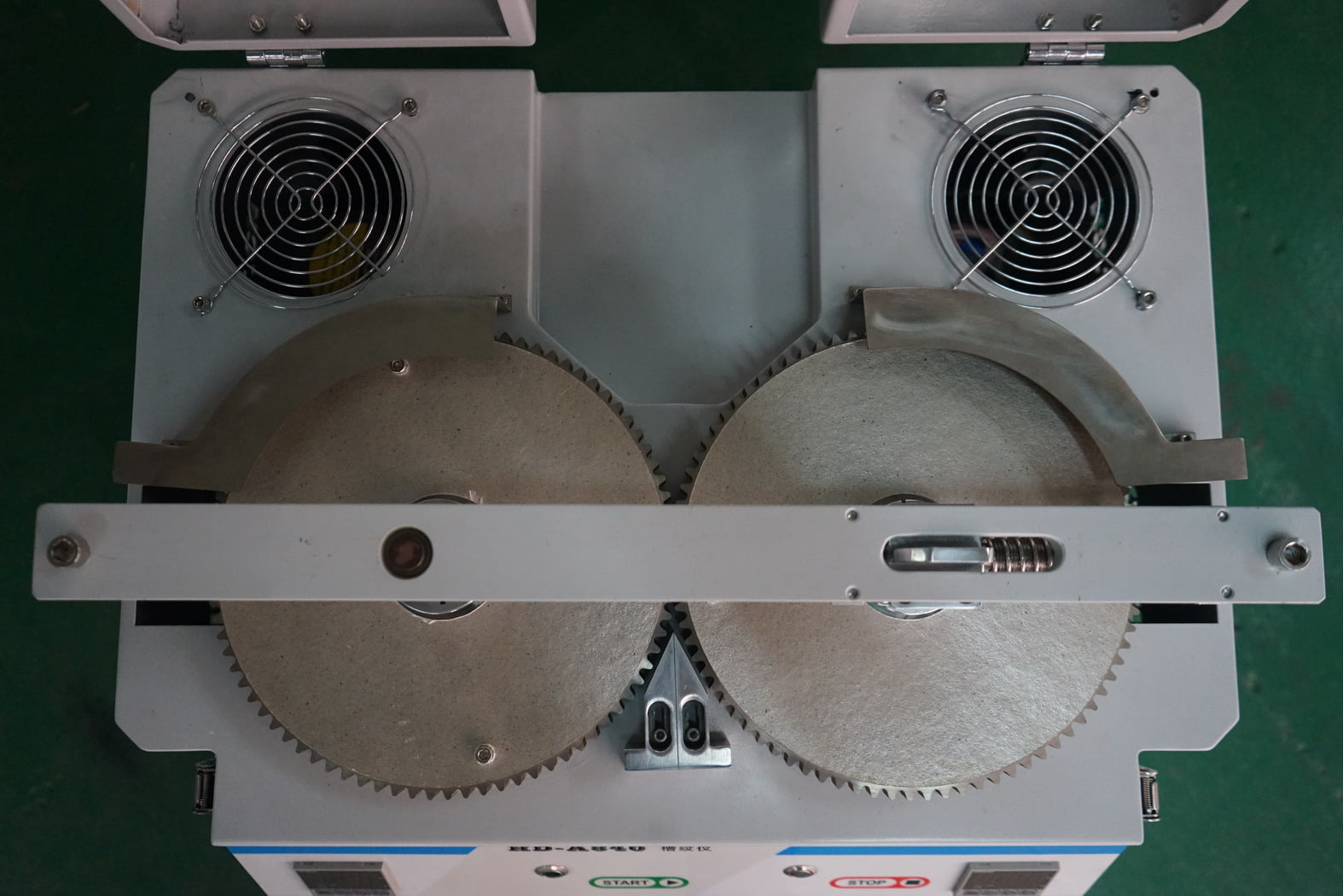

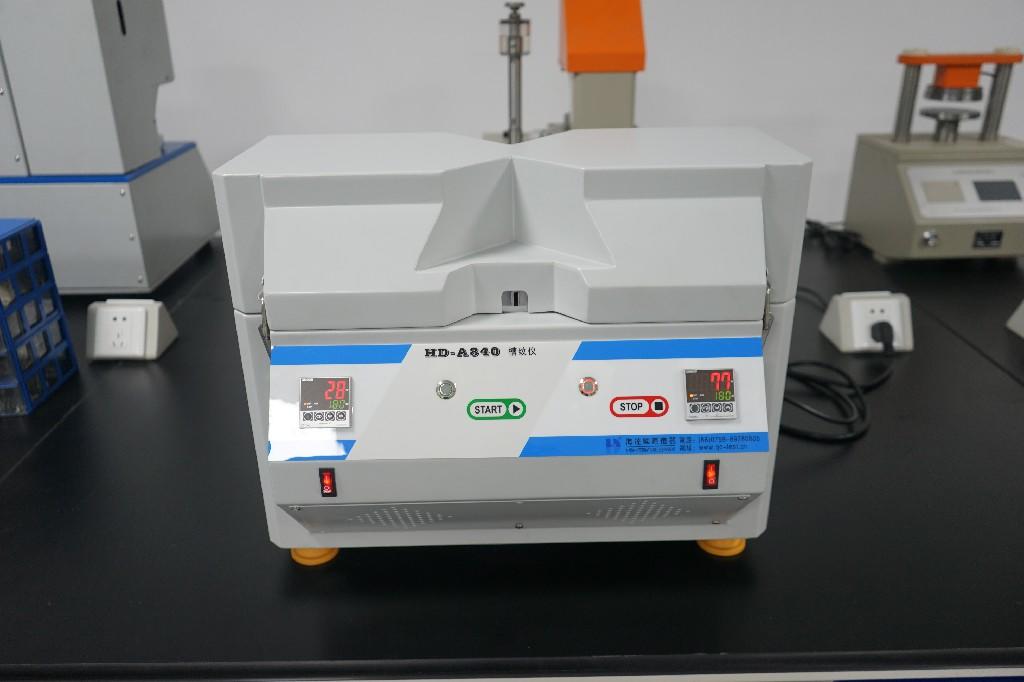

Digital Vertical Fluter
Product description
Digital Vertical Fluter is used to make sample for CMT for testing flat crush strength and vertical crush strength of corrugating medium.
Description
Designed standard
ISO 7263,QB/T 1061,TAPPI T809
Product parameter
| Speed | 4.5r/min |
| Temperature Resolution | 1°C |
| Temperature Range | Room temperature-200°C |
| Work Pressure | (49～108)N |
| Standard Work Temperature | 175°C |
| Spring Tension | 100N |
| Dimension | 560mm*500mm*450mm |
| Power | Single phase, AC 220V±22V,50Hz |
Test Specimen
In standard atmospheric conditions processing to an equilibrium state and then incised take samples in the same atmospheric conditions.Sample width 12.7 mm and 0.1 mm 152 m m m and 0.5 m long, vertical long side for the sample. The number of sample should guarantee can take 10 data effectively.
